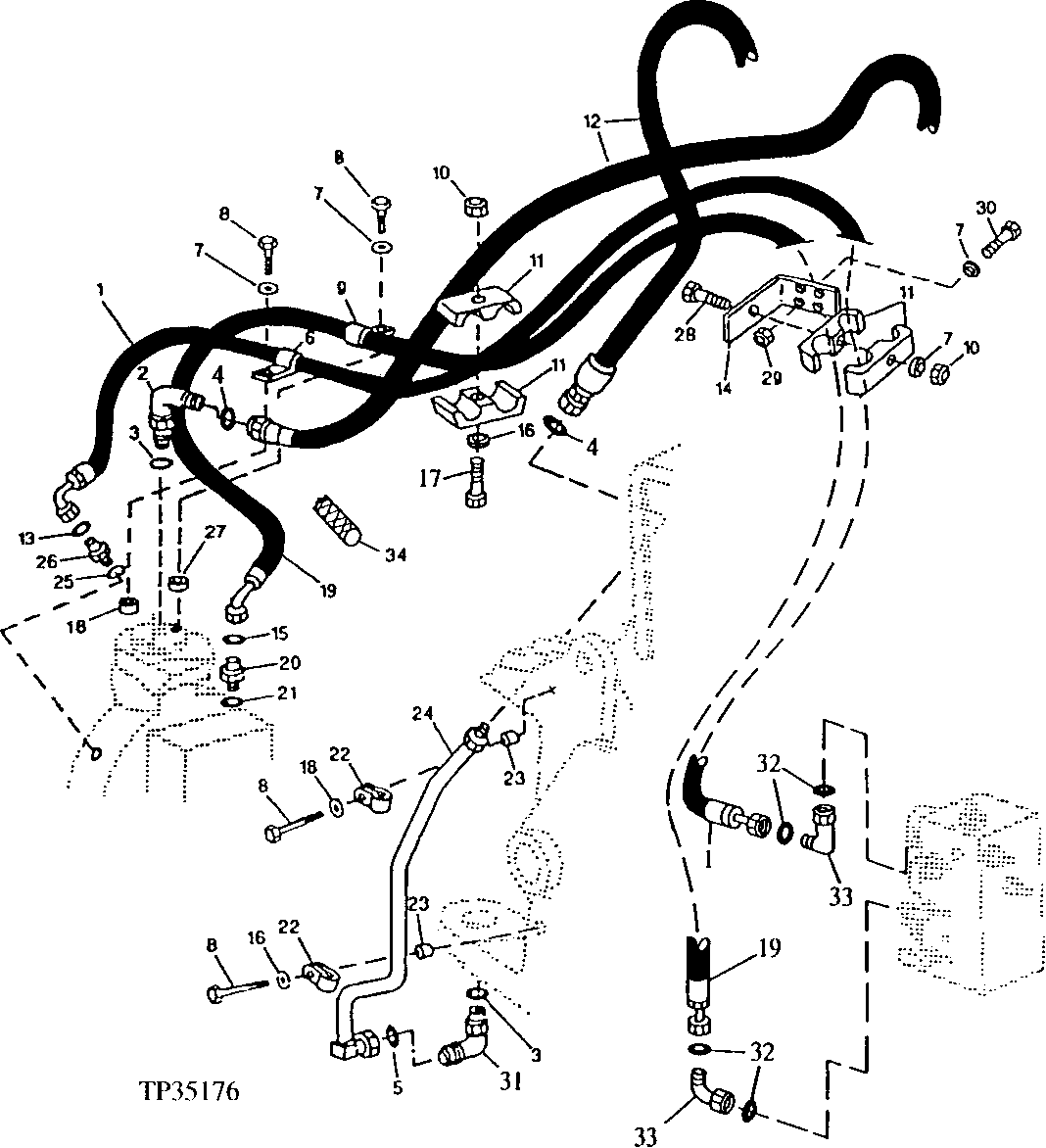

RIGHT FRONT WHEEL DRIVE HYDRAULICS (543490 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT169867	1	Hydraulic Hose	17.4752" X 1489 mm (58-3/4") X 17.4752", (ALSO ORDER 38H1010 ) (SUB FOR AT165501)
2	38H1013	1	Elbow Fitting	-
3	U12547	2	O-Ring	-
4	T77857	2	O-Ring	-
5	T77858	1	O-Ring	-
6	N191985	1	Clip	-
7	24H1305	5	Washer	13/32" X 13/16" X 0.065"
8	19H1765	4	Cap Screw	3/8" X 1-3/4"
9	T38377	1	Clamp	(SUB FOR T107352, THIS APPLICATION)
10	T11234	2	Lock Nut	-
11	T188666	4	Hose Clamp	(SUB FOR T82835)
12	AT165490	2	Hydraulic Hose	13/16" X 1828 mm (72") X 13/16"
13	T77613	2	O-Ring	-
14	T140823	1	Angle	(SUB FOR AT107116)
15	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
16	24H1305	2	Washer	13/32" X 13/16" X 0.065"
17	19H3404	1	Cap Screw	3/8" X 4"
18	28H3389	2	Spacer	0.423" X 0.675" X 1"
19	AT169866	1	Hydraulic Hose	9/16" X 1500 mm (59") X 9/16", (SUB FOR AT85084)
20	38H1167	1	Adapter Fitting	-
21	R26286	1	O-Ring	-
22	T67477	2	Clamp	-
23	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
24	AT165488	1	Oil Line	-
25	R26375	1	O-Ring	-
26	38H1171	1	Adapter Fitting	-
27	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
28	19H1726	1	Cap Screw	3/8" X 2-1/4"
29	14H1076	2	Nut	3/8"
30	19H3065	2	Cap Screw	3/8" X 2"
31	38H1007	1	Elbow Fitting	-
32	T77814	4	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
33	38H1093	2	Elbow Fitting	-
34	T103907	1	Cover	-

RIGHT FRONT WHEEL DRIVE HYDRAULICS (543490 - )
