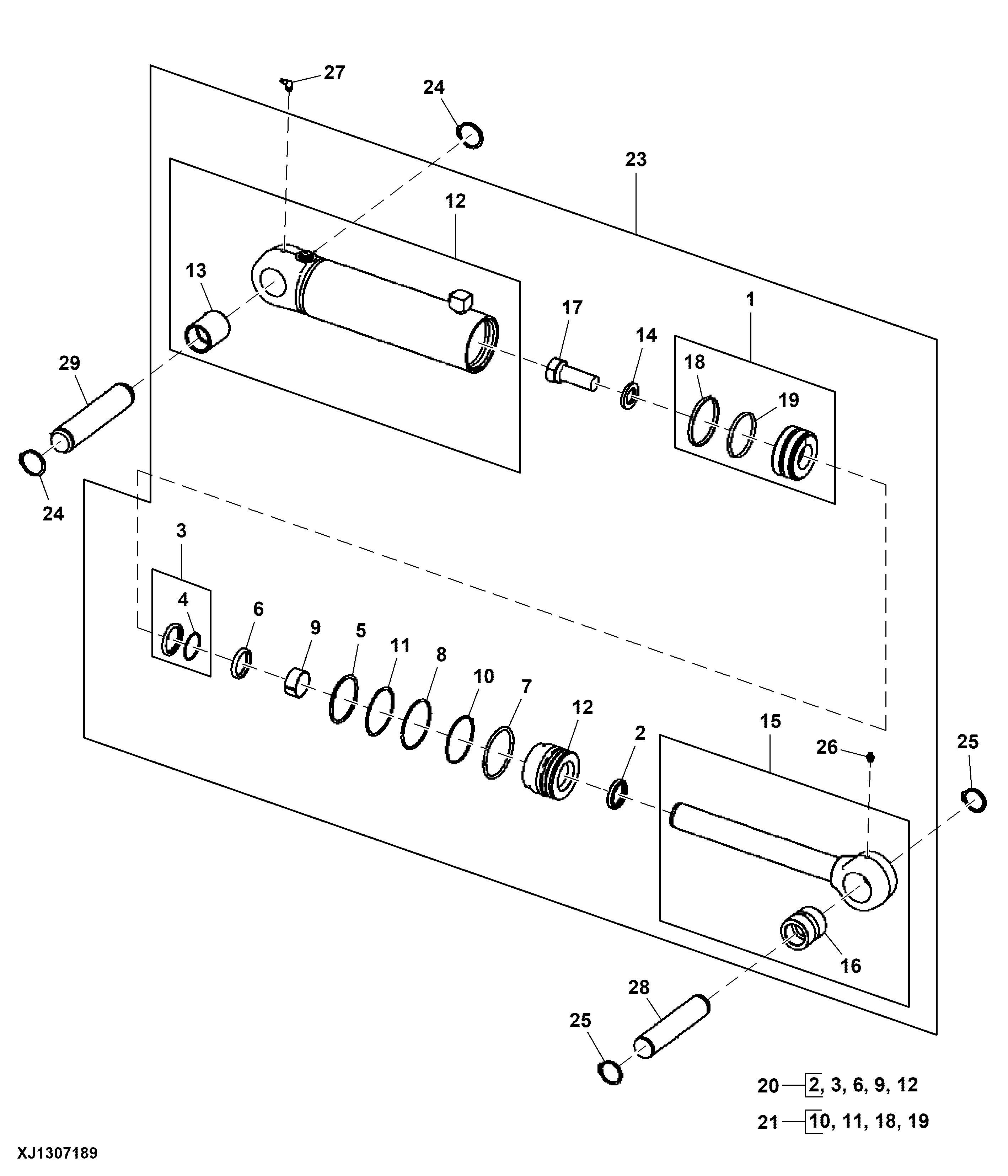

REPLACEMENT REPLACEMENT BLADE TILT CYLINDER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	HC16381	1	Piston	Two Piece Piston, ALSO ORDER R81775 AND AHC17350
1	AH205062	1	Piston	Four Piece Piston
1	AHC17350	1	Seal	USE WITH HC16381
1	R81775	1	Wear Ring	USE WITH HC16381
2	AH146557	1	Seal	-
3	AH146561	1	Seal	-
4	H208995	1	Hydr. Cylinder Rod Guide	-
5	F950R	1	O-Ring	-
6	H152203	1	Seal	-
7	H180080	1	Snap Ring	-
8	H180094	1	Snap Ring	-
9	H208987	1	Wear Ring	-
10	-	1	Part 13	(SUB AH212102)
11	R81862	1	Back-Up Ring	-
12	-	1	Part 15	(AH212812 NLA) (ORDER AH212811)
13	R81968	1	Bushing	-
14	H145175	1	Washer	-
15	RE28364	1	Hydraulic Cylinder Rod	-
16	R82960	1	Bushing	-
17	19M8353	1	Cap Screw	M30 X 80
18	H168248	1	Washer	-
19	H168249	1	Washer	-
20	AHC16954	1	Hydraulic Cylinder Kit	Rod Seal, SUB FOR AH210484
20	AHC10164	1	Seal	-
20	H152794	1	Wear Ring	-
21	AHC17350	1	Seal	-
21	R81775	1	Wear Ring	-
21	R91731	1	Ring	-
21	R83577	1	O-Ring	-
21	AHC22109	1	Hydraulic Cylinder Kit	Bore Seal, SUB FOR AH212102
22	H154856	1	Wear Ring	Wiper Installation Tool Not Illustrated
23	AH212811	1	Hydraulic Cylinder	-
24	40M7166	2	Snap Ring	-
25	40M7180	2	Snap Ring	-
26	JD7798	1	Lubrication Fitting	-
27	JD7799	1	Lubrication Fitting	-
28	T70421	1	Pin Fastener	-
29	T77067	1	Pin Fastener	-

REPLACEMENT REPLACEMENT BLADE TILT CYLINDER
