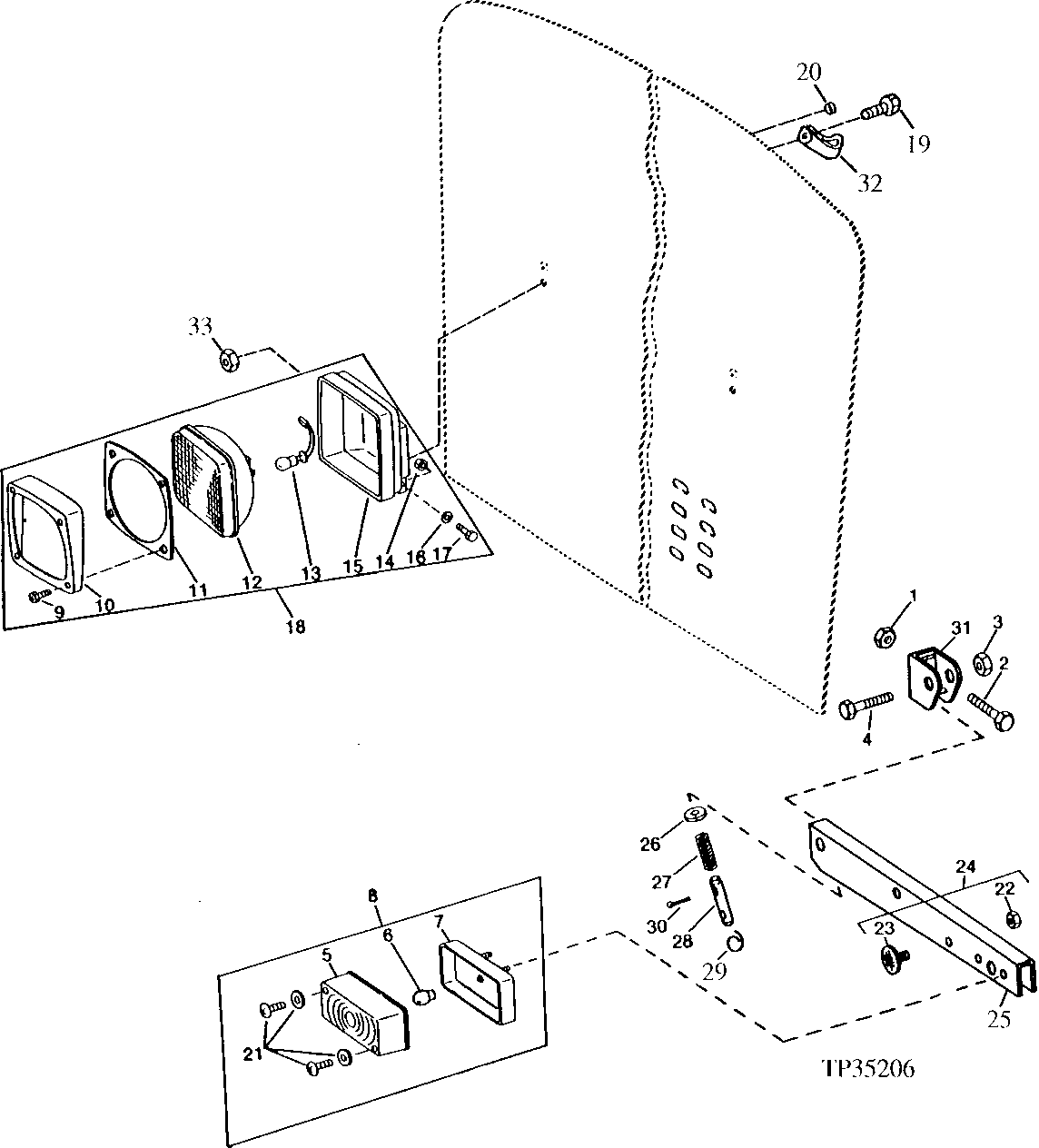

Rear Work Light, Turn Signal, Tail Light And Brake Light (EEC Light Package) (547612 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T11234	4	Lock Nut	-
2	19H3239	4	Cap Screw	3/8" X 1-1/4"
3	BP12214	2	Lock Nut	-
4	19H3057	2	Cap Screw	1/2" X 2-3/4", HS, SAE 8, 1/2" X 2-3/4"
5	-	2	Part 5	(SUB AT73569)
6	57M7181	2	Bulb	(SUB FOR U41373)
6	57M7022	2	Bulb	(SUB FOR U41373)TURN SIGNAL LIGHT (REGION II ALTERNATE 57M7022)
7	-	2	Part 8	(SUB AT133222)
8	AT73569	2	Tail Lamp	TURN SIGNAL, TAIL AND BRAKE LIGHT
9	T80394	8	Screw	-
10	-	2	Part 11	(SUB AT141789)
11	T80393	2	Gasket	-
12	-	2	Part 13	(SUB AT141789)
13	AT135758	2	Bulb	(SUB FOR 57M7127)
14	AT135758	2	Bulb	-
15	-	2	Part 16	(SUB AT105823)
16	24M7032	2	Washer	31 X 45 X 5 mm
17	19M7378	2	Cap Screw	M8 X 45
18	AT141789	2	Floodlamp	HALOGEN WORK LIGHT, (SUB FOR AT105823)
19	T34037	2	Screw	9.525 X 15.748 mm (3/8" X 0.620")
20	R40445	2	Grommet	-
21	-	4	Part 22	(SUB AT73569)
22	-	2	Part 23	(SUB L39871)
23	-	2	Part 24	(SUB L39871)
24	L39871	2	Reflector	(SUB FOR 99M6488)
25	AT112537	2	Arm	-
26	24H1340	2	Washer	33/64" X 7/8" X 0.075", (SUB FOR 24H1018)
27	T26072	2	SPRING	-
28	-	2	Part 29	( CD13839 NO LONGER AVAILABLE)
29	R83142	2	SNAP RING	-
30	11M7059	2	Cotter Pin	3.200 X 20 mm
31	-	2	Part 32	( DD11922 NO LONGER AVAILABLE)
32	T74412	2	Clamp	-
33	14H812	2	NUT	3/8"

Rear Work Light, Turn Signal, Tail Light And Brake Light (EEC Light Package) (547612 - )
