Открытый узел

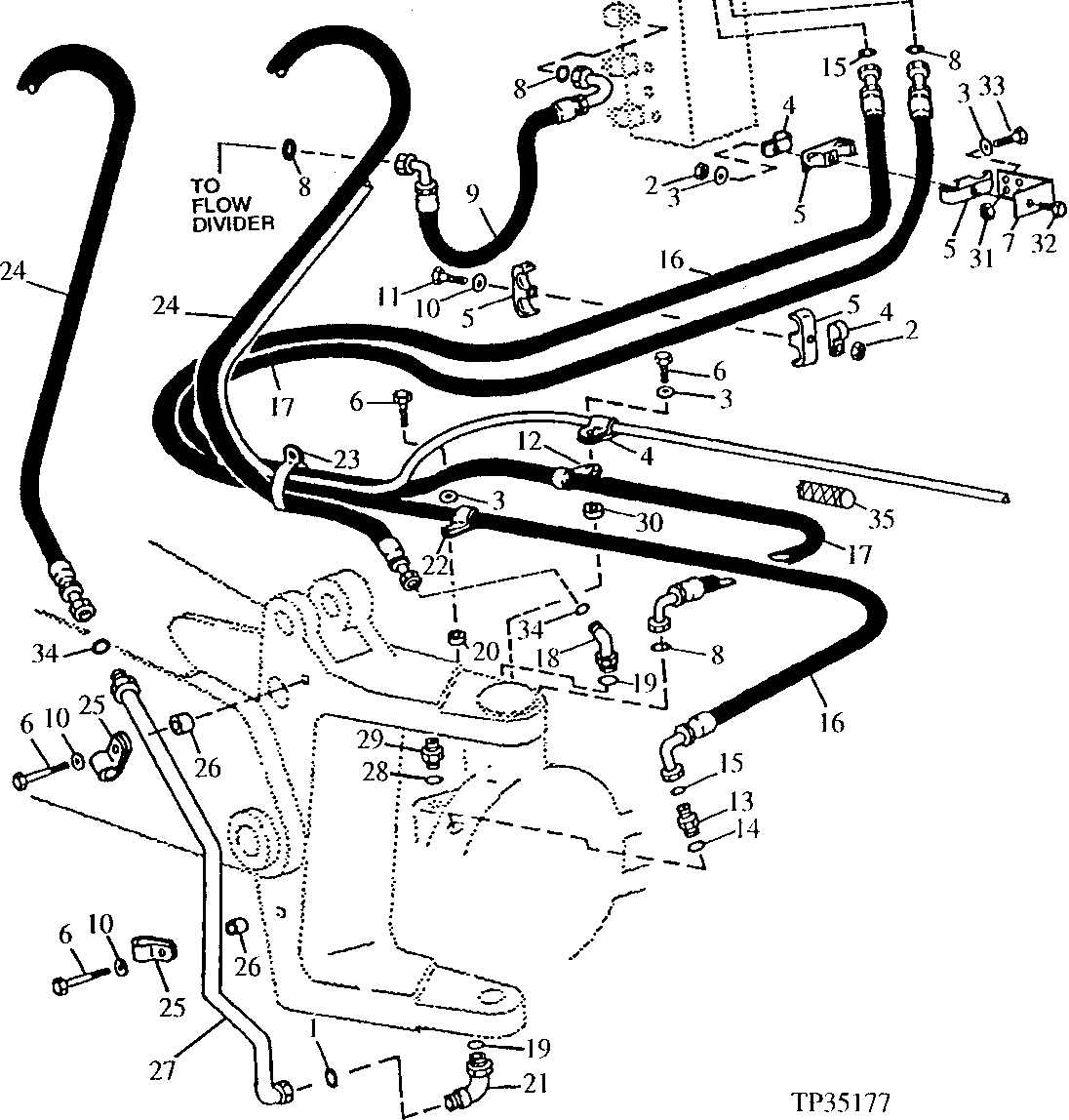

LEFT FRONT WHEEL DRIVE HYDRAULICS (543490 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
2	T11234	2	Lock Nut	9.525 mm (3/8")
3	24H1305	5	Washer	13/32" X 13/16" X 0.065"
4	T74410	3	Clamp	(SUB FOR T14264, THIS APPLICATION)
5	T188666	4	Hose Clamp	(SUB FOR T82835)
6	19H1765	4	Cap Screw	3/8" X 1-3/4"
7	T140823	1	Angle	(SUB FOR AT107117)
8	T77814	2	O-Ring	-
9	AT160215	1	Hydraulic Hose	9/16" X 825 mm (32-1/2") X 9/16", (SUB FOR AT85347)
10	24H1305	3	Washer	13/32" X 13/16" X 0.065"
11	19H3404	1	Cap Screw	3/8" X 4"
12	T38377	1	Clamp	(SUB FOR T107352, THIS APPLICATION)
13	38H1171	2	Adapter Fitting	-
14	R26375	1	O-Ring	-
15	T77613	2	O-Ring	-
16	AT169867	1	Hydraulic Hose	17.4752" X 1489 mm (58-3/4") X 17.4752", (ALSO ORDER 38H1010 ) (SUB FOR AT165501)
17	AT169865	1	Hydraulic Hose	9/16" X 1640 mm (64-1/2") X 9/16", NLA, (SUB FOR AT85084)
18	38H1013	1	Elbow Fitting	-
19	U12547	2	O-Ring	-
20	28H3389	1	Spacer	0.423" X 0.675" X 1"
21	38H1007	1	Elbow Fitting	-
22	N191985	1	Clip	-
23	R44302	3	Tie Band	-
24	AT165490	2	Hydraulic Hose	13/16" X 1828 mm (72") X 13/16"
25	T67477	2	Clamp	-
26	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
27	AT165489	1	Oil Line	-
28	R26286	1	O-Ring	-
29	38H1167	1	Adapter Fitting	-
30	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
31	14H1076	2	Nut	3/8"
32	19H1726	1	Cap Screw	3/8" X 2-1/4"
33	19H3065	2	Cap Screw	3/8" X 2"
34	T77857	2	O-Ring	-
35	T103097	1	Cap	-

LEFT FRONT WHEEL DRIVE HYDRAULICS (543490 - )

Нет текстового описания
