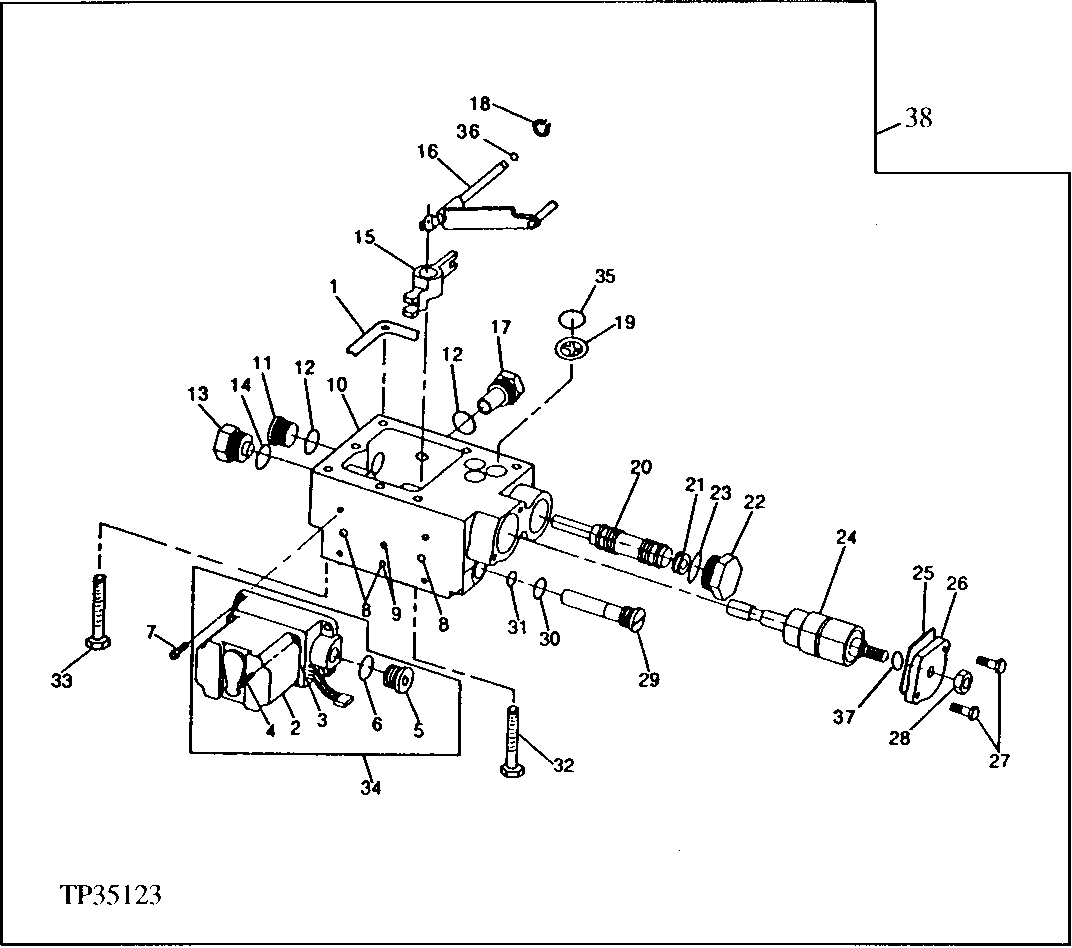

FRONT WHEEL DRIVE DISPLACEMENT CONTROL VALVE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H214561	1	Gasket	SUB FOR H63222, SUB FOR T107156
2	-	1	Part 2	SUB AT309927, KIT WHICH INCLUDES AT309937, AT309938, AND AT309939, SUB FOR AT107390
2	AT309927	1	Kit	Not Illustrated, INCLUDES AT309937, AT309938 AND AT309939
2	AT309937	1	Cover	REPLACEMENT COVER WITH GASKET SEAL
3	T107143	1	Gasket	FOR OLDER COVER, IF REPLACING COVER ORDER NEW KIT
3	AT309938	1	O-Ring	CONNECTOR SEAL FOR REPLACEMENT COVER
4	T107144	4	Screw	FOR OLDER COVER, IF REPLACING COVER ORDER NEW KIT
4	AT309939	4	Screw	FOR REPLACEMENT COVER
5	AT112230	2	Fitting Plug	-
6	T70177	2	O-Ring	-
7	19H3388	4	Screw	0.190" X 0.620"
8	R56756	3	O-RING	-
9	T81686	2	O-Ring	-
10	-	1	Part 14	SUB AT107388 OR AT107389
11	AT112025	1	Drain Plug	-
11	AT112025	1	Drain Plug	-
12	R47150	2	O-Ring	-
13	T107152	1	Fitting Plug	-
14	R47151	1	O-Ring	-
15	T107155	1	Link	-
16	AT112010	1	Link	STANDARD SPEED HFWD
16	AT112011	1	Link	HIGH SPEED HFWD
17	T107153	1	Bushing	-
18	T107154	1	Snap Ring	-
19	T107250	3	Screen	-
20	T107479	1	Valve Spool	-
21	T107478	1	Spring	-
22	T107151	1	Drain Plug	-
23	R56751	1	O-Ring	-
24	-	1	Part 30	AT112233 USE IF AVAILABLE
25	T107148	1	Gasket	-
26	T107149	1	Cover	-
27	19H1948	2	Cap Screw	1/4" X 3/4"
28	T19087	1	NUT	-
29	AT107391	1	Filter	-
30	R33259	1	O-Ring	-
31	A3917R	1	O-Ring	-
32	19H2151	2	Cap Screw	1/4" X 3"
33	19H2333	5	Cap Screw	1/4" X 2-1/4"
34	AT112006	1	Control	NLA
35	H81608	3	O-Ring	-
36	T76457	1	O-RING	6.020 X 2.616 mm (0.237" X 0.103")
37	U11326	1	O-Ring	28.296 X 1.778 mm (1.114" X 0.070")
38	AT107388	1	Control	STANDARD SPEED HFWD
38	AT107389	1	Control	HIGH SPEED HFWD

FRONT WHEEL DRIVE DISPLACEMENT CONTROL VALVE
