Открытый узел

FRONT MOUNTED WEIGHT

FRONT MOUNTED WEIGHT

FRONT MOUNTED WEIGHT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

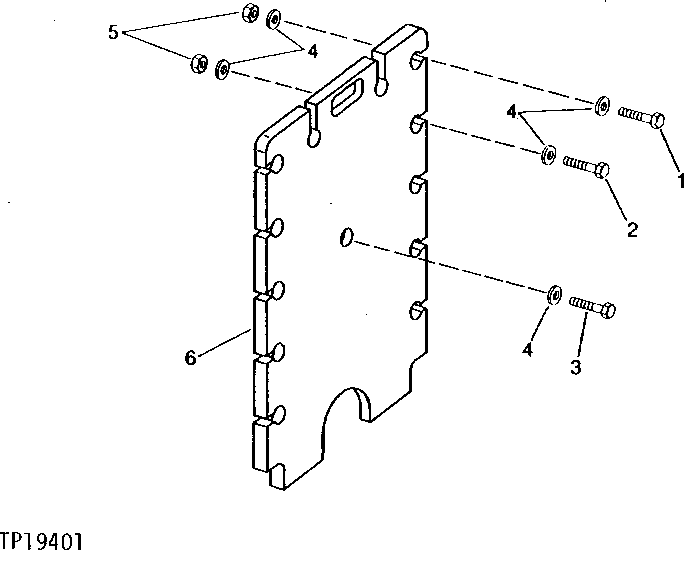

FRONT MOUNTED WEIGHT

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1988	2	Cap Screw	3/4" X 6", (WITH FRONT MOUNTED EQUIPMENT)
1	19H2826	2	Cap Screw	3/4" X 4-1/2", (SUB FOR 19H3105, THIS APPLICATION)(WITH FRONT MOUNTED EQUIPMENT)
2	19H1988	10	Cap Screw	3/4" X 6", (WITHOUT FRONT MOUNTED EQUIPMENT)
2	19H3105	10	Cap Screw	3/4" X 5", (WITH FRONT MOUNTED EQUIPMENT)
2	19H3740	10	Cap Screw	3/4" X 7-1/2", (SUB FOR 19H3406, THIS APPLICATION)(WITH FRONT MOUNTED EQUIPMENT)
3	19H3415	3	Cap Screw	3/4" X 5-1/2", (WITH FRONT MOUNTED EQUIPMENT)
4	T83426	8	Washer	20.900 X 35.400 X 7.090 mm (0.823" X 1.394" X 0.279"), (SUB FOR T17776)(WITHOUT FRONT MOUNTED EQUIPMENT)
4	T83426	24	Washer	20.900 X 35.400 X 7.090 mm (0.823" X 1.394" X 0.279"), (SUB FOR T17776)(WITH FRONT MOUNTED EQUIPMENT)
4	T83426	7	Washer	20.900 X 35.400 X 7.090 mm (0.823" X 1.394" X 0.279"), (SUB FOR T17776) (WITH FRONT MOUNTED EQUIPMENT)(TOP, OUTSIDE HOLES)(USE ON (2) 19H3307 CAP SCREWS IN KEY NO. 1)
5	14H1058	10	Nut	3/4", (WITHOUT FRONT MOUNTED EQUIPMENT)
5	14H1058	12	Nut	3/4", (WITH FRONT MOUNTED EQUIPMENT)
6	T103590	1	Plate	-
