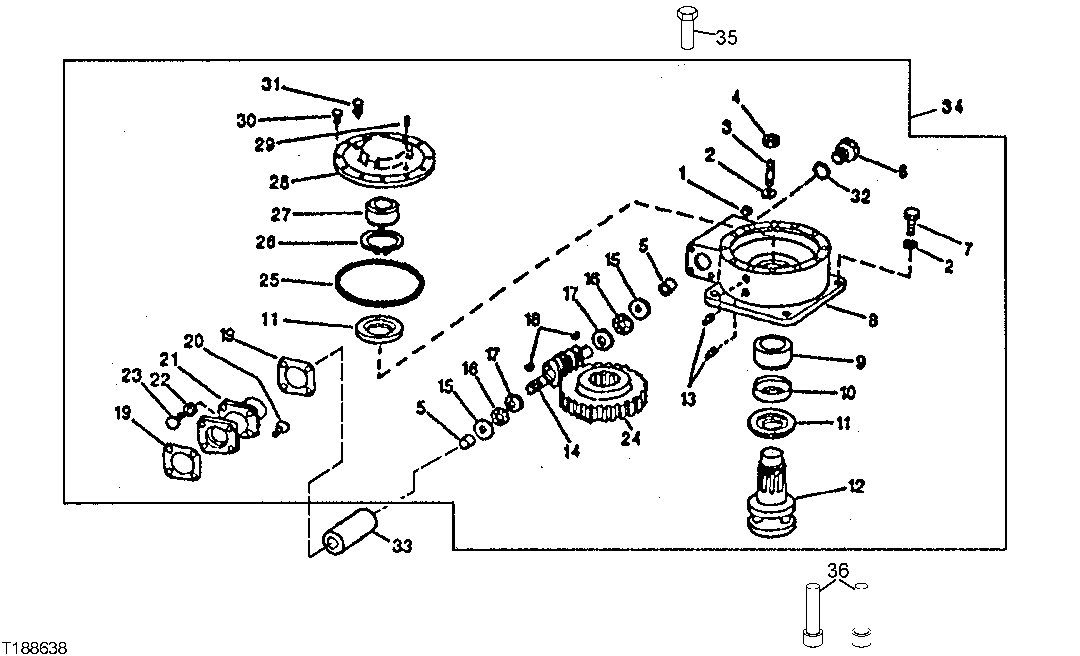

CIRCLE DRIVE GEARBOX (546090 - 548182)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1040	2	Nut	1/2"
2	T10510	4	Washer	-
3	T20756	2	STUD	-
4	14H1058	2	Nut	3/4", (SUB FOR 14H1058)
5	T45830	2	Bushing	-
6	15H584	1	Pipe Plug	1/2"
7	19H3158	2	Cap Screw	3/4" X 2"
8	-	1	Part 8	(SUB AT168179)
9	T129124	1	Bushing	-
10	AT195T	1	Seal	-
11	T130878	2	Thrust Washer	-
12	T124308	1	Shaft	-
13	15H604	2	Pipe Plug	1/4"
14	T150941	1	Worm Gear	-
15	T45829	2	Washer	-
16	T10201	2	Washer	-
17	T69423	2	Spacer	-
18	26H67	2	Shaft Key	1/8" X 3/8"
19	T43591	2	Gasket	(TRIM EXCESS FOR TWO BOLT APPLICATIONS)
20	19H3579	4	Cap Screw	1/2" X 1-3/8"
21	-	1	Part 21	( AT46871 NO LONGER AVAILABLE), (SUB AT168649)
22	12H301	2	Lock Washer	1/2"
23	19H2735	2	Cap Screw	1/2" X 2", HS, SAE 8, 1/2" X 2"
24	T130880	1	Worm Gear	-
25	R37287	1	O-Ring	-
26	T43595	1	Ring	-
27	T43589	1	Bushing	-
28	T124327	1	Cover	(CONVENIENCE ASSEMBLY)
29	15H584	1	Pipe Plug	1/2"
30	19H3483	12	Cap Screw	3/8" X 1-1/8"
31	E14814	1	Pressure Relief Fitting	-
32	R26773	1	O-Ring	-
33	T150942	1	Splined Coupling	-
34	-	1	Part 34	(SUB AT190539 ) (ALSO ORDER AT197057, T150942 AND (2) AT197699 ) (ALSO ORDER (15) T184082, (6) T163748, T154205 AND T154606)( AT168179 NO LONGER AVAILABLE FOR SERVICE)
35	19H2991	1	Cap Screw	3/4" X 2-1/4", (SUB FOR 19H1388, THIS APPLICATION)
36	19H3033	2	Screw	1/2" X 2"

CIRCLE DRIVE GEARBOX (546090 - 548182)
