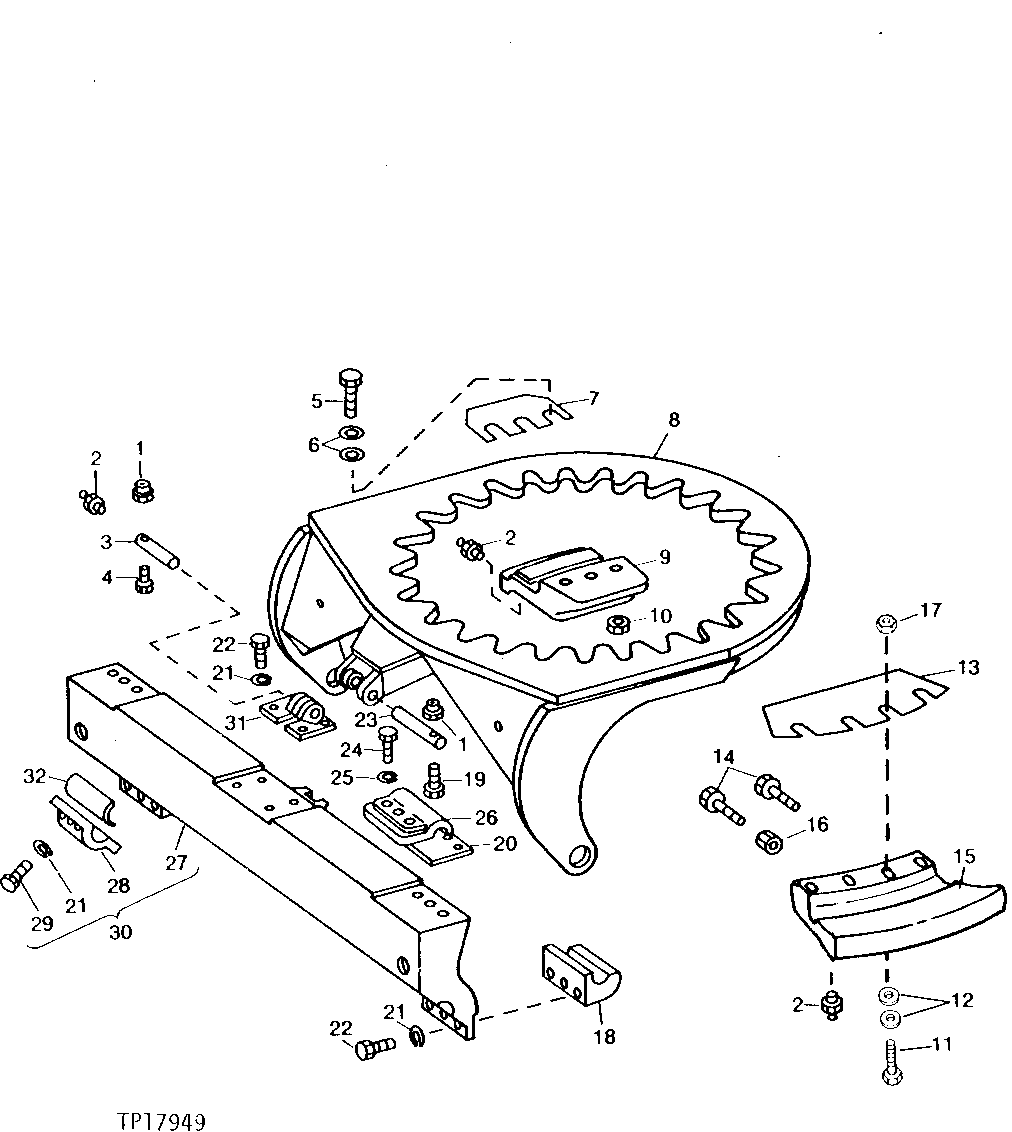

CIRCLE AND BLADE TILT FRAME ( - 530593)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	K40014	2	Lock Nut	-
2	T162396	1	Lubrication Fitting	(USE WITH AT90342 ) (SUB FOR JD7759 OR JD7798)
2	JD7778	4	Lubrication Fitting	(USE WITH T75132 AND T75133)
3	AT90342	1	PIN	(WITH GREASE FITTING), (SUB FOR T42628)
4	19H3550	1	Cap Screw	1/2" X 4"
5	19H2101	6	Cap Screw	1" X 6"
6	GLB118501	12	WASHER	(SUB FOR U11390)
7	T45717	1	Shim	0.91 MM (0.036")
7	T66930	1	SHIM	1.5 MM (.060")
8	AT105575	1	Circle	NLA
8	24H1613	2	WASHER	2-17/32" X 3-1/4" X 0.120", Not Illustrated
9	T75132	2	SUPPORT	FRONT
10	14H1048	6	Nut	1"
11	19H2012	8	Cap Screw	7/8" X 5-1/2"
12	GLB118501	8	WASHER	(SUB FOR U11390)
13	T56789	1	SHIM	0.91 MM (0.036")
13	T66931	1	SHIM	1.5 MM (.060")
14	19H2893	4	Cap Screw	3/4" X 3"
15	T75133	2	SUPPORT	REAR
16	14H793	4	Nut	3/4"
17	14H1077	8	Nut	7/8"
18	T42624	2	RETAINER	LOWER
19	19H1781	1	CAP SCREW	1/2" X 3-1/2"
20	T42625	1	STRAP	1.5 MM (.060")
20	T114925	1	Strap	(0.040")
21	12H236	22	Lock Washer	3/4"
22	19H1405	10	Cap Screw	3/4" X 2-1/2"
23	T42622	1	PIN	-
24	19H2090	6	CAP SCREW	7/8" X 3-1/2"
25	12H245	6	Lock Washer	7/8"
26	T42626	2	RETAINER	UPPER
27	-	1	Part 32	(SUB AT57687)
28	-	2	Part 33	( T124398 NO LONGER AVAILABLE), (SUB FOR T186705, THIS APPLICATION N0TE: MUST BE MACHINED.)
28	T186705	2	BEARING CAP	REPLACEMENT, (ALSO ORDER (AR) T166652)
28	T166652	1	Strap	(NOT ILLUSTRATED) (APPROX. 10 REQUIRED) 1.0 MM (.04 INCH)
29	19H1425	12	CAP SCREW	3/4" X 2-3/4"
29	19H1425	8	CAP SCREW	3/4" X 2-3/4", REPLACEMENT
30	AT57687	1	FRAME	-
31	T60092	1	BRACKET	-
32	T45724	4	BEARING	-
