CAB FRESH AIR PRESSURIZER (537237 - 543489)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR21999	4	Hose Clamp	-
2	T119523	2	Hose	-
3	37H133	6	Screw	0.164" X 5/8"
4	AT158301	1	Louver	-
5	AT158290	1	Cover	-
6	28H2576	4	SPACER	0.423" X 0.675" X 1-1/2"
7	N220430	16	Screw	(SUB FOR N129890)
8	P40509	2	Grommet	(SUB FOR (2) T37625)
9	-	1	Part 9	-
10	-	1	Part 10	(MAKE FROM T59938 OR T63019 BULK MATERIAL, CUT TO LENGTH)
11	-	1	Part 11	UPPER BLOWER
12	-	8	Part 12	( M65199 NLA)
13	-	1	Part 13	LOWER BLOWER
14	-	1	Part 14	-
15	12H331	1	LOCK WASHER	3/8", BETWEEN BLOWER GROUND WIRE AND CAB
16	24M7096	2	Washer	10.500 X 18 X 1.600 mm
17	14H812	2	NUT	3/8"
18	AT158291	1	Blower	(NO LONGER AVAILABLE)
19	-	1	Part 19	(MAKE FROM T66419 BULK MATERIAL, CUT TO LENGTH)
20	N10217	1	Lock Nut	-
21	AT157961	1	Air Cleaner	PRE-CLEANER
22	AR21839	2	Clamp	-
23	N14820	3	SELF-LOCKING SCREW	-
24	M40333	4	Lock Nut	-
25	T119791	1	Striker	-
26	AT158286	1	Housing	-
27	AT141209	1	Air Filter	-
28	AT158288	1	Cover	-
29	AT136291	1	Latch	-
30	19H2664	2	Cap Screw	5/16" X 3/4"
31	AT142995	1	Flange	-
32	T16464	2	Lock Nut	(SUB FOR H23834)
33	T145959	1	Hose	(SUB FOR T133405)
34	-	1	Part 34	(USE 1.50 INCHES OF T133405 HOSE) (REQUIRED WITH FRONT WHEEL DRIVE)
35	AR21839	2	Clamp	(REQUIRED WITH FRONT WHEEL DRIVE)
36	T148936	1	Pipe Elbow	(REQUIRED WITH FRONT WHEEL DRIVE)

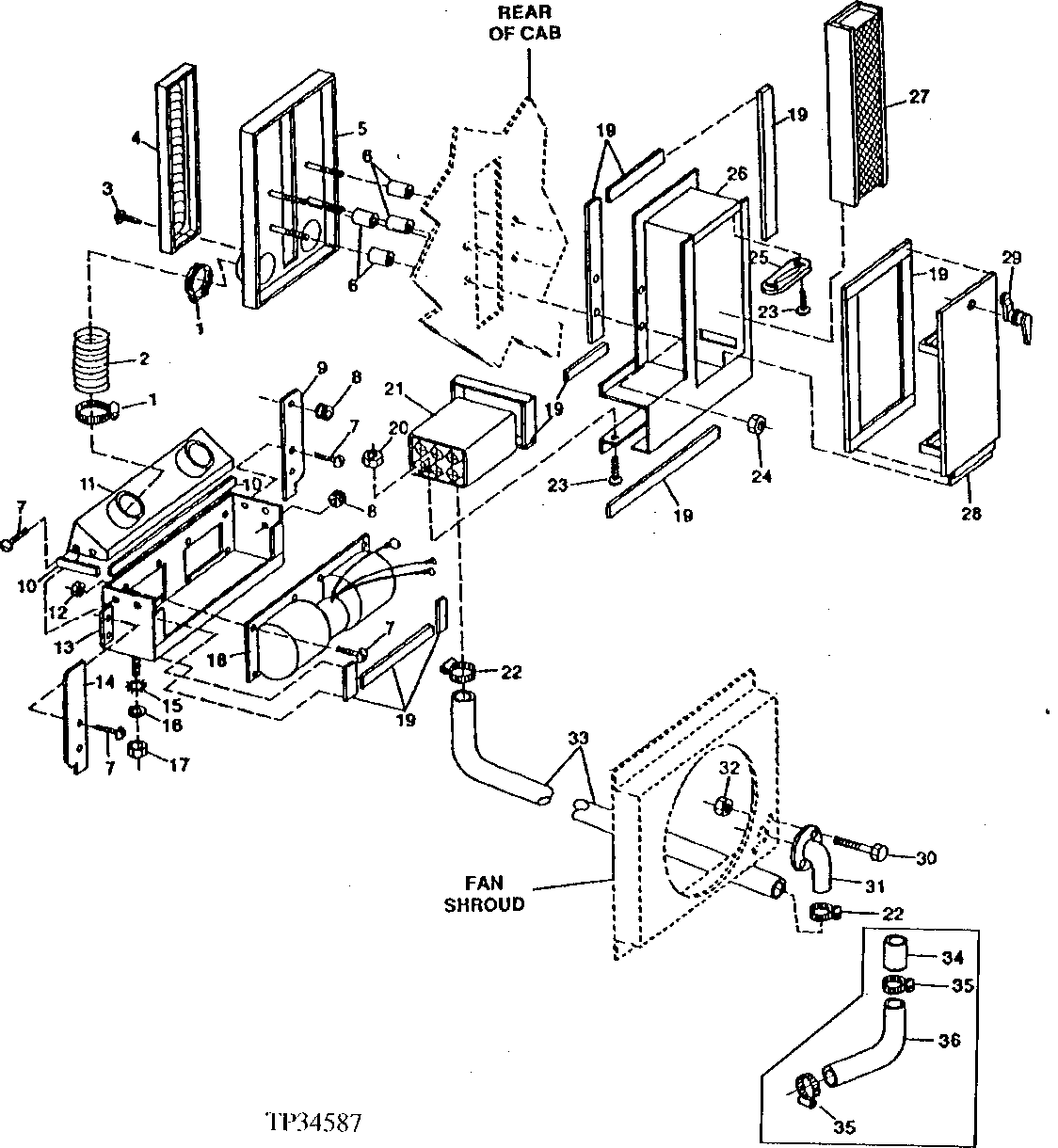

CAB FRESH AIR PRESSURIZER (537237 - 543489)

Нет текстового описания
