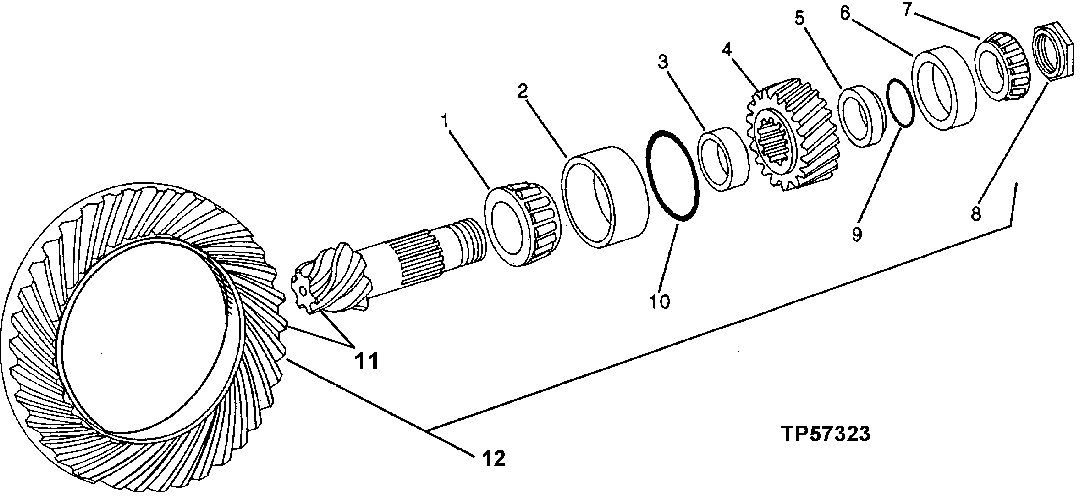

TRANSMISSION DIFFERENTIAL DRIVE (WITHOUT DIFFERENTIAL HOUSING) [01B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD9056	1	Bearing Cone	-
2	JD8280	1	Bearing Cup	-
3	R38178	1	BUSHING	-
4	R81547	1	GEAR	(SUB FOR R58435)
5	R81482	1	WASHER	(SUB FOR R56308, THIS APPLICATION)
6	JD9145	1	BEARING CUP	-
7	JD8195	1	Bearing Cone	-
8	R51200	1	Lock Nut	-
9	R81483	1	SHIM	(SUB FOR R56308, THIS APPLICATION) .18 MM (.007") (SUB FOR R51198, THIS APPLICATION)
9	R81486	1	SHIM	.38 MM (.015") (SUB FOR R51199, THIS APPLICATION)
9	R81485	1	SHIM	.30 MM (.012") (SUB FOR R51198, THIS APPLICATION)
9	R81484	1	SHIM	.25 MM, (SUB FOR R51197, THIS APPLICATION)
10	R35365	1	Shim	0.08 MM (.003")
10	R35366	1	Shim	.13 MM (.005")
10	R35367	1	Shim	.25 MM (.010")
11	AR44844	1	GEAR	RING AND PINION - MATCHED SET
12	-	1	Part 17	DIFFERENTIAL (WITH SPIRAL BEVEL GEAR (MARKED R41764) AND SHAFT (MARKED R41766) (MATCHED SET)) ( RE19827 NO LONGER AVAILABLE, ORDER COMPONENTS)

TRANSMISSION DIFFERENTIAL DRIVE (WITHOUT DIFFERENTIAL HOUSING) [01B18]
