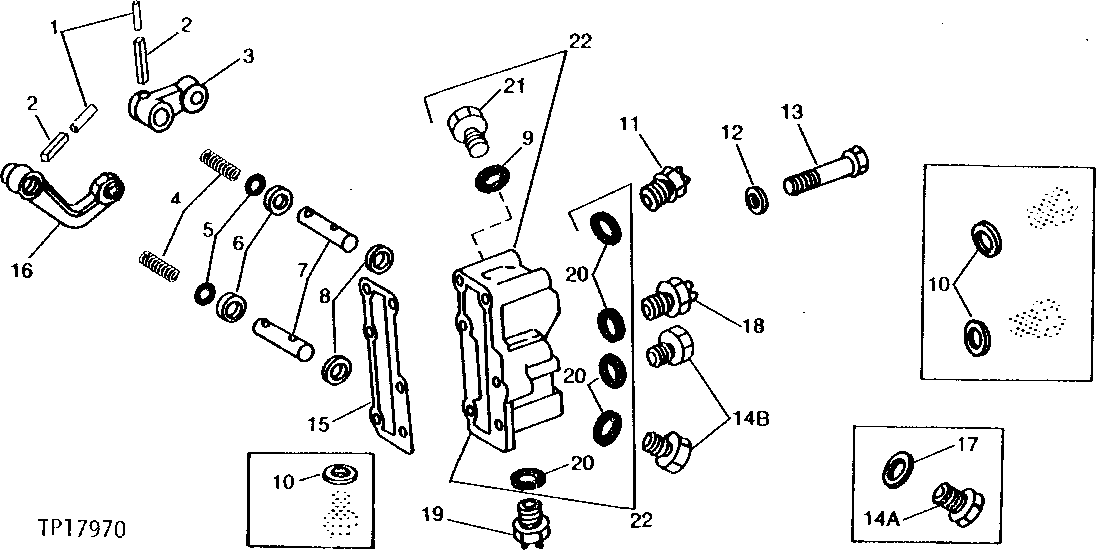

TRANSMISSION CONTROL VALVE COVER (672A) [01D24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H252	2	SPRING PIN	1/8" X 1-1/4", (SUB FOR R56505)
2	R56506	2	SPRING PIN	7/32" X 1-1/4"
3	R49817	1	LEVER	-
4	F3221R	2	SPRING	-
5	24H1359	2	Washer	5/8" X 7/8" X 0.060"
6	R36364	2	WASHER	-
7	R49819	2	PIN	-
8	AR103873	2	Seal	(SUB FOR R33587)
9	R26287	1	O-Ring	(A)
10	T16911	1	SHIM	(A) .38 MM (.15")
11	AT72620	1	SWITCH	SAFETY-START, (REVERSE CAM) (SUB FOR AT26795)
11	AT85152	1	Switch	(SUB FOR RE12411, THIS APPLICATION)
12	24M7096	6	Washer	0.413" X 0.709" X 0.063"
13	19H3445	1	Cap Screw	3/8" X 3-3/4"
13	19H2855	5	Cap Screw	3/8" X 3-1/4"
15	R33275	1	GASKET	-
16	R49816	1	LEVER	-
17	R51494	1	WASHER	(A) (SUB FOR R67899)
18	AT72620	1	SWITCH	HFWD (FORWARD CAM) (SUB FOR AT26795)
18	AT85152	1	Switch	HFWD, (SUB FOR RE12411, THIS APPLICATION)
19	AT72620	1	SWITCH	HFWD (1 TO 4 CAM) (SUB FOR AT26795)
19	AT85152	1	Switch	HFWD, (SUB FOR RE12411, THIS APPLICATION)
20	R26448	4	O-Ring	(A)
20	R26448	5	O-Ring	(A)
21	R27216	1	DRAIN PLUG	(A)
22	R82331	1	COVER	(DOES NOT INCLUDE PLUGS AND O-RINGS)
22	-	1	Part 31	(A) (WHEN RE21305 IS NO LONGER AVAILABLE, SUB R82331, R26287, (5) R26448, R27216 AND R27218)
22	AR95904	1	COVER	(A) (MARKED R72413) (SUB R82331, R26287, (5) R26448, R27216 AND R27218)
22	R42989	1	COVER	(A)
14A	R69532	1	FITTING PLUG	(A) (SUB FOR R27218, THIS APPLICATION)
14B	R27218	2	Fitting Plug	(A)
14B	R27218	1	Fitting Plug	(A)

TRANSMISSION CONTROL VALVE COVER (672A) [01D24]

Нет текстового описания
