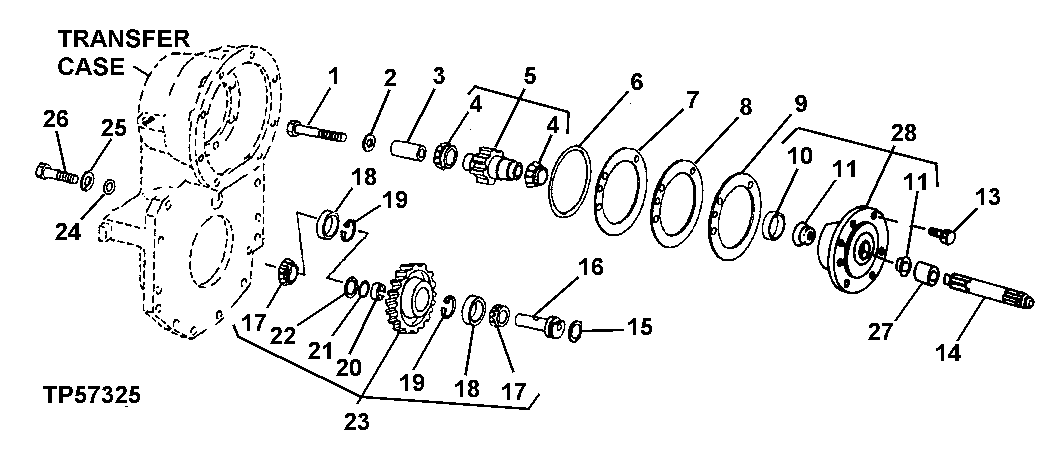

TRANSFER INPUT DRIVE AND IDLER GEAR ASSEMBLY [01I21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T33372	1	Bolt	(672A)
1	19H3031	1	Cap Screw	3/8" X 2-1/2", (670A)
2	24H1122	1	Washer	3/8" X 7/8" X 0.083"
3	T45254	1	BUSHING	(670A)
3	T55895	1	Washer	(672A)
4	JD8969	2	BEARING CONE	-
5	AT44084	1	GEAR	(MARKED T45246) (JD670-A)
5	AT53692	1	GEAR	(MARKED T55894) (JD672-A)
6	U42016	1	O-Ring	-
7	U42017	1	SHIM	0.13 MM (.005")
8	U42621	1	SHIM	0.08 MM (.003")
9	U42622	1	SHIM	0.25 MM (.010")
10	JD7418	1	Bearing Cup	-
11	AT58389	1	SEAL	-
12	T130870	1	SPACER	OIL DEFLECTOR
13	R63300	6	Self-Locking Screw	(SUB FOR R31198)
14	T148413	1	SHAFT	(SUB FOR T107316)
15	P50631	1	O-Ring	-
16	U42012	1	SHAFT	-
17	JD8182	2	Bearing Cone	-
18	JD8228	2	Bearing Cup	-
19	U42675	2	Snap Ring	-
20	U42003	1	SPACER	-
21	T41319	1	Shim	0.15 MM (.006")
22	U42004	1	Shim	0.10 MM (.004")
23	AT44085	1	GEAR	(MARKED T45247) UPPER
24	R26448	1	O-Ring	-
25	T20168	1	Washer	-
26	19H3544	1	Cap Screw	HS, SAE 8, 1/2" X 4-1/2"
27	T45251	1	BUSHING	(USE WITH COLD WEATHER DISCONNECT)
28	AT162246	1	BEARING HOUSING W/O BEARING	UPPER (USED ON UNITS WITHOUT DISCONNECT) (SUB FOR AT44088)
28	T45250	1	BEARING HOUSING W/O BEARING	UPPER (USED ON UNITS WITH DISCONNECT) (ALSO ORDER AT58389 AND JD7418)
