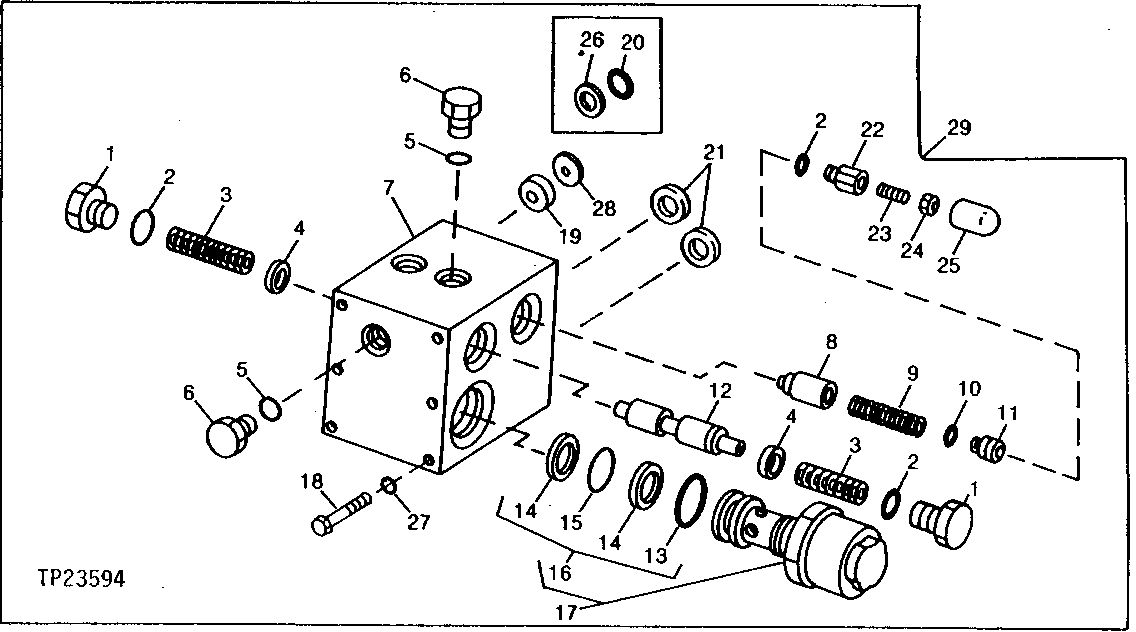

REPLACEMENT HFWD HIGH PRESSURE AND CHARGE RELIEF MANIFOLD (672A) [03E03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T54906	2	FITTING	-
2	R26906	3	O-Ring	-
3	H63285	2	COMPRESSION SPRING	-
4	H63287	2	WASHER	-
5	R28782	3	O-Ring	-
6	U44115	3	Fitting Plug	-
7	-	1	Part 7	(SUB AT107169 OR AT107170)
8	H89242	1	PISTON	-
9	AE50045	1	PORT PLATE	-
9	-	1	Part 9	( E76793 NO LONGER AVAILABLE) (SUB AE50045)
10	A3917R	1	O-Ring	(SUB FOR R65286)
11	E76760	1	PLUNGER	-
12	-	1	Part 13	(SUB AT107169 OR AT107170)
13	U17409	1	O-Ring	-
14	H63288	2	Ring	-
15	H63289	1	O-Ring	-
16	AH63292	1	SEAL KIT	SEAL RELIEF VALVE
17	-	2	Part 18	(STANDARD SPEED HFWD) ( AT112069 NO LONGER AVAILABLE) (SUB AT186402)
17	AT125671	2	KIT	(HIGH SPEED HFWD) (SUB FOR AT74522)
17	AT186402	2	KIT	(STANDARD SPEED HFWD) RELIEF VALVE SEAL/ADJUSTABLE
17	T54908	1	SOLID SHIM	(USE WITH AT112069) (NOT ILLUSTRATED)
18	19H1897	6	Cap Screw	5/16" X 3-3/4"
19	N195750	1	ORIFICE	(SUB FOR E76852)
20	-	1	Part 24	( R56396 NO LONGER REQUIRED THIS APPLICATION)
21	E76851	2	O-RING	-
22	-	1	Part 26	( E76761 NO LONGER AVAILABLE) (SUB AE50045)
22	AE50045	1	PORT PLATE	-
23	22H1075	1	SET SCREW	3/8" X 7/8"
24	T115283	1	Nut	(SUB FOR 14H774, THIS APPLICATION)
25	-	1	Part 30	(NOT AVAILABLE)
26	-	1	Part 31	( T59234 NO LONGER REQUIRED THIS APPLICATION)
27	24H1243	6	WASHER	11/32" X 5/8" X 1/16"
28	T115270	1	O-Ring	(ONE SUBS FOR BOTH R56396 AND T59234)
29	AT107169	1	MANIFOLD	(STANDARD SPEED HFWD)
29	AT107170	1	MANIFOLD	(HIGH SPEED HFWD)

REPLACEMENT HFWD HIGH PRESSURE AND CHARGE RELIEF MANIFOLD (672A) [03E03]
