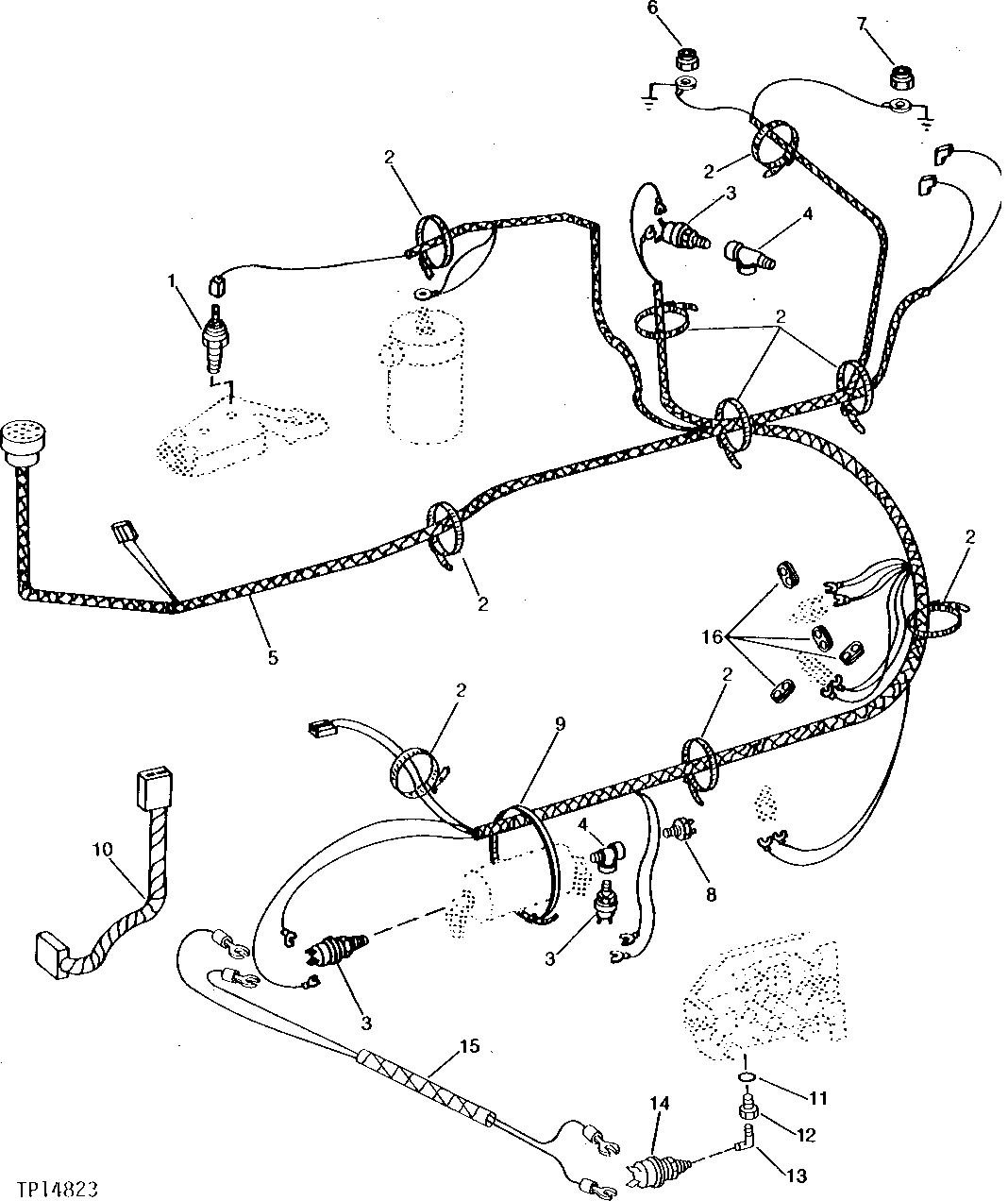

REAR CONTROL WIRING HARNESS WITH PRESSURE SWITCHES (672A) [02F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT85174	1	Switch	(SUB FOR AR27977) HYDRAULIC FOUR WHEEL DRIVE FILTER INDICATOR CHECK
2	R44302	1	Tie Band	-
3	AT53712	3	SWITCH	REAR CONTROL
3	AT85152	4	Switch	REAR CONTROL, (SUB FOR RE12411, THIS APPLICATION)
4	T19158	2	Tee Fitting	-
5	AT53723	1	WIRING HARNESS	-
5	AT81419	1	WIRING HARNESS	-
6	T11234	1	Lock Nut	-
7	T16464	1	Lock Nut	-
8	R32548	1	Pressure Switch	(REVERSE ALARM) (SUB AL67715 AND AT71012, THIS APPLICATION)
8	AL67715	1	Switch	(REVERSE ALARM) (SUB FOR AL27809)
9	H77698	1	Tie Band	(SUB FOR T44946)
10	AT55004	1	WIRING HARNESS	REVERSE WARNING ALARM
11	R26286	1	O-Ring	(HIGH SPEED HFWD)
12	T55951	1	Adapter Fitting	(HIGH SPEED HFWD)
13	T12938	1	Elbow Fitting	90° (HIGH SPEED HFWD)
14	AT53712	1	SWITCH	(HIGH SPEED HFWD) CLUTCH PRESSURE SWITCH
15	AT76032	1	WIRING HARNESS	(HIGH SPEED HFWD)
16	R78048	4	Elec. Connector Accessory	-

REAR CONTROL WIRING HARNESS WITH PRESSURE SWITCHES (672A) [02F18]

Нет текстового описания
