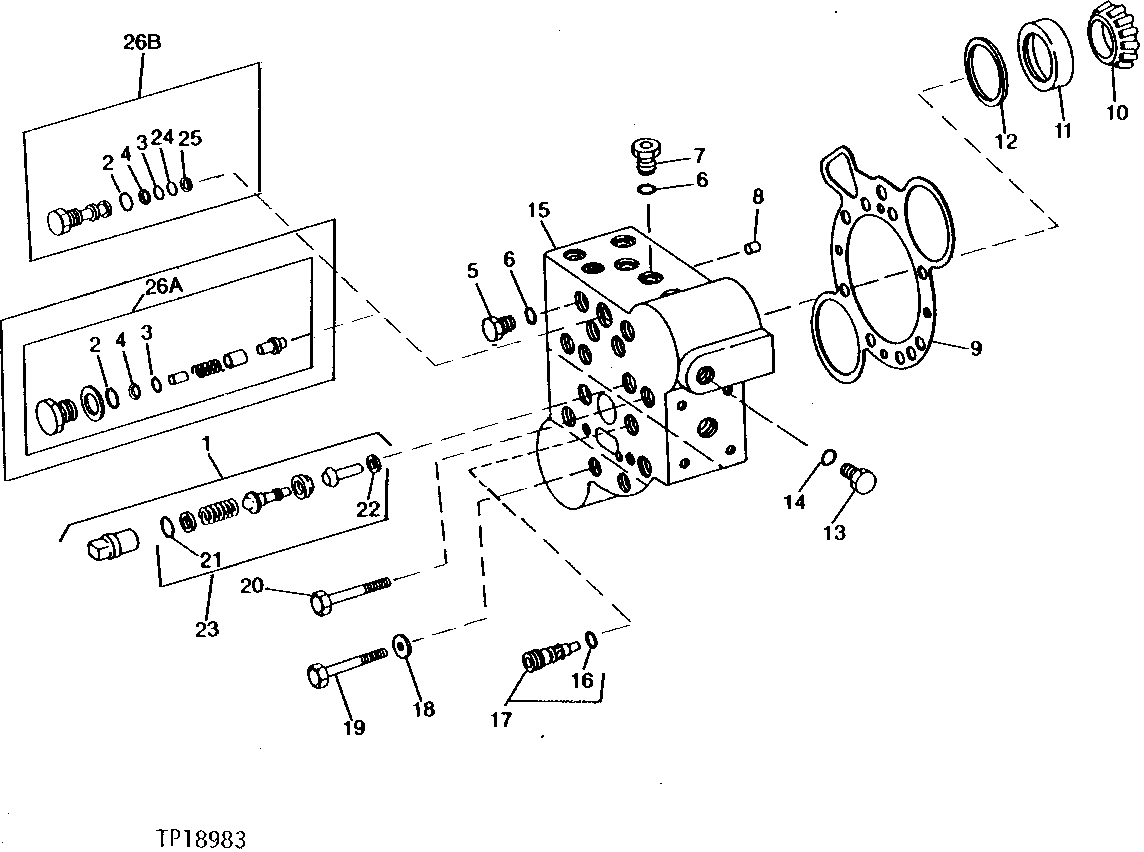

PUMP END CAP (USE WITH HIGH SPEED HFWD) (672A) [03F14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT78778	2	STOP	PRESSURE LIMITER CHECK
2	M45379	1	O-Ring	-
3	T40308	1	O-Ring	-
4	R42926	1	Back-Up Ring	-
5	R51031	2	Fitting	-
6	R28782	8	O-Ring	-
7	X05HP-4	6	Fitting Plug	(SUB FOR T54904) SOCKET HEAD
8	15H558	2	Pipe Plug	1/8", PIPE
9	T79120	1	GASKET	END CAP
10	AT78773	1	BEARING CONE	-
11	T79121	1	BEARING CUP	-
12	T79122	1	Shim	-
12	T79123	1	Shim	-
13	R27218	2	Fitting Plug	-
14	R26448	2	O-Ring	-
15	-	1	Part 16	CAP ASSEMBLY (SUB AT114843 AND AT114842 FOR AT78772)
15	AT114843	1	End	-
16	T79126	2	O-RING	-
17	AT78776	2	CHECK VALVE	CHARGE
18	T19583	8	WASHER	-
19	19H3595	4	SCREW	7/16" X 3-1/4", FLANGE HEAD, 3/1-4"
20	19H3596	4	SCREW	7/16" X 3-1/2", FLANGE HEAD, 3/1-2"
21	T75984	1	O-Ring	-
22	-	1	Part 24	(SUB AT78779)
23	AT78779	1	Seal Kit	PRESSURE LIMITER CHECK
24	T81686	1	O-Ring	(USE WITH SUNSTRAND MARKED NUMBER WITH PREFIX "02")
25	T108079	1	Back-Up Ring	(USE WITH SUNSTRAND MARKED NUMBER WITH PREFIX "02")
26A	AT78777	1	KIT	PRESSURE LIMITER SENSOR (USE WITH SUNSTRAND MARKED NUMBER WITH PREFIX "01")
26B	AT114842	1	Pressure Relief Valve	PRESSURE LIMITER SENSOR, (USE WITH AT114843)

PUMP END CAP (USE WITH HIGH SPEED HFWD) (672A) [03F14]
