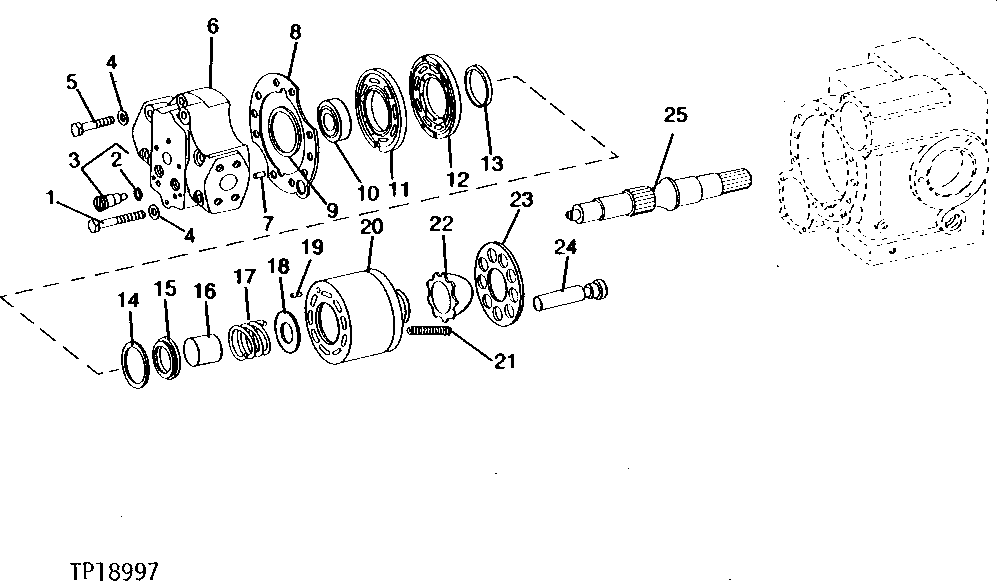

PUMP END CAP, CYLINDER BLOCK AND SHAFT (USE WITH STANDARD SPEED) (672A) [03F07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3206	4	Cap Screw	7/16" X 3-1/4"
2	H63283	2	O-Ring	-
3	AH63288	2	CHECK VALVE	-
4	24M7044	8	Washer	13 X 20 X 2 MM
5	19H2055	4	CAP SCREW	7/16" X 2-1/4"
6	-	1	Part 6	( E52927 NO LONGER AVAILABLE) (SUB T114776 IF AVAILABLE) (ALSO ORDER (2) U44115 AND (2) R28782)
7	H63271	1	Pin	-
8	H64829	1	GASKET	-
9	AT120883	1	SHIM KIT	(SUB FOR H81607) 0.25 MM (.010")
10	AH65358	1	Bearing	-
11	E52929	1	PLATE	VALVE
12	H122392	1	PLATE	(K) BEARING, (SUB FOR H64827, THIS APPLICATION) (SUB FOR H109350)
13	H64826	1	Guide	(K)
14	H64825	1	Snap Ring	(K)
15	H64824	1	Retainer	(K)
16	H64823	1	Bushing	(K)
17	N195747	1	COMPRESSION SPRING	(K) (SUB FOR H83935, THIS APPLICATION) (SUB FOR H98068)
18	H64821	1	Washer	(K)
19	H63270	1	PIN	(K)
20	AH90557	1	Cylinder Block	(K)
21	H89093	6	COMPRESSION SPRING	(K)
22	H64819	1	Guide	(K)
23	H64818	1	Retainer	(K)
24	AH99347	3	KIT	(K) (THREE PISTONS PER KIT) (SUB FOR AH118958)
25	T65962	1	SHAFT	(K) (19 TEETH)

PUMP END CAP, CYLINDER BLOCK AND SHAFT (USE WITH STANDARD SPEED) (672A) [03F07]
