POPPET ASSEMBLY REPAIR KIT (FRONT-MOUNTED EQUIPMENT) [03I23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

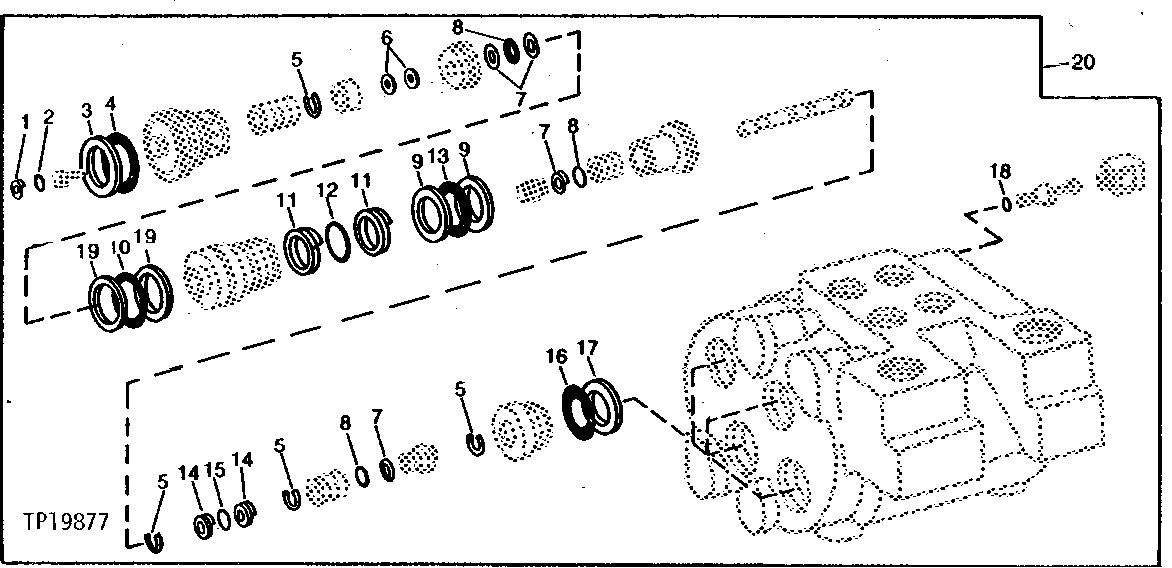

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T42427	1	BACK-UP RING	-
2	T42426	1	O-Ring	-
3	R75790	1	BACK-UP RING	(USE WITH B3690R)
4	B3690R	1	O-Ring	(SUB FOR T42421, THIS APPLICATION, ALSO ORDER R75790)
5	T56343	5	SNAP RING	-
6	T42422	1	SHIM	.51 MM (.020")
7	R26551	4	BACK-UP RING	-
8	R394R	3	O-Ring	-
9	R81189	2	BACK-UP RING	(SUB FOR U41971, THIS APPLICATION) (USE WITH R81906 AND R61015)
10	R61015	1	O-Ring	(SUB FOR T42418, T59952 AND R31378, THIS APPLICATION) (ALSO ORDER (2) R78392)
11	R35473	2	Back-Up Ring	DELUXE VALVE ONLY
12	R29463	1	O-Ring	DELUXE VALVE ONLY
13	R81906	1	O-Ring	(SUB FOR T42416 AND T11220, THIS APPLICATION) (ALSO ORDER (2) R81189)
14	-	2	Part 14	( T42406 NO LONGER AVAILABLE) (SUB RE30357)
15	-	1	Part 15	( T42407 NO LONGER AVAILABLE) (SUB RE30357)
16	R30319	1	O-Ring	(SUB FOR T42414) (ALSO ORDER R81188)
17	R81188	1	BACK-UP RING	(SUB FOR T60654, THIS APPLICATION) (USE WITH R30319)
18	R30903	1	O-Ring	-
19	R78392	2	BACK-UP RING	-
20	RE30357	1	KIT	(SUB FOR AT57579, AR102475 AND RE22012)
