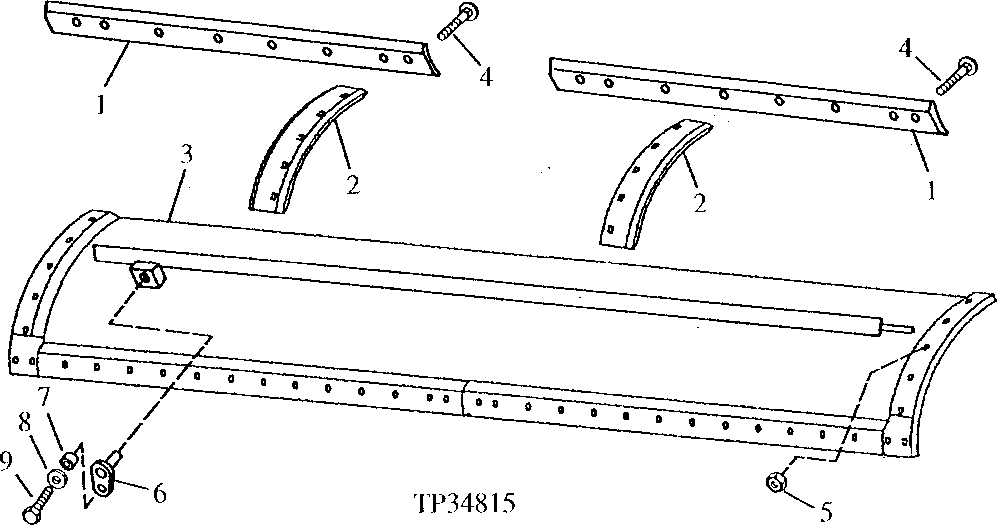

MOLDBOARDS AND CUTTING EDGES REPLACEMENT (FIVE HOLE END BIT) [03G01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T66707	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 16 MM X 152 MM X 2 134 MM (5/8" X 6" X 7')
1	T66705	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 16 MM X 152 MM X 2 438 MM (5/8" X 6" X 8') (WHEN EQUIPPED WITH MOLDBOARD EXTENSION)
1	T71978	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 16 MM X 203 MM X 1 829 MM (5/8" X 8" X 6')
1	T71979	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 16 MM X 203 MM X 2 134 MM (5/8" X 8" X 7')
1	T71980	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 16 MM X 203 MM X 2 438 MM (5/8" X 8" X 8') (WHEN EQUIPPED WITH MOLDBOARD EXTENSION)
1	T48840	1	Cutting Edge	SELECTIVE HARDENED SINGLE BEVEL EDGE, 19 MM X 152 MM X 1 829 MM (3/4" X 6" X 6')
1	T66703	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 19 MM X 203 MM X 1 829 MM (3/4" X 8" X 6')
1	T48841	1	Cutting Edge	SELECTIVE HARDENED SINGLE BEVEL EDGE, 19 MM X 152 MM X 2 134 MM (3/4" X 6" X 7')
1	T66704	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 19 MM X 203 MM X 2 134 MM (3/4" X 8" X 7')
1	T66706	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 19 MM X 203 MM X 2 438 MM (3/4" X 8" X 8') (WHEN EQUIPPED WITH MOLDBOARD EXTENSION)
1	T66702	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 16 MM X 152 MM X 1 829 MM (5/8" X 6" X 6')
2	T149153	2	End Bit	(RECOMMENDED WITH 19 MM (3/4") CUTTING EDGE)
2	T149152	2	End Bit	(RECOMMENDED WITH 16 MM (5/8") CUTTING EDGE)
3	AT303240	1	Moldboard	(SUB FOR AT169214) (ALSO ORDER (2) T202876) (SUB FOR AT139411) 22 MM X 3 648 MM (7/8" X 12')
3	AT303282	1	Moldboard	(SUB FOR AT166751) (ALSO ORDER (2) T202876) (SUB FOR AT130108) 22 MM X 4 268 MM (7/8" X 14')
3	AT303296	1	Moldboard	(SUB FOR AT169213) (ALSO ORDER (2) T202876) (SUB FOR AT158107) 22 MM X 3 963 MM (7/8" X 13')
4	09H1759	40	Bolt	5/8" X 2-1/4", (WITH 14' MOLDBOARD)
4	09H1759	38	Bolt	5/8" X 2-1/4", (WITH 12' MOLDBOARD)
5	14H800	40	Nut	5/8", (WITH 14" MOLDBOARD)
5	14H800	38	Nut	5/8", (WITH 12' MOLDBOARD)
6	AT41245	1	Pin	-
7	28H3418	1	Washer	0.546" X 0.840" X 5/16", 1/2" X .312"
8	24H1349	1	Washer	9/16" X 1-1/4" X 0.134"
9	19H3385	1	Cap Screw	HS, SAE 8, 1/2" X 1-1/8"

MOLDBOARDS AND CUTTING EDGES REPLACEMENT (FIVE HOLE END BIT) [03G01]
