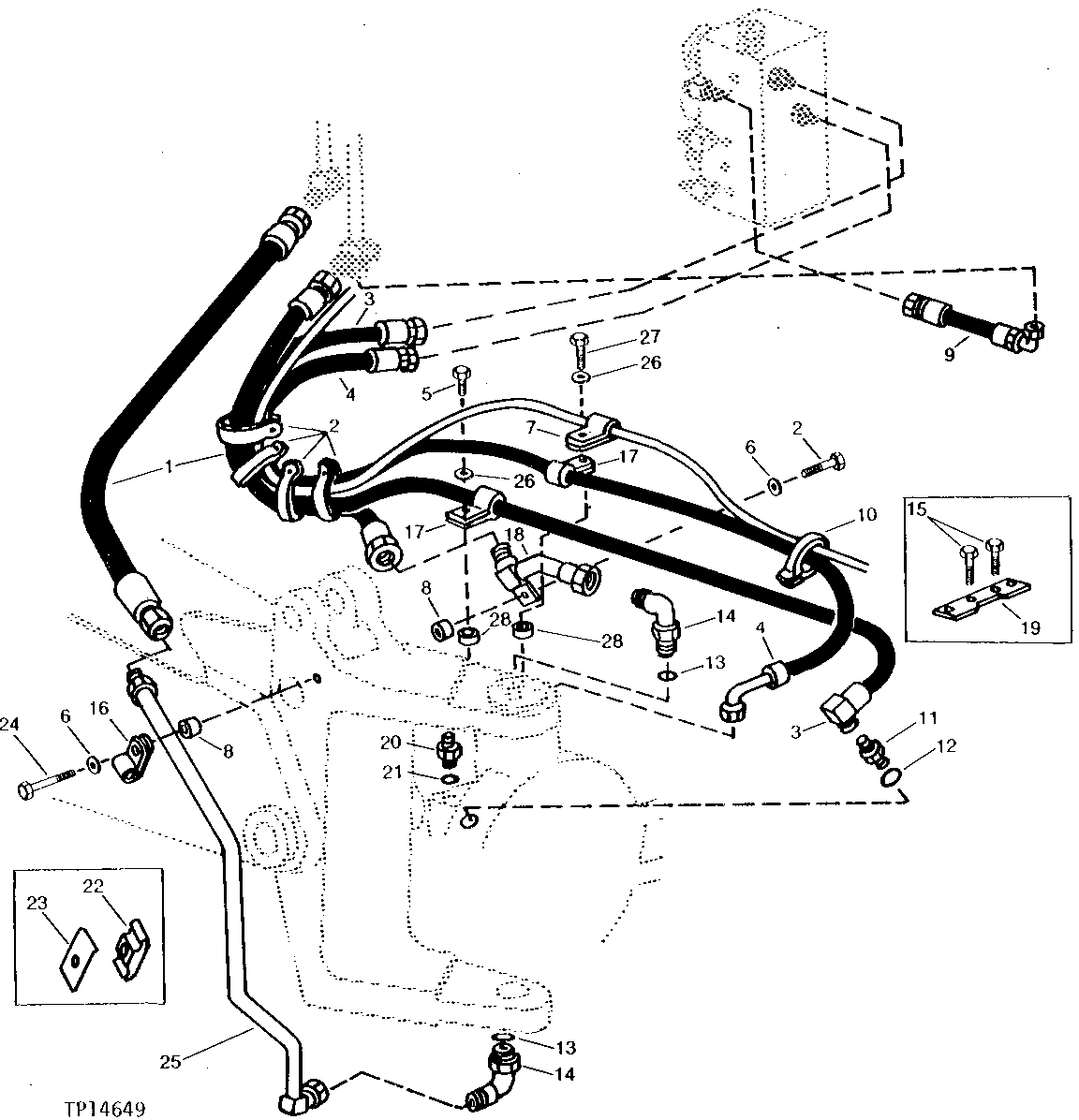

LEFT FRONT WHEEL HYDRAULICS (672A) [03D22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT53761	2	HYDRAULIC HOSE - FABRICATE	1-1/16" X 864 MM (34") X 1-1/16"
2	AR44217	4	Clamp	-
3	AT53766	1	HOSE	3/4" X 1 473 MM (58") X 3/4"
4	AT60075	1	HYDRAULIC HOSE - FABRICATE	1/2" X 1 535 MM (60-1/2") X 1/2"
5	19H1648	1	Cap Screw	3/8" X 3/4"
5	19H1765	1	Cap Screw	3/8" X 1-3/4"
6	24H1305	3	Washer	13/32" X 13/16" X 0.065"
6	24H1884	3	Washer	13/32" X 13/16" X 0.120"
7	T74410	1	Clamp	(SUB FOR T14264, THIS APPLICATION)
8	28H1884	3	Spacer	3/8" X 1/2"
8	28H3381	3	Spacer	3/8" X 5/8"
9	AT57486	1	HYDRAULIC HOSE - FABRICATE	9/16" X 254 MM (10") X 1/2"
10	RE65978	1	Clamp	(SUB FOR AT18904 OR RE62322)
11	R27237	1	Fitting	-
12	R26375	1	O-Ring	-
13	U12547	2	O-Ring	(SUB FOR (2) F3171R)
14	AT32331	2	Elbow Fitting	-
15	19H2633	2	Cap Screw	3/8" X 1-1/2"
16	T67477	2	Clamp	-
17	T28949	2	Clamp	-
18	AT53762	1	OIL LINE	-
19	T62757	1	BRACKET	-
20	R27272	1	Fitting	-
21	R26286	1	O-Ring	-
22	T37573	1	CLAMP	(SUB T67477, THIS APPLICATION)
23	T32707	1	CLAMP	(SUB T67477, THIS APPLICATION)
24	19H1765	3	Cap Screw	3/8" X 1-3/4"
25	AT53764	1	TUBE	(SUB AT67643)
25	AT64294	1	TUBE	(SUB AT67643)
25	AT67643	1	OIL LINE	-
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	19H2633	1	Cap Screw	3/8" X 1-1/2"
27	19H1765	1	Cap Screw	3/8" X 1-3/4"
28	28H2547	2	Spacer	3/8" X 1"

LEFT FRONT WHEEL HYDRAULICS (672A) [03D22]
