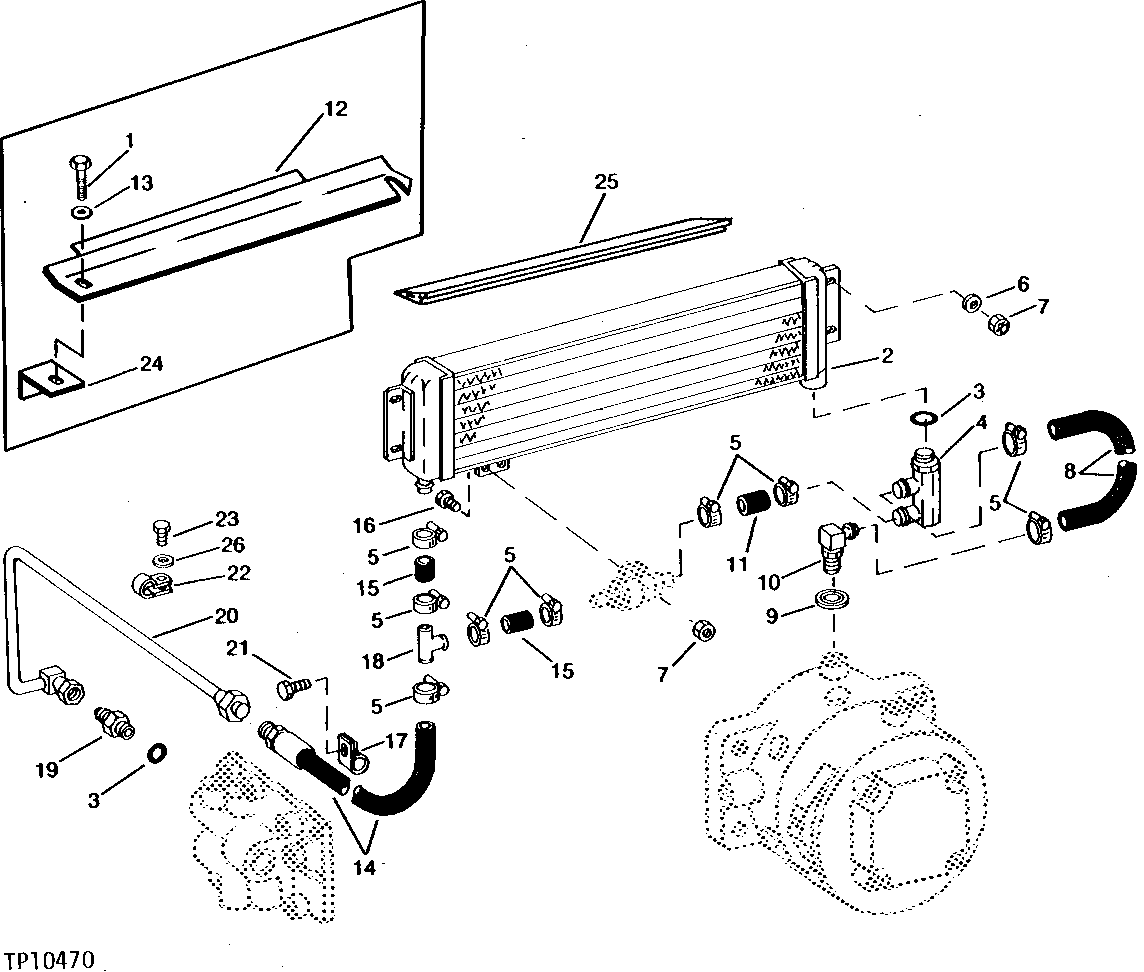

HYDRAULIC PUMP OIL COOLER, AND BYPASS VALVE [03D06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1919	2	Cap Screw	1/4" X 5/8"
2	AT40714	1	OIL COOLER	(SUB AT62633)
2	AT62633	1	OIL COOLER	-
3	U12547	2	O-Ring	(SUB FOR (2) F3171R)
4	AT60076	1	FITTING	-
5	AR21839	9	Clamp	-
6	24H1305	4	Washer	13/32" X 13/16" X 0.065"
7	T11234	6	Lock Nut	-
8	-	1	Part 9	356 MM LONG (3/4" X 14") (MAKE FROM T61939)
9	AT37486	1	WASHER	-
9	R26906	1	O-Ring	(WITH 65 CM3 (4.00 CUBIC INCH) PUMP)
10	AR52206	1	Elbow Fitting	(WITH 65 CM3 (4.00 CUBIC INCH) PUMP)
11	-	1	Part 13	610 MM LONG (3.4" X 24-1/2") (MAKE FROM T61939)
12	AT57607	1	DEFLECTOR	-
13	24H1287	2	Washer	9/32" X 5/8" X 0.065"
14	AT45921	1	HYDRAULIC HOSE - FABRICATE	915 MM LONG (1-1/16" X 3/4" X 36")
15	-	2	Part 17	48 MM LONG (3/4" X 1-7/8") (MAKE FROM T61939)
16	19H2676	2	Cap Screw	3/8" X 1"
17	R46667	1	Clamp	-
18	T29320	1	Tee Fitting	-
19	R27267	1	Fitting	-
20	AT68014	1	LINE	(SUB FOR AT45920)
21	19H2633	1	Cap Screw	3/8" X 1-1/2"
22	T27523	1	Clamp	-
23	19H3239	1	Cap Screw	3/8" X 1-1/4"
23	19H3239	1	Cap Screw	3/8" X 1-1/4", (HIGH SPEED HFWD)
24	-	2	Part 27	( AT57608 NO LONGER AVAILABLE)
25	-	1	Part 28	760 MM LONG (30") (MAKE FROM T71784)
26	24H1305	1	Washer	13/32" X 13/16" X 0.065", (HIGH SPEED HFWD)

HYDRAULIC PUMP OIL COOLER, AND BYPASS VALVE [03D06]

Нет текстового описания
