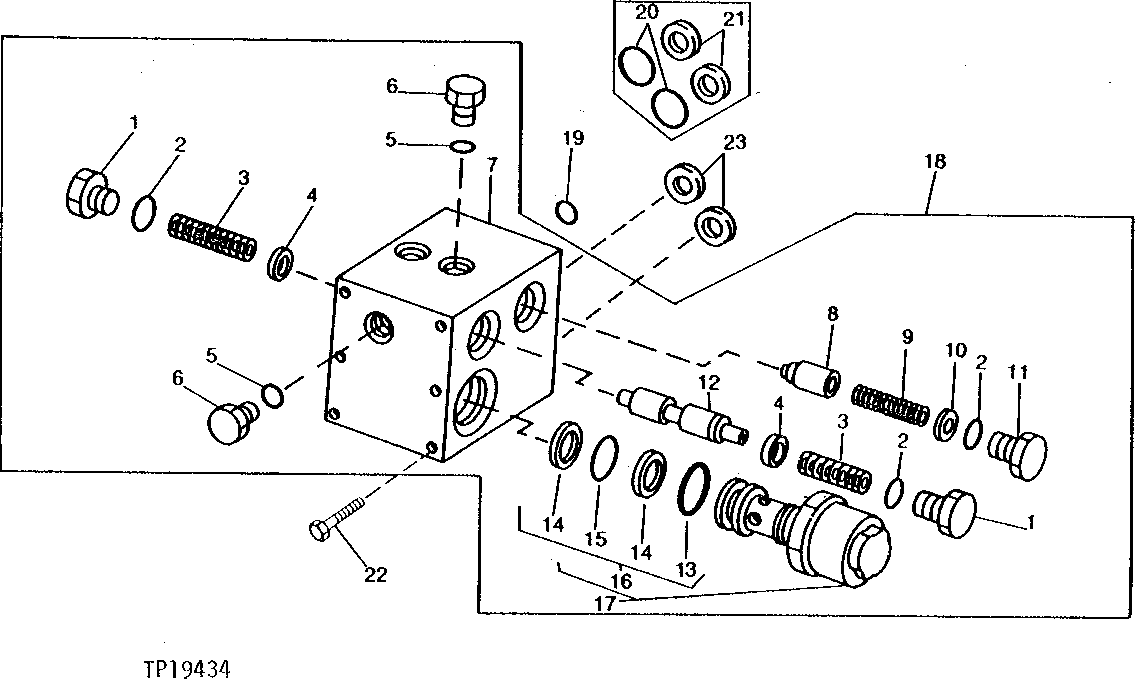

HFWD HIGH PRESSURE AND CHARGE RELIEF MANIFOLD (672A) [03E02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T54906	2	FITTING	-
2	R26906	3	O-Ring	-
3	H63285	2	COMPRESSION SPRING	-
4	H63287	2	WASHER	-
5	R28782	3	O-Ring	-
6	U44115	3	Fitting Plug	-
7	-	1	Part 7	(SUB AT107169 OR AT107170)
8	H89242	1	PISTON	-
9	H89241	1	Spring	-
10	T54908	1	SOLID SHIM	0.25 MM (.010")
11	H63221	1	FITTING	-
12	-	1	Part 12	(SUB AT107169 OR AT107170)
13	U17409	1	O-Ring	(USE WITH AT112069)
13	T121897	1	O-RING	(USE WITH AT186402)
14	H63288	2	Ring	-
15	H63289	1	O-Ring	(USE WITH AT112069)
15	T166442	1	O-Ring	(USE WITH AT186402)
16	AH63292	1	SEAL KIT	RELIEF VALVE SEAL, (USE WITH AT112069)
16	AT186404	1	SEAL KIT	RELIEF VALVE SEAL, (USE WITH AT186402)
17	-	2	Part 20	(STANDARD SPEED HFWD) ( AT112069 NO LONGER AVAILABLE) (SUB AT186402)
17	T54908	1	SOLID SHIM	(USE WITH AT112069) (NOT ILLUSTRATED)
17	AT186402	2	KIT	(STANDARD SPEED HFWD) RELIEF VALVE SEAL/ADJUSTABLE
17	AH118397	2	Pressure Relief Valve	(HIGH SPEED HFWD) (SUB FOR AH107889)
18	-	1	Part 24	(STANDARD SPEED HFWD) (SUB AT107169 FOR AT53753)
18	-	1	Part 25	(HIGH SPEED HFWD) (SUB AT107170 FOR AT76020)
19	R56396	1	O-Ring	(SUB FOR U15192, THIS APPLICATION)
20	-	2	Part 27	(SUB E76851 FOR P47908 AND U12547, THIS APPLICATION)
21	-	2	Part 28	(SUB E76851 FOR H63291 AND U40727, THIS APPLICATION)
22	19H1897	6	Cap Screw	5/16" X 3-3/4"
23	E76851	2	O-RING	-
