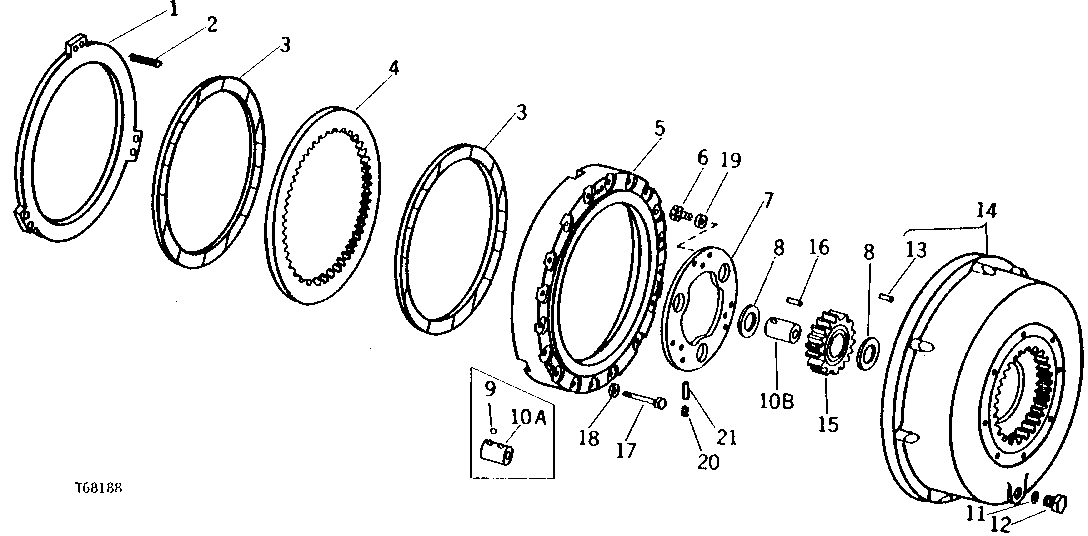

FRONT WHEEL DRIVE SECOND PLANET PINION, PLANETARY HOUSING AND BRAKE PLATES (672A) [01C10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R66393	1	Plate	-
2	R42762	6	SPRING	-
3	R94227	2	Disk	(SUB FOR R62996, R78664 AND R88203)
4	R60240	1	Gear	-
5	R60241	1	Plate	-
6	19H2676	6	Cap Screw	3/8" X 1"
6	19H1741	6	CAP SCREW	1/2" X 1-1/8"
7	R60242	1	RETAINER	(SUB AR89284, R68508, (3) R68509, (3) R39324) (SUB AR89284, R68508, (3) R68509, (3) R39324, (3) 15H560 AND (6) 19H1165)
7	R68508	1	Retainer	-
8	R42931	6	Thrust Washer	-
9	H871R	6	Ball	-
11	R26375	1	O-Ring	-
12	R39112	1	Fitting	-
13	R28671	3	Dowel Pin	-
14	AR73090	1	HOUSING	WITH GEAR, (MARKED R60243) (SUB AR89284, R68508, (3) R68509, (3) R39324, (3) 15H560 AND (6) 19H1165)
14	AR89284	1	Housing	WITH GEAR, (MARKED R68507)
15	R60252	3	Pinion	-
16	R116712	66	Needle Roller	(SUB FOR R45422)
17	19H2855	24	Cap Screw	3/8" X 3-1/4"
18	R42729	24	Washer	-
19	R42729	6	Washer	-
20	15H560	3	Pipe Plug	1/16"
21	R39324	3	DOWEL PIN	-
10A	R60251	3	SHAFT	(SUB AR89284, R68508, (3) R68509, (3) R39324, (3) 15H560 AND (6) 19H3385)
10B	R68509	3	Bushing	-

FRONT WHEEL DRIVE SECOND PLANET PINION, PLANETARY HOUSING AND BRAKE PLATES (672A) [01C10]
