Открытый узел

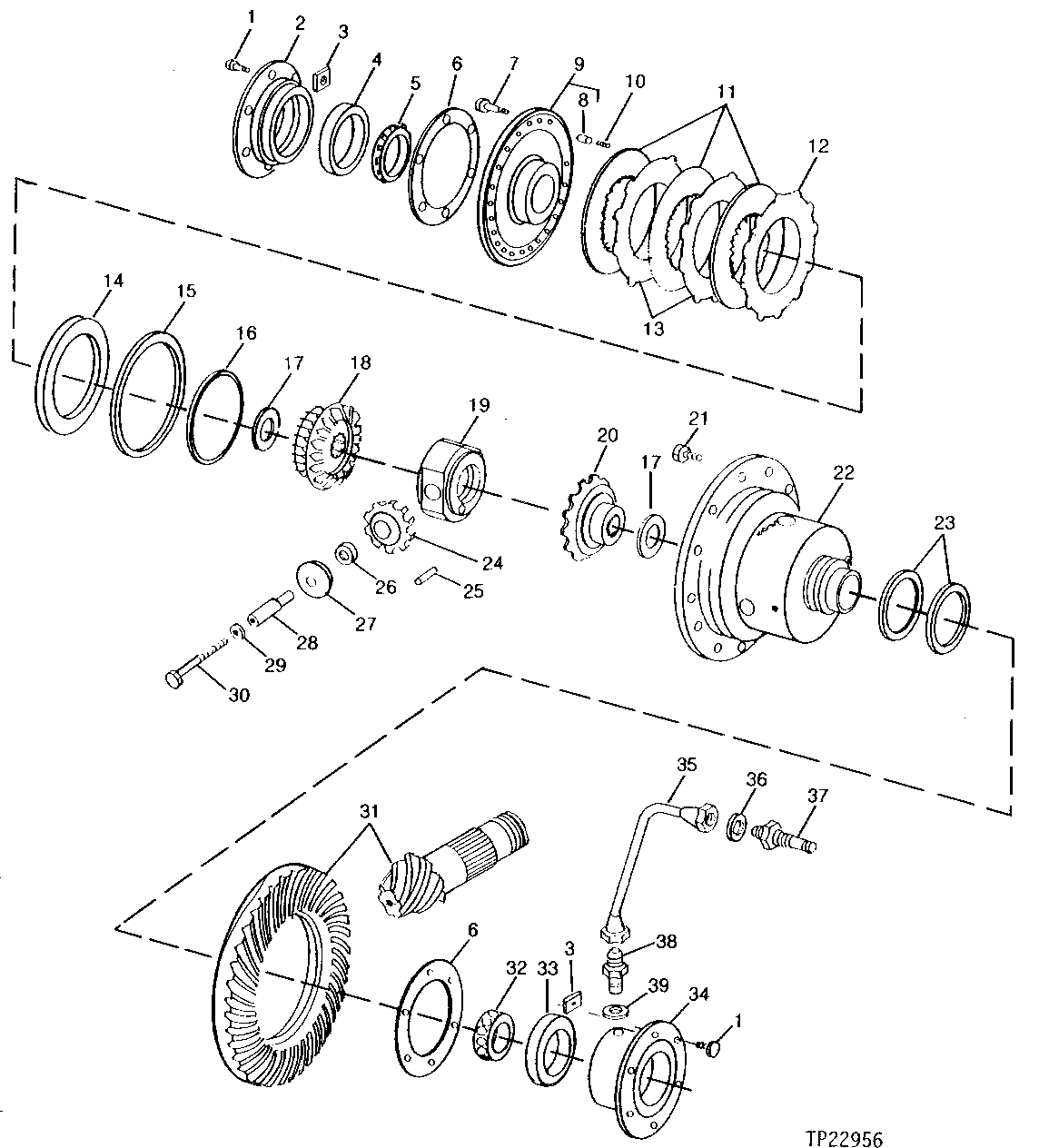

DIFFERENTIAL (TRANSMISSION SERIAL NO. 005421- ) [01B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	-
2	R73266	1	BEARING HOUSING W/O BEARING	-
3	14H823	2	NUT	1/2"
4	JD9118	1	Bearing Cup	-
5	JD9055	1	Bearing Cone	-
6	R46323	1	Shim	0.08MM (.003")
6	R46324	1	Shim	0.13MM (.005")
6	R46325	1	Shim	0.25MM (.010")
7	R116064	12	CAP SCREW	(SUB FOR (12) R40236)
8	34H311	3	Spring Pin	1/4" X 7/8"
9	RE21188	1	COVER	(MARKED R82274)
10	R41770	3	Spring	-
11	AR86454	4	DISK WITH INNER SPLINE	-
12	R34857	1	Clutch Plate	-
13	R34858	3	Clutch Plate	-
14	R58775	1	Piston	-
15	R41017	1	WASHER	-
16	R44328	1	WASHER	-
17	R77145	2	WASHER	-
18	R66715	1	Bevel Gear	-
19	R67781	1	HUB	-
20	R63477	1	Bevel Gear	-
21	19H2252	12	CAP SCREW	1/2" X 1-3/16"
22	RE22472	1	HOUSING	(INCLUDES BALLS) (MARKED R81480)
23	R46326	2	Ring	-
24	R68170	3	PINION	-
25	R68171	69	Needle Roller	-
26	R68167	3	Washer	-
27	R59460	3	Thrust Washer	-
28	R67783	3	SHAFT	-
29	R57696	3	Washer	-
30	R89836	3	BOLT	-
31	-	1	Part 33	(GEAR MARKED R41764 AND SHAFT MARKED R41766) (MATCHED SET) (INCLUDES SHIMS) ( RE19827 NO LONGER AVAILABLE, ORDER COMPONENTS)
32	JD8954	1	Bearing Cone	-
33	JD8259	1	Bearing Cup	-
34	R46448	1	BEARING HOUSING W/O BEARING	-
35	AR34697	1	OIL LINE	-
36	R51494	1	WASHER	-
37	AR34569	1	FITTING	-
38	R39597	1	ADAPTER FITTING	-
39	R30903	1	O-Ring	-
..	400R	2	Ball	(USE WITH R81480)

DIFFERENTIAL (TRANSMISSION SERIAL NO. 005421- ) [01B21]

Нет текстового описания
