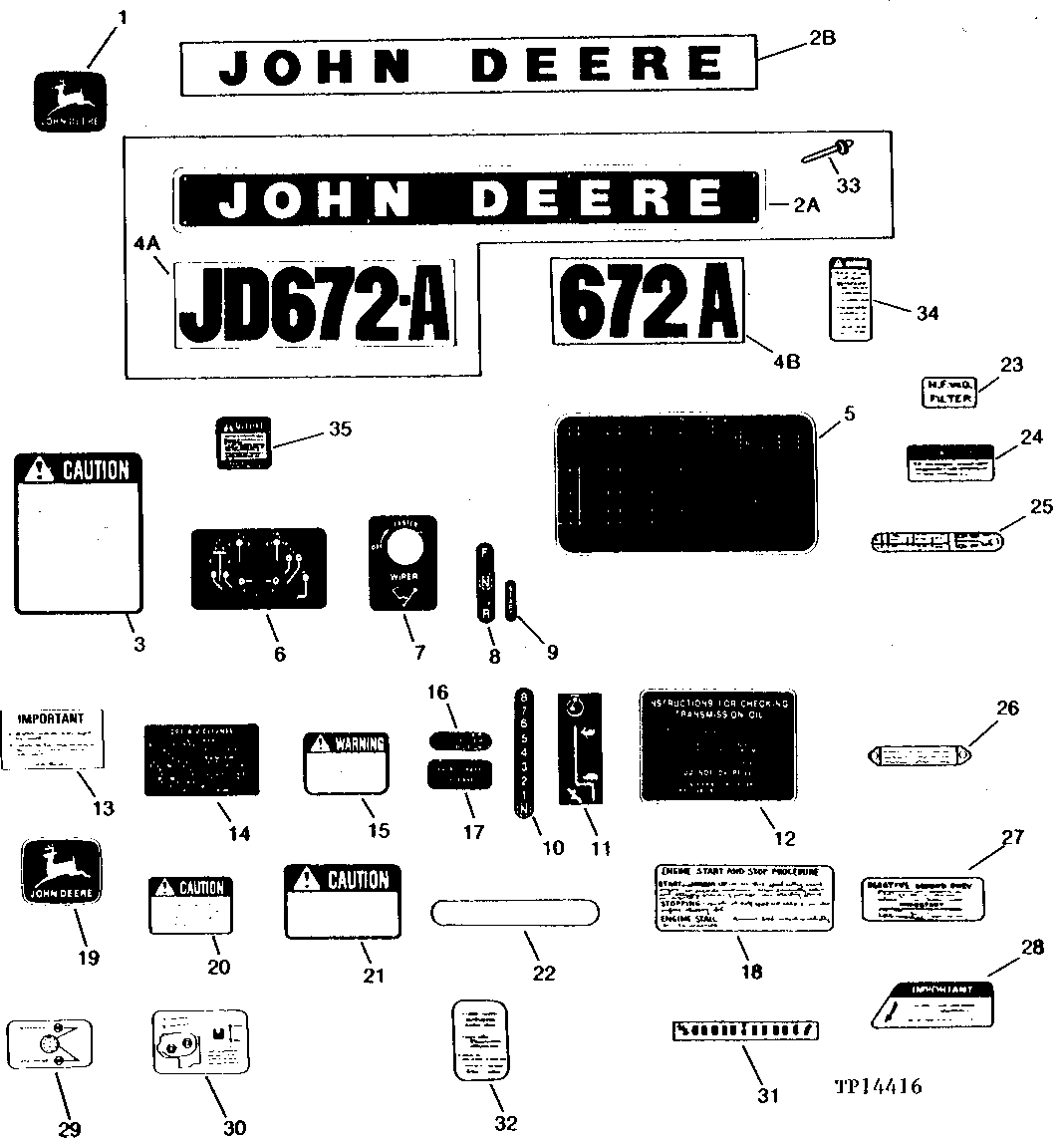

DECALS AND LABELS (672A) [02C06]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD5623	1	LABEL	LEAPING DEER
1	JD5621	1	LABEL	(SUB FOR JD5276, THIS APPLICATION) (SUB FOR JD5606)
1	JD5607	1	LABEL	LEAPING DEER (SUB FOR JD5277, THIS APPLICATION)
3	T43461	1	SAFETY SIGN	SAFETY
5	T60881	1	LABEL	PERIODIC SERVICE CHART
6	T46589	1	LABEL	CONTROL IDENTIFICATION
7	T47545	1	LABEL	WIPER
8	T48534	1	LABEL	DIRECTION INDICATOR
9	T43471	1	LABEL	START
9	T62122	1	LABEL	START AID
10	T43458	1	LABEL	SHIFT SELECTOR
11	T50132	1	LABEL	THROTTLE
12	T128277	1	LABEL	INSTRUCTION, TRANSMISSION OIL LEVEL (SUB FOR T38004)
13	U42958	1	SAFETY SIGN	SAFETY
14	R56902	1	Label	DRY AIR CLEANER
15	U42957	1	SAFETY SIGN	SAFETY
16	T43470	1	LABEL	AIR FILTER RESTRICTION
17	T43459	1	LABEL	PARKING BRAKE RELEASE
18	T35672	1	LABEL	START AND STOP PROCEDURE
19	JD5602	1	LABEL	LEAPING DEER, (SUB FOR JD5272)
20	T43705	1	SAFETY SIGN	CAUTION
21	-	1	Part 26	CAUTION ( T58344 NO LONGER AVAILABLE SEE PARTS BULLETIN DS86-24 (03APR86))
22	T62688	1	LABEL	ASSIST HANDLE
23	T61248	1	LABEL	FILTER GAUGE
24	T61249	1	LABEL	IMPORTANT
25	T61250	1	LABEL	PERIODIC SERVICE CHART
26	AT63242	1	BEARING KIT	SEAT WEIGHT DECALS
27	-	2	Part 32	BATTERY CONNECTION AND PRECAUTION ( T23616, NO LONGER AVAILABLE)
28	T66950	1	LABEL	FRONT SENSOR
29	T52885	1	LABEL	REAR AUXILIARY VALVE
30	T52884	1	LABEL	ONE FUNCTION VALVE
31	T49256	1	LABEL	REAR STEER INDICATOR
32	T72372	1	LABEL	ROLL-OVER PROTECTION, (SUB FOR T62066)
33	AT39608	1	Rivet	-
34	T146102	1	Label	START SAFETY, (SUB FOR T75512, T146102 AND T134459)
35	T146431	1	SAFETY SIGN	ACCUMULATOR
..	AT60477	1	DECAL KIT	DECAL, COMPLETE (FRENCH) (NOT ILLUSTRATED)
..	-	1	Part 42	DECAL, COMPLETE (GERMAN) (NOT ILLUSTRATED) ( AT62185 NO LONGER AVAILABLE)
..	AT62186	1	DECAL KIT	DECAL, COMPLETE (SPANISH) (NOT ILLUSTRATED)
2A	T33461	2	IDENTIFICATION PLATE	-
2B	JD5616	2	LABEL	-
4A	T64263	2	LABEL	-
4B	T71719	2	LABEL	SERIES DESIGNATION
