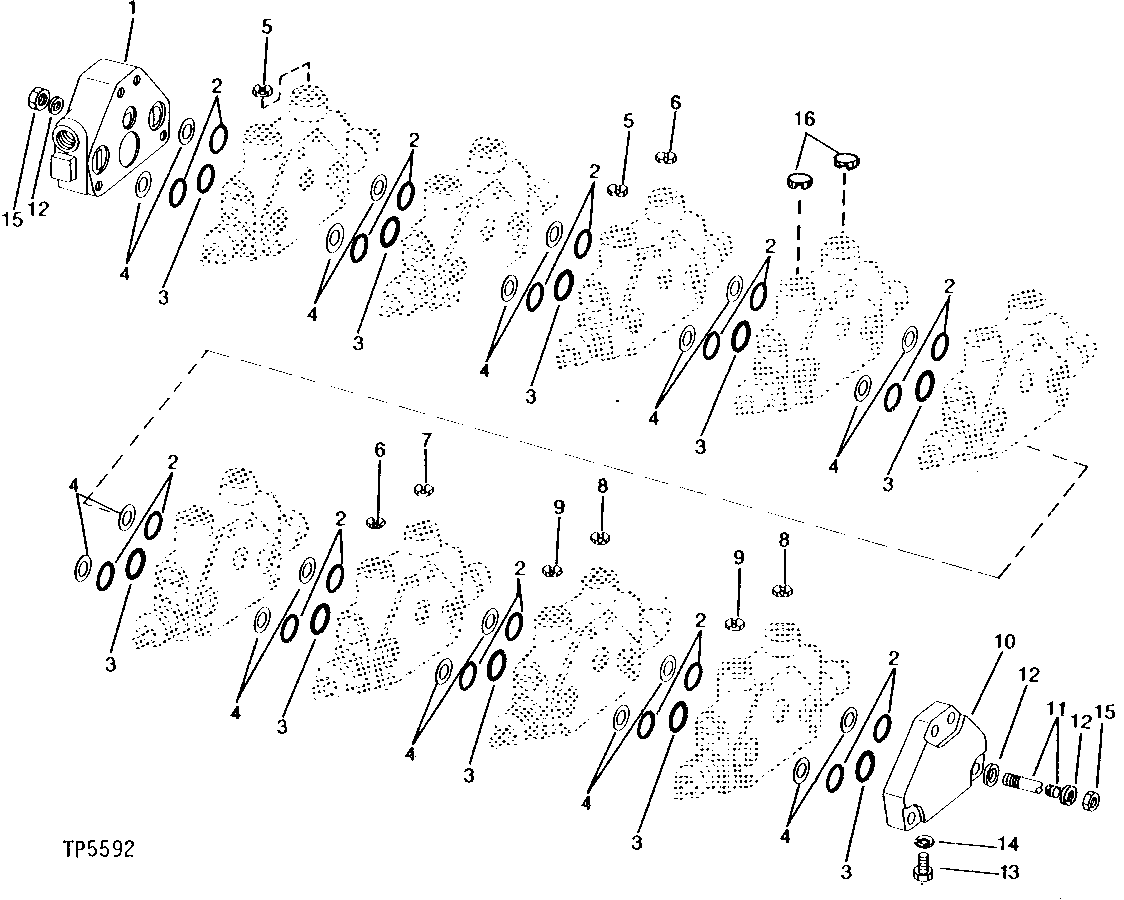

CONTROL VALVE SECTION O-RINGS AND WORK PORT ORIFICES [03D14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T60866	1	PLATE	L.H.
2	H35237	20	O-Ring	(K) (SUB FOR H35237, THIS APPLICATION)
3	-	10	Part 3	(K) (IF AVAILABLE, SUB T75461 FOR A3190R, THIS APPLICATION)
4	T41664	20	WASHER	-
5	W20862	1	Orifice	3.6 MM (.1405") (MARKED 367) (LIFT CYL HEAD END)
5	W20862	1	Orifice	3.6 MM (.1405")(MARKED 367) (WHEEL LEAN - ROD END)
6	H30826	1	Orifice	2.0 MM (.0785") (MARKED 346) (WHEEL LEAN HEAD END)
6	H30826	1	Orifice	2.0 MM (.0785") (MARKED 346) (CIRCLE SIDE SHIFT ROD END)
7	U42789	1	ORIFICE	1.5 MM (.0625") (MARKED 340) (CIRCLE SIDE SHIFT HEAD END)
8	N35140	1	ORIFICE	1.8 MM (.0700") (MARKED 343) (FRONT MOUNTED CYL HEAD END)
8	N35140	1	ORIFICE	1.8 MM (.0700") (MARKED 343) (BLADE TILT ROD END)
9	U41378	1	Orifice	2.9 MM (.1130") (MARKED 361) (BLADE TILT HEAD END)
9	U41378	1	Orifice	2.9 MM (.1130") (MARKED 361) (FRONT MOUNTED CYL ROD END)
10	U42783	1	END PLATE	-
11	T60867	4	ROD	3/8" X 18"
12	12H304	8	Lock Washer	3/8" COMPLETE
13	19H1924	3	Cap Screw	7/16" X 3/4"
14	12H293	3	Lock Washer	7/16"
15	14H812	8	NUT	3/8"
16	T74242	2	ORIFICE	(ONLY WITH 6 CU. INCH PUMP) (BLADE SIDE SHIFT)

CONTROL VALVE SECTION O-RINGS AND WORK PORT ORIFICES [03D14]
