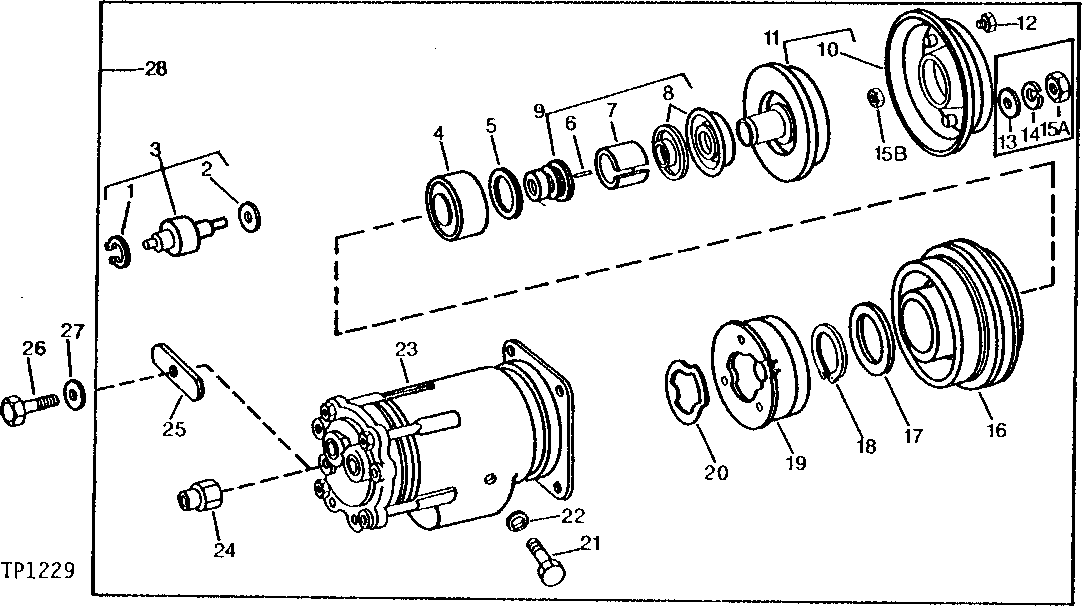

COMPRESSOR, COIL, CLUTCH, AND PULLEY [02J14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R63571	1	SNAP RING	-
2	32240	1	O-Ring	-
3	AR78501	1	KIT	SUPER HEAT SWITCH
4	AR71288	1	BALL BEARING	-
5	R47224	1	SNAP RING	-
6	R47229	1	SHAFT KEY	-
7	R47227	1	SEAL	-
8	AR71289	1	SHIELD	FRONT
9	AR71285	1	Valve Kit	COMPRESSOR SHAFT SEAL
10	AR71290	1	COVER	-
11	AR71286	1	CLUTCH	-
12	37H42	3	SCREW	NO. 10 X 3/8"
13	R47230	1	WASHER	(SUB R69297, THIS APPLICATION)
14	R47231	1	SNAP RING	(SUB FOR R69297, THIS APPLICATION)
16	AR71287	1	PULLEY	-
17	R54766	1	WASHER	REAR
18	R47226	1	SNAP RING	-
19	AT53175	1	ELECTRICAL COIL	-
20	R56246	1	GASKET	-
21	R47233	1	PLUG	-
22	R47234	1	WASHER	-
23	-	1	Part 24	24-VOLT, (WITHOUT COIL, CLUTCH OR PULLEY) (SUB AT56112)
23	-	1	Part 25	(SUB TY6666)
23	SE501473	1	COMPRESSOR	(REMANUFACTURED FOR TY6666)
24	AR49808	1	VALVE	-
25	R60171	1	STRAP	-
26	19H2959	1	Cap Screw	3/8" X 2"
26	19M8600	1	Cap Screw	M10 X 50
27	24M7096	1	Washer	0.413" X 0.709" X 0.063"
28	SE501456	1	COMPRESSOR	(REMANUFACTURED FOR TY6665)
28	TY6665	1	COMPRESSOR	(12-VOLT) (DELCO-REMY) (REMANUFACTURED) (SUB FOR TY6627)
28	TY6666	1	COMPRESSOR	(24-VOLT) (SUB FOR AT64486)
28	AT56112	1	COMPRESSOR	(24-VOLT) (SUB TY6666, 19M7170, (2) 19M7167, (2) 24M7036 AND (3) 19M7139)
15A	R47232	1	NUT	(SUB FOR R69297, THIS APPLICATION)
15B	R69297	1	FLANGE NUT	-

COMPRESSOR, COIL, CLUTCH, AND PULLEY [02J14]
