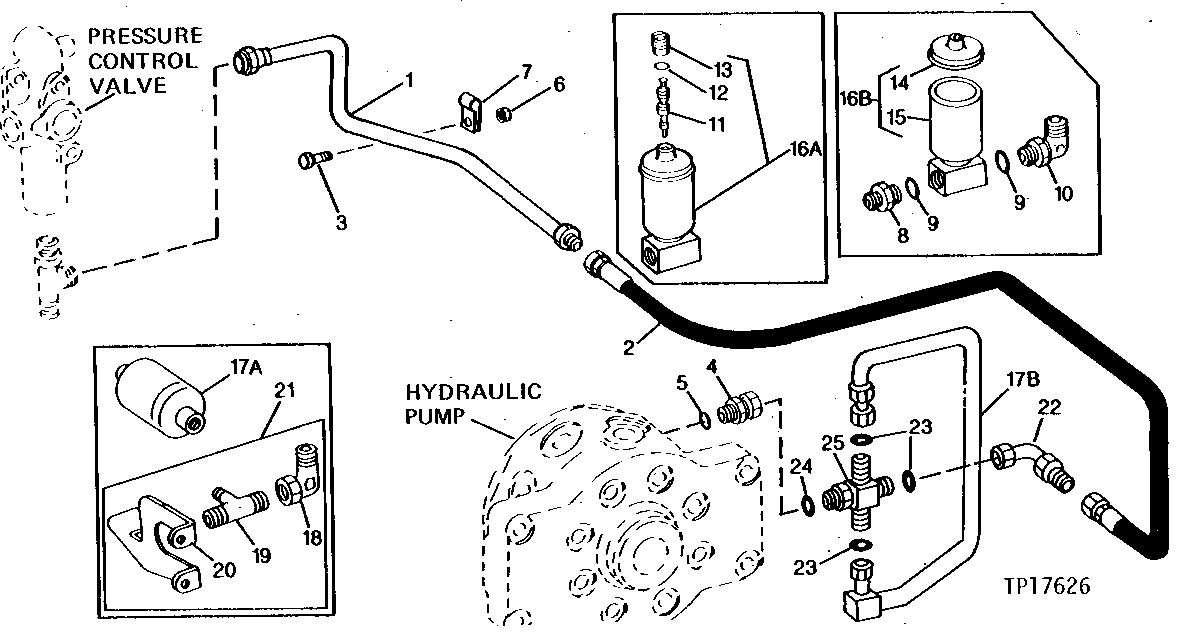

PRESSURE CONTROL VALVE PRESSURE LINES [02G07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT45489	1	LINE	-
2	AT45488	1	HYDRAULIC HOSE - FABRICATE	7/8" X 1 626 MM (64") X 1-1/16"
3	19H3239	1	Cap Screw	3/8" X 1-1/4"
4	AT52556	1	Adapter Fitting	(USE WITH AT62214)
5	U12547	1	O-Ring	(USE WITH AT62214) (SUB FOR F3171R)
6	T11234	1	Lock Nut	-
7	R46414	1	Clamp	(SUB FOR AH78125, THIS APPLICATION)
8	T54596	1	ADAPTER FITTING	-
9	U17409	2	O-Ring	-
10	AT52557	1	FITTING	90°
11	T44602	1	CHECK VALVE	-
12	T44604	1	O-Ring	-
13	T44603	1	PIPE PLUG	SECONDARY SEAL
14	T62160	1	CAP	ACCUMULATOR
15	AT59570	1	VALVE	TANK
18	AT28379	1	Fitting	90°
19	T65551	1	FITTING	TEE
20	-	1	Part 22	( T65552 USE IF AVAILABLE)
21	-	1	Part 23	ACCUMULATOR (SUB INDIVIDUAL PARTS OR AT115039, AT77786, AT77787, U12547 AND (3) T77858 FOR AT62215)
22	AT77786	1	OIL LINE	-
23	T77858	3	O-Ring	-
24	U12547	1	O-Ring	(SUB FOR F3171R)
25	-	1	Part 27	CROSS (SUB AT115039 FOR AT77785 MARKED WITH ONE DIAMOND ON WRENCH FLAT)
25	AT115039	1	Fitting	(MARKED WITH TWO DIAMONDS ON WRENCH FLAT)
16A	-	1	Part 16	HYDRAULIC OIL, (SUB AT115039, AT77786, AT77787, U12547 AND (3) T77858 FOR AT43476, THIS APPLICATION)
16B	-	1	Part 17	(SUB AT115039, AT77786, AT77787, U12547 AND (3) T77858 FOR AT57972, THIS APPLICATION)
17A	-	1	Part 18	(SUB AT115039, AT77786, AT77787, U12547 AND (3) T77858 FOR AT62214)
17B	AT77787	1	Oil Line	NOISE ATTENUATOR
