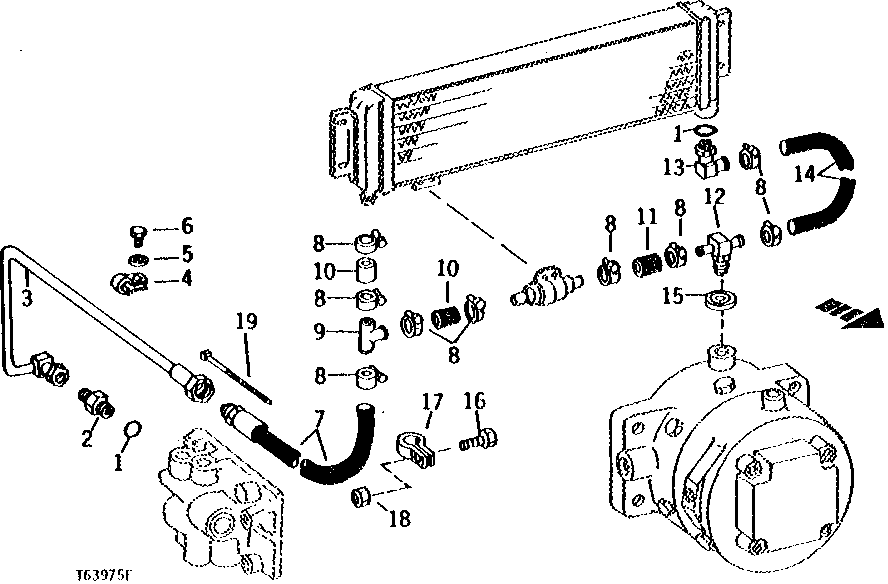

OIL COOLER AND BYPASS VALVE HYDRAULICS [02G14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	2	O-Ring	-
2	R27267	1	Fitting	-
3	AT68014	1	LINE	PUMP CHARGE, (SUB FOR AT45920)
4	T27523	1	Clamp	COATED, (SUB FOR T24959, THIS APPLICATION)
5	24H1309	1	Washer	13/32" X 1-1/16" X 0.120"
6	19H3239	1	Cap Screw	3/8" X 1-1/4"
7	AT45921	1	HYDRAULIC HOSE - FABRICATE	CHARGE LINE, 19 MM X 915 MM (1-1/16" X 3/4" X 36")
8	AR21839	9	Clamp	-
9	T29320	1	Tee Fitting	-
10	-	2	Part 10	BYPASS VALVE, 19 MM X 48 MM (3/4" X 1-7/8") (MAKE FROM T61939) (SUB FOR T43376 AND T56854)
11	-	1	Part 11	BYPASS VALVE TO PUMP, 19 MM X 162 MM (3/4" X 6-3/8") (MAKE FROM T61939) (SUB FOR T48604 AND T33414)
12	AT42080	1	TEE FITTING	-
13	AR46217	1	Elbow Fitting	ADJUSTABLE, 90°
14	-	1	Part 14	PUMP TO OIL COOLER, 19 MM X 356 MM (3/4" X 14") (MAKE FROM T61939) (SUB FOR T33416)
15	AT37486	1	WASHER	WITH PACKING, (SUB FOR R26906, THIS APPLICATION) (USE WITH AR99845)
15	P47908	1	O-Ring	(REPLACEMENT PUMP WITH SERIAL PLATE)
16	19H988	1	CAP SCREW	3/8" X 1-1/4"
17	T26955	1	Clamp	-
18	T11234	1	Lock Nut	-
19	H77698	1	Tie Band	CABLE, (SUB FOR T44946)
