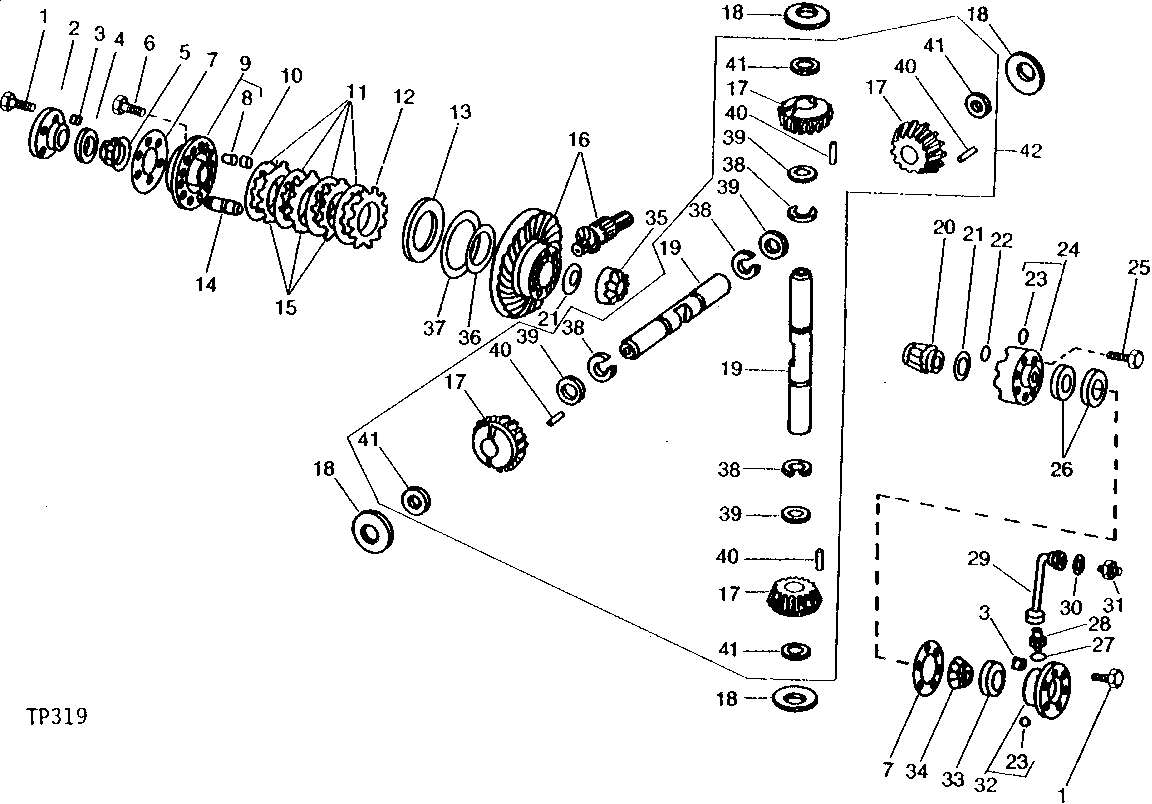

DIFFERENTIAL (SERIAL NO. 005422- ) [01B07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	-
2	R72049	1	BEARING HOUSING W/O BEARING	BEARING, L.H. (SUB FOR R46360)
3	14H823	2	NUT	SQ., 1/2"
4	JD8290	1	Bearing Cup	-
5	JD9019	1	BEARING CONE	-
6	R116064	12	CAP SCREW	(SUB FOR (12) R40236)
7	R46323	1	Shim	.08 MM (.003") STEEL
7	R46324	1	Shim	.13 MM (.005") STEEL
7	R46325	1	Shim	.25 MM (.010") STEEL
8	34H311	3	Spring Pin	1/4" X 7/8"
9	AR89837	1	COVER	(MARKED R68939) WITH PINS, (SUB FOR AR48645) (MARKED R46447)
10	R41770	3	Spring	-
11	AR70154	4	DISK WITH INNER SPLINE	-
12	R34857	1	Clutch Plate	BACKING
13	R58775	1	Piston	-
14	R52631	1	BUSHING	-
15	R34858	3	Clutch Plate	-
16	-	1	Part 18	DIFFERENTIAL WITH SPIRAL BEVEL GEAR, (MARKED R41764) SHAFT (MARKED R41766) (MATCHED SET) AND HOUSING (MARKED R63676 OR R65247) INCLUDES ALL PARTS IDENTIFIED BY (A) ON PAGE 0210-3 ( AR78599 NO LONGER AVAILABLE, ORDER COMPONENTS)
17	-	4	Part 19	(SUB AR91483) (SUB FOR R42444, THIS APPLICATION)
17	R68170	4	PINION	(USE WHEN AR91483 HAS BEEN INSTALLED AS A REPLACEMENT PART)
18	R59460	4	Thrust Washer	-
19	-	2	Part 22	BEVEL PINION, (SUB AR91483) (SUB FOR R58426, THIS APPLICATION)
19	R70111	2	Pinion Shaft	(USE WHEN AR91483 HAS BEEN INSTALLED AS A REPLACEMENT PART)
20	R63477	1	Bevel Gear	BEVEL, (SUB FOR R54182)
21	R65741	2	THRUST WASHER	(SUB FOR R53202)
22	R10093	2	O-Ring	-
23	400R	3	Ball	-
24	AR78950	1	HOUSING	(MARKED R65248) WITH BALLS
25	R116211	8	Screw	(SUB FOR R52718)
26	R34513	2	Ring	-
27	R30903	1	O-Ring	-
28	R39597	1	ADAPTER FITTING	-
29	AR78597	1	OIL LINE	OIL INNER
30	R51494	1	WASHER	-
31	AR34569	1	FITTING	-
32	AR78601	1	BEARING HOUSING W/O BEARING	BEARING, R.H., WITH BALL
33	JD8210	1	Bearing Cup	-
34	JD8159	1	Bearing Cone	-
35	R54180	1	GEAR	BEVEL LOCK
36	R44328	1	WASHER	-
37	R41017	1	WASHER	-
38	R70114	4	Snap Ring	-
39	R70113	4	Thrust Washer	-
40	R70115	104	Needle Roller	-
41	R70112	4	Thrust Washer	-
42	AR91483	1	PINION	-

DIFFERENTIAL (SERIAL NO. 005422- ) [01B07]
