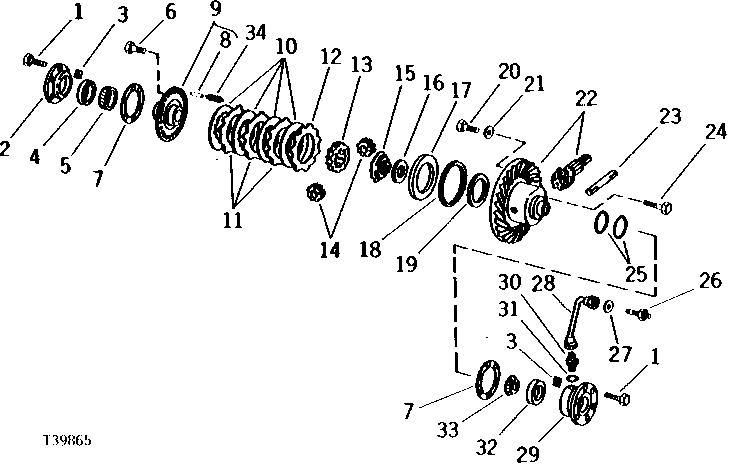

DIFFERENTIAL (SERIAL NO. -005421) [01B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	-
2	R72049	1	BEARING HOUSING W/O BEARING	BEARING, L.H. (SUB FOR R46360)
3	14H823	2	NUT	SQ., 1/2"
4	JD8290	1	Bearing Cup	-
5	JD9019	1	BEARING CONE	-
6	R116064	12	CAP SCREW	(SUB FOR (12) R40236)
7	R46323	1	Shim	.08 MM (.003") STEEL
7	R46324	1	Shim	.13 MM (.005") STEEL
7	R46325	1	Shim	.25 MM (.010") STEEL
8	34H311	3	Spring Pin	1/4" X 7/8"
9	AR89837	1	COVER	(MARKED R68939) (SUB FOR AR48645) (MARKED R46447) WITH PINS
10	AR86454	4	DISK WITH INNER SPLINE	DRIVING WITH FACINGS, (SUB FOR AR70154)
11	R34858	3	Clutch Plate	-
12	R34857	1	Clutch Plate	-
13	R66715	1	Bevel Gear	BEVEL LOCK, (SUB FOR R54180, THIS APPLICATION)
14	R42444	2	PINION	BEVEL
15	R63477	1	Bevel Gear	BEVEL, (SUB FOR R54182)
16	R65741	2	THRUST WASHER	(SUB FOR R53202)
17	R58775	1	Piston	-
18	R41017	1	WASHER	-
19	R44328	1	WASHER	-
20	19H2252	12	CAP SCREW	(A) 1/2" X 1-3/16", (SUB FOR R41048, THIS APPLICATION)
21	R47172	10	Washer	(A)
22	AR74314	1	HOUSING	DIFFERENTIAL, WITH SPIRAL BEVLE GEAR, (MARKED R41764) SHAFT (MARKED R41766) AND HOUSING (MARKED R58434) (MATCHED SET) INCLUDES ALL PARTS IDENTIFIED BY (A) ON THIS PAGE AND PAGE 0210-3
23	R58425	1	SHAFT	-
24	R70236	1	CAP SCREW	(SUB FOR R41050)
25	R46326	2	Ring	-
26	AR34569	1	FITTING	-
27	R51494	1	WASHER	-
28	AR34697	1	OIL LINE	INNER
29	R46448	1	BEARING HOUSING W/O BEARING	BEARING, R.H.
30	R39597	1	ADAPTER FITTING	-
31	R30903	1	O-Ring	-
32	JD8259	1	Bearing Cup	-
33	JD8954	1	Bearing Cone	-
34	R41770	3	Spring	-

DIFFERENTIAL (SERIAL NO. -005421) [01B05]
