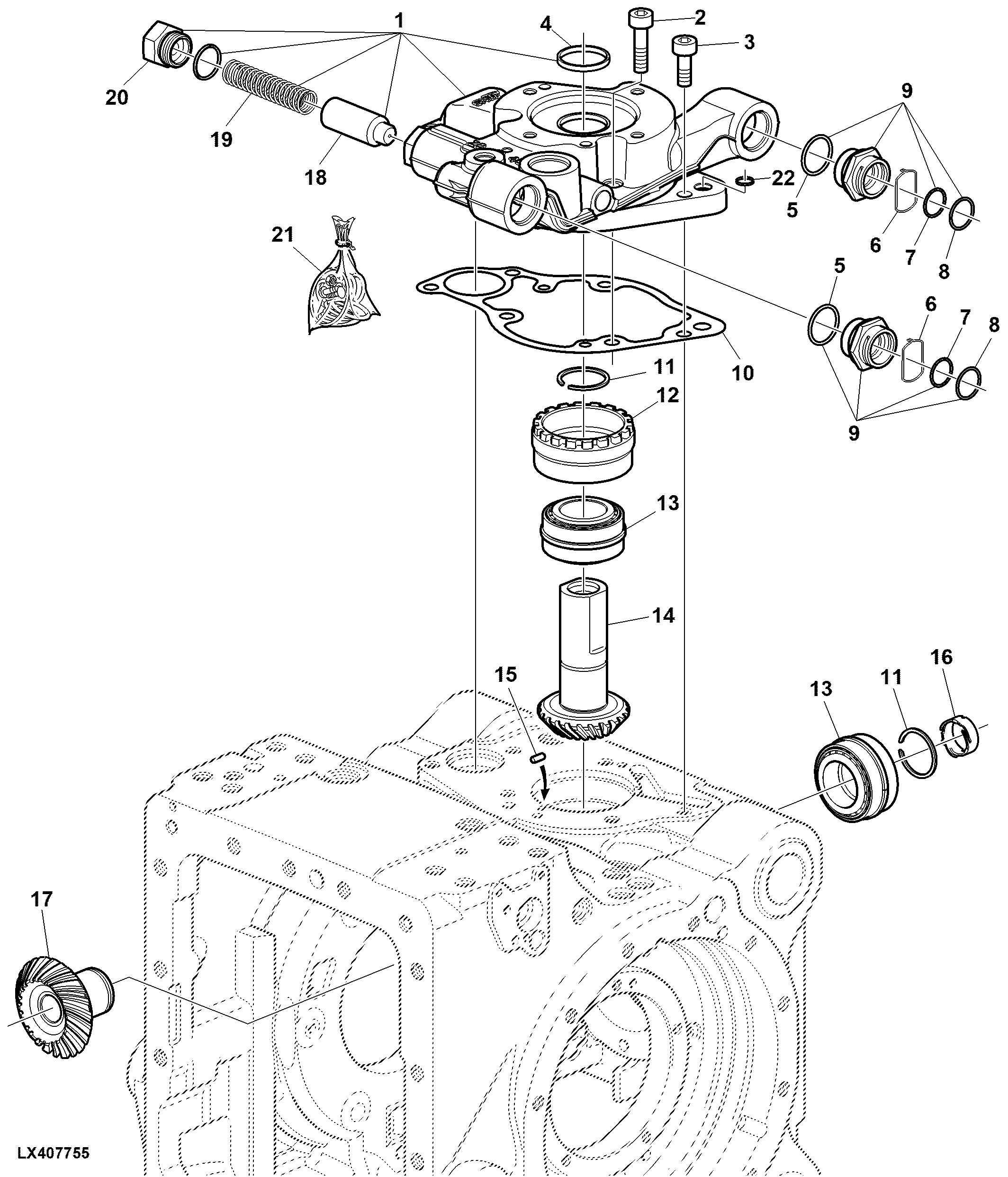

CHARGE PUMP (FOR HYDRAULIC PUMP 28/45CM3)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL209820	1	Oil Pump	(WITH HYDR. PUMP 36CM3) ORDER AL217929, INCL KEY 4,18-21
1	AL204094	1	Oil Pump	(WITH HYDR. PUMP 28CM3) NLA; ORDER AL209820, INCL KEY 21 (SUB FOR AL176490, AL172575)
1	AL209819	1	Oil Pump	-
1	AL217929	1	Pump	(WITH HYDR. PUMP 45CM3) INCL KEY 4,18-21
1	AL204093	1	Oil Pump	(WITH HYDR. PUMP 45CM3) NLA; ORDER AL209819, INCL KEY 21 (SUB FOR AL176491, AL172577)
2	19M8790	5	Screw	M12 X 55, (10.9)
3	19M9163	1	Screw	M12 X 40, (10.9)
4	R108011	1	Washer	-
5	51M7050	1	O-Ring	34.600 X 2.900 mm
6	L171572	2	Clamp	(SUB FOR L153419)
7	51M7100	1	O-Ring	25 X 2 mm
8	51M7103	1	O-Ring	28 X 2.200 mm
9	AL155058	2	Sleeve	-
10	L170341	1	Gasket	-
11	R96517	1	Snap Ring	TK= 2.60MM
11	L78785	1	Snap Ring	TK= 2.52MM
11	R96515	1	Snap Ring	TK= 2.45MM
11	L78784	1	Snap Ring	TK= 2.38MM
11	R48750	1	Snap Ring	TK= 2.31MM
11	R48749	1	Snap Ring	TK= 2.24MM
11	R48747	1	Snap Ring	TK= 2.08MM
11	R48746	1	Snap Ring	TK= 2.01MM
11	R48745	1	Snap Ring	TK= 1.93MM
11	L114773	1	Ring	TK= 1.86MM
11	R48748	1	Snap Ring	TK= 2.16MM
12	L77774	1	Sleeve	-
13	AL82960	2	Tapered Roller Bearing	NLA; ORDER AL208098
13	AL208098	2	Tapered Roller Bearing	-
14	L166208	1	Bevel Gear	Z=25
15	44M7146	1	Dowel Pin	6 X 14 mm
16	L75889	1	Sleeve	-
17	L155244	1	Bevel Gear	Z=29
18	L101394	1	Pin Fastener	FOR AL204093 AND AL204094
18	L209564	1	Pin Fastener	FOR AL209819, AL209820 AND AL217929
19	L79160	1	Compression Spring	FOR AL204093 AND AL204094
19	L209563	1	Compression Spring	FOR AL209819, AL209820 AND AL217929
20	L79171	1	Fitting Plug	-
21	RE70821	1	Seal Kit	INCLUDES L41383
22	L41383	1	Ring	15.40 X 2.10 mm

CHARGE PUMP (FOR HYDRAULIC PUMP 28/45CM3)
