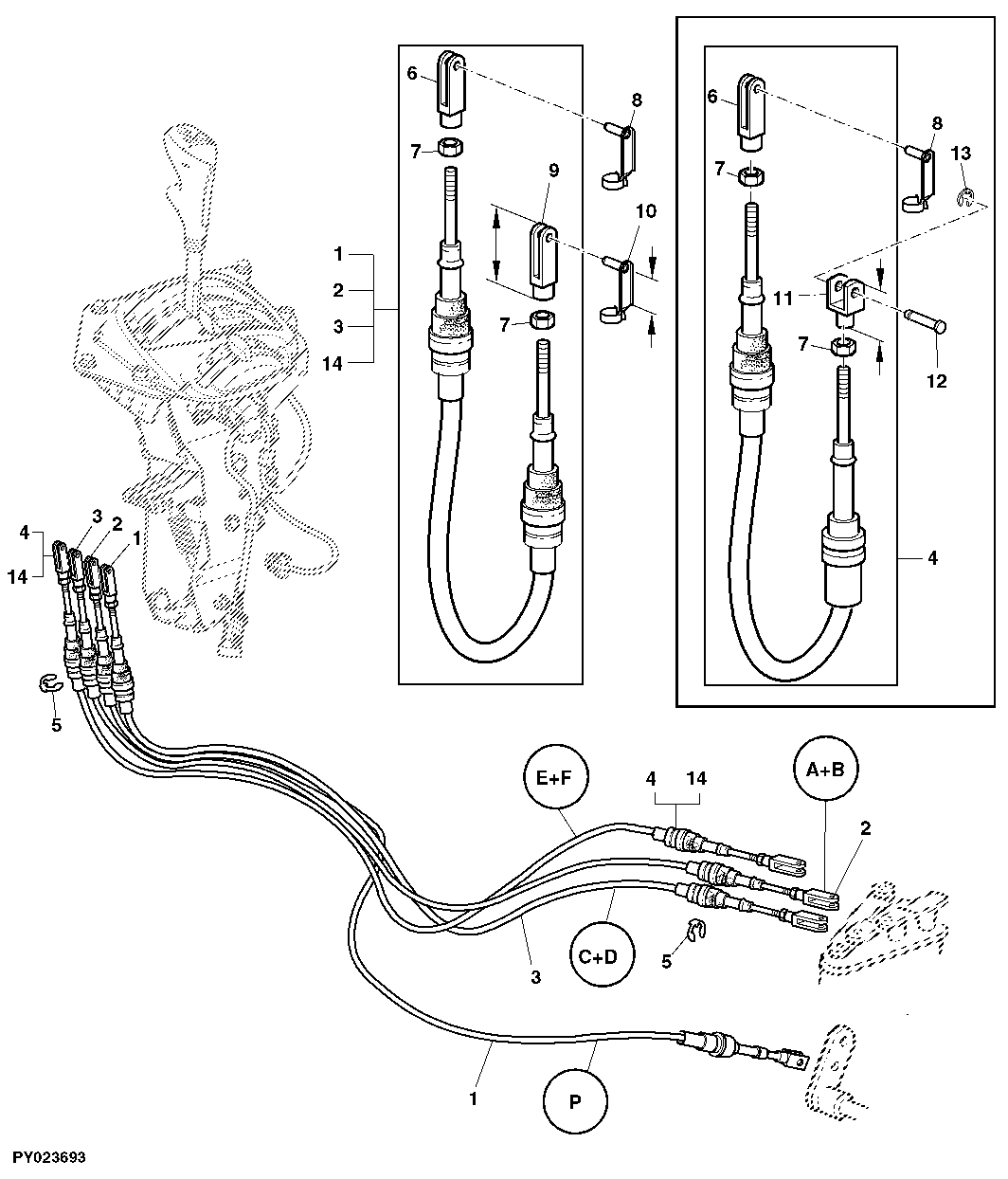

BOWDEN CABLES FOR 6-RANGE SHIFT AND PARK LOCK

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL179918	1	Push Pull Cable	(SUB FOR AL166850)
2	AL176420	1	Push Pull Cable	-
3	AL166848	1	Push Pull Cable	(W/ Hydraulic Cab Suspension (W/ HCS))
3	AL166800	1	Push Pull Cable	(W/O Hydraulic Cab Suspension (W/O HCS))
4	AL177330	1	Push Pull Cable	(W/ Hydraulic Cab Suspension (W/ HCS)) (SUB FOR AL166849) (ORD AL179902)
4	AL166801	1	Push Pull Cable	(ORD AL179901)
5	L219493	1	Snap Ring	SUB FOR L79076
6	L153346	1	Yoke	-
7	14M7272	2	Nut	M6, (10.9)
8	AL153825	1	Pin Fastener	-
9	L80051	1	Yoke	LGTH= 32MM (1-17/64"), (FOR AL166848, AL179901, AL179902)
9	L80052	1	Yoke	LGTH= 44MM (1-3/4"), (FORAL176420, AL179918)
10	AL79050	1	Pin Fastener	LGTH= 12MM (15/32"), ORDER 45M7101; (FOR AL166848, AL179901, AL179902)
10	45M7101	1	Spring Locking Pin	-
10	AL79051	1	Pin Fastener	LGTH= 24MM (15/16"), (FOR AL176420, AL179918)
11	L152502	1	Yoke	LGTH= 32MM (1-17/64")
12	L152504	1	Pin	-
13	40M7041	1	Snap Ring	-
14	AL179901	1	Push Pull Cable	-
14	AL179902	1	Push Pull Cable	(W/ Hydraulic Cab Suspension (W/ HCS))

BOWDEN CABLES FOR 6-RANGE SHIFT AND PARK LOCK

Нет текстового описания
