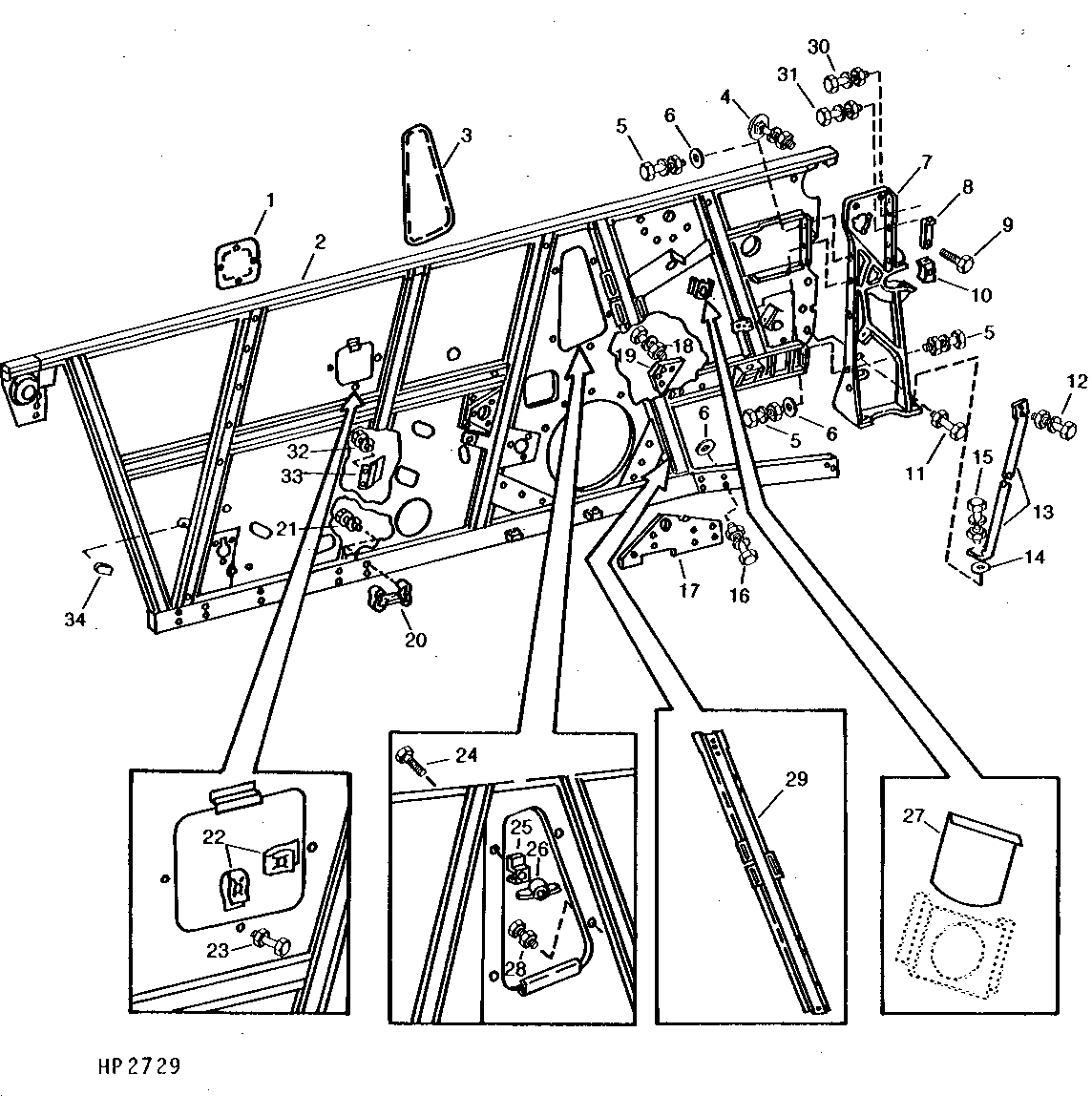

SEPARATOR RIGHT-HAND SIDE SHEET AND FRAME

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H89569	1	Door	INSPECTION
2	AH96628	1	Frame	-
2	AH115226	1	Frame	-
2	AH113747	1	Frame	-
3	H76271	1	Cover	INSPECTION
4	03H1499	1	Bolt	1/2" X 1-1/2"
4	12H301	1	Lock Washer	1/2"
4	14H1040	1	Nut	1/2"
5	19H1815	4	Cap Screw	1/2" X 1-1/4"
5	12H301	4	Lock Washer	1/2"
5	14H1040	4	Nut	1/2"
6	24H1111	6	Washer	17/32" X 1-1/16" X 0.090"
7	H117704	1	Post	(SUB FOR H92437 AND H102566)
8	P47415	1	Key	-
8	H102567	1	Key	-
9	19H2020	1	Cap Screw	5/16" X 1/2"
9	12H303	1	Lock Washer	5/16"
10	H10835	1	RETAINER	-
11	10H1028	3	Bolt	3/8" X 1-1/2"
11	12H304	3	Lock Washer	3/8"
11	14H812	3	NUT	3/8"
12	19H1777	2	Cap Screw	1/2" X 1-3/4"
12	12H301	2	Lock Washer	1/2"
12	14H1040	2	Nut	1/2"
13	H84041	1	Brace	-
13	AH106294	1	Support	RH
14	24H1184	1	Washer	25/32" X 1-1/4" X 0.105"
15	19H1862	1	Cap Screw	3/4" X 2-1/2"
15	12H236	1	Lock Washer	3/4"
15	14H794	1	Nut	3/4"
16	19H1868	4	CAP SCREW	1/2" X 3-3/4"
16	14H1040	8	Nut	1/2"
17	H101586	1	Plate	-
18	19H1731	4	Cap Screw	3/8" X 1"
18	12H304	4	Lock Washer	3/8"
18	14H812	4	NUT	3/8"
19	H82545	1	Gusset	-
20	H83115	3	Spacer	-
21	19H2668	4	Cap Screw	1/2" X 3-1/2"
21	14H1040	4	Nut	1/2"
22	BP13712	3	Nut	SPEED (SUB FOR P41706)
23	19H1227	3	Cap Screw	1/4" X 1/2"
23	12H302	3	Lock Washer	1/4"
24	03H1540	5	Bolt	5/16" X 3/4"
25	P47159	5	Clip	-
26	14H819	5	Wing Nut	5/16"
27	H89544	1	Angle	INSPECTION
28	03H1540	1	Bolt	5/16" X 3/4"
28	12H303	1	Lock Washer	5/16"
28	14H785	1	Nut	5/16"
29	AH115448	1	Bracket	(ASSEMBLY)
30	19H1815	1	Cap Screw	1/2" X 1-1/4"
30	12H301	1	Lock Washer	1/2"
30	14H1040	1	Nut	1/2"
31	03H1746	1	Bolt	1/2" X 1-1/4"
31	12H301	1	Lock Washer	1/2"
31	14H1040	1	Nut	1/2"
32	H65108	2	Screw	SELF-TAPPING
33	AH118212	1	Bracket	(HARVESTFLO)
34	H128077	1	Plug	-

SEPARATOR RIGHT-HAND SIDE SHEET AND FRAME
