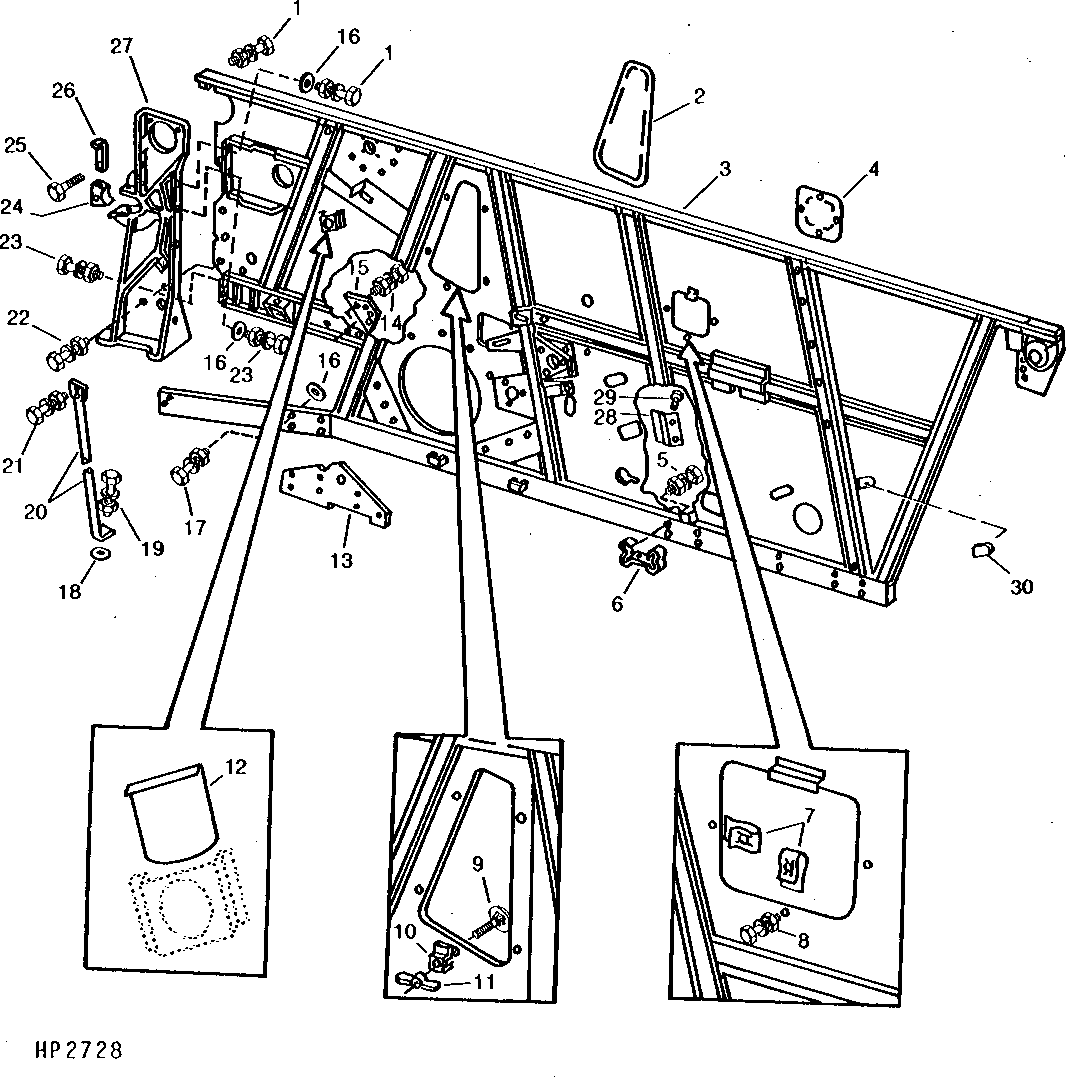

SEPARATOR LEFT-HAND SIDE SHEET AND FRAME

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	2	Lock Washer	1/2"
1	19H1815	2	Cap Screw	1/2" X 1-1/4"
1	14H1040	2	Nut	1/2"
2	H76271	1	Cover	INSPECTION
3	AH113748	1	Frame	(SUB FOR AH96629)
3	AH115227	1	Frame	-
4	H89569	1	Door	-
5	19H2668	4	Cap Screw	1/2" X 3-1/2"
5	14H1040	4	Nut	1/2"
6	H83115	3	Spacer	-
7	BP13712	3	Nut	SPEED (SUB FOR P41706)
8	19H1227	3	Cap Screw	1/4" X 1/2"
8	12H302	3	Lock Washer	1/4"
9	03H1540	5	Bolt	5/16" X 3/4"
10	P47159	5	Clip	-
11	14H819	1	Wing Nut	5/16"
12	H89544	1	Angle	INSPECTION
13	H101586	1	Plate	-
14	19H1731	4	Cap Screw	3/8" X 1"
14	12H304	4	Lock Washer	3/8"
14	14H812	4	NUT	3/8"
15	H82546	1	Gusset	-
16	24H1111	6	Washer	17/32" X 1-1/16" X 0.090"
17	14H1040	8	Nut	1/2"
17	19H1868	4	CAP SCREW	1/2" X 3-3/4"
18	24H1184	1	Washer	25/32" X 1-1/4" X 0.105"
19	19H1862	1	Cap Screw	3/4" X 2-1/2"
19	12H236	1	Lock Washer	3/4"
19	14H794	1	Nut	3/4"
20	H84041	1	Brace	-
20	AH106295	1	Support	LH
21	19H1777	2	Cap Screw	1/2" X 1-3/4"
21	12H301	2	Lock Washer	1/2"
21	14H1040	2	Nut	1/2"
22	14H812	3	NUT	3/8"
22	12H304	3	Lock Washer	3/8"
22	10H1028	3	Bolt	3/8" X 1-1/2"
23	19H1721	3	CAP SCREW	1/2" X 1-1/2"
23	12H301	3	Lock Washer	1/2"
23	14H1040	3	Nut	1/2"
24	H10835	1	RETAINER	-
25	19H2020	1	Cap Screw	5/16" X 1/2"
25	12H303	1	Lock Washer	5/16"
26	P47415	1	Key	-
26	H102567	1	Key	-
27	H102565	1	Post	(SUB FOR H92436)
28	AH118212	1	Bracket	-
29	H65108	2	Screw	SELF-TAPPING
30	H128077	1	Plug	(HARVESTFLO)

SEPARATOR LEFT-HAND SIDE SHEET AND FRAME
