Reflectors, Tail, Warning and Grain Tank Lights

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH98901	1	Headlight	Lamp
2	AM31282	1	Lamp	18 WATTS
3	R48293	1	Bezel	-
3	R42689	1	Bezel	-
5	19H1792	1	Cap Screw	1/2" X 1"
5	12H301	1	Lock Washer	1/2"
5	14H1040	1	Nut	1/2"
6	AH100022	1	Bracket	-
7	24H1111	1	Washer	17/32" X 1-1/16" X 0.090"
8	H145112	1	Clamp	SUB FOR R67377
9	19H1974	1	Cap Screw	1/2" X 2-3/4"
9	12H301	1	Lock Washer	1/2"
10	AH164498	2	LAMP	Warning SUB FOR AT23467
10	AD2062R	1	Bulb	12 VOLT
11	14H865	1	Nut	1/2"
12	12H292	1	Lock Washer	1/2"
13	N10213	1	Lock Nut	-
14	H83387	1	Shield	-
15	-	1	Part 21	Tail Lamp
16	AB2599R	1	Bulb	12 VOLT, (SERVICED IN PKG. OF 10)
17	H81071	4	Gasket	-
18	AH80597	1	Tail Lamp	Red SUB FOR H81069
19	19H2036	1	Cap Screw	1/4" X 7/8"
19	12H297	1	Lock Washer	1/4"
20	AH80597	1	Tail Lamp	-
21	H83789	3	Channel	Reflector
22	-	1	Part 29	Reflector
23	AH80595	1	Reflector	SUB FOR H81067
24	19H2036	4	Cap Screw	1/4" X 7/8"
25	AH80595	3	Reflector	Red
26	24H1287	2	Washer	9/32" X 5/8" X 0.065"
27	19H1914	2	Cap Screw	1/4" X 1"
28	AXE84599	1	Wiring Harness	Jumper Harness, Service Light USE WITH CXT17293
29	57M7307	1	Electrical Connector Assy	-
29	57M10772	1	Elec. Connector Cable Seal	Cavity B
29	57M9219	2	Elec. Connector Seal	Cavity A, C
29	57M7285	2	Elec. Connector Terminal	Cavity A, C
29	57M7305	1	Elec. Connector Housing	-
30	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
30	57M8022	1	Elec.Connect Locking Device	-
30	57M8639	1	Elec. Connector Housing	-
4A	AH98902	1	Headlight	SUB AH162581 AND AM31282
4B	CXT17293	1	Floodlamp	SUB FOR AH98902, ALSO ORDER AXE84599

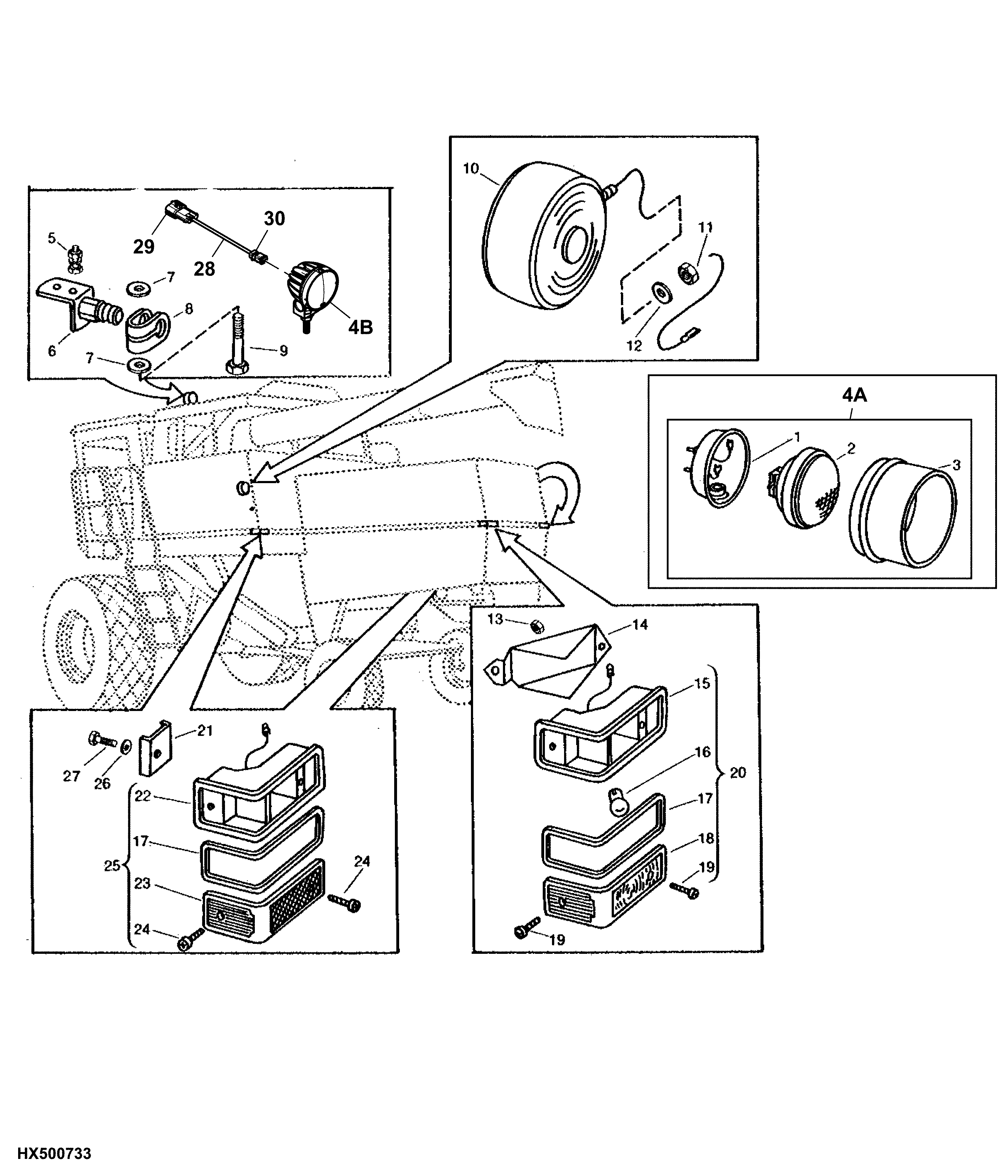

Reflectors, Tail, Warning and Grain Tank Lights
