Rear Hood, Grain Tank, Unloading Auger and Separator, LH Harnesses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T32231	1	Clamp	-
2	AH102714	1	Wiring Harness	GRAIN TANK
3	N10212	1	Self-Locking Screw	-
3	N10213	1	Lock Nut	-
3	24H1136	1	Washer	11/32" X 11/16" X 0.065"
3	AH89557	1	Clip	-
4	AH89557	2	Clip	-
4	24H1136	2	Washer	11/32" X 11/16" X 0.065"
4	N10213	1	Lock Nut	-
5	AH99997	1	Wiring Harness	UNLOADING AUGER
5	AH100372	1	Wiring Harness	UNLOADING AUGER
6	AH89557	1	Clip	-
6	N10217	1	Lock Nut	-
6	24H1287	1	Washer	9/32" X 5/8" X 0.065"
7	H95560	1	GROMMET	-
8	T32231	2	Clamp	-
9	AH99705	2	Wire	-
10	AH89557	5	Clip	-
11	AH118015	1	Wiring Harness	REAR HOOD (SUB FOR AH96516) (ALSO ORDER H121814)
12	AH106144	1	Switch	HYDROSTATIC
13	AH99334	1	Wiring Harness	SEPARATOR (LEFT-HAND)
14	AH96317	5	Clip	(SUB FOR AH89486)
14	14H611	5	Nut	5/16"
15	AH96317	1	Clip	-
16	TY16078	1	Wire	(SUB FOR AH99311) (ALSO ORDER R77489 AND R77488)
17	AH106144	1	Switch	-
17	AH113727	1	Switch	HYDRAULIC
18	AT18988	1	SWITCH	NEUTRAL SAFETY
19	H104418	1	Nut	-
20	AH99637	1	Sensor	GROUND SPEED
21	AH76862	1	Sender	OIL PRESSURE
22	H118427	1	Electrical Connector Assy	22 HOLES
22	R77458	1	Elec.Connect Locking Device	(NOT INCLUDED IN RE11154) KIT
22	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
23	H118417	1	Quick Lock Pin	(SUB Z40862)
24	Z40696	1	Socket	(SUB FOR H118423)
25	H121814	1	Electrical Connector Assy	-
..	PM797NA	1	Kit	(SUB FOR AR84006 OR RE11154)WIRING

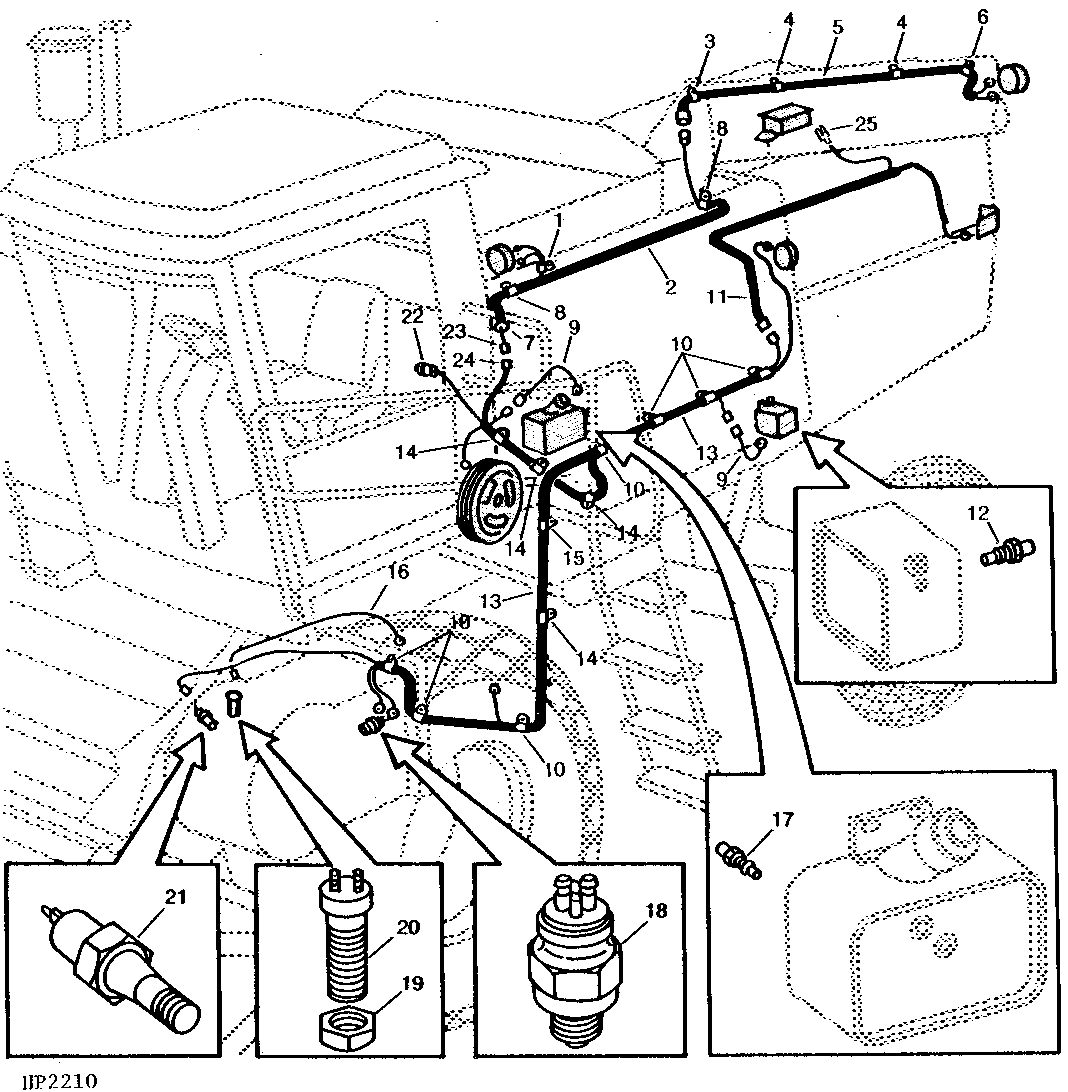

Rear Hood, Grain Tank, Unloading Auger and Separator, LH Harnesses
