Открытый узел

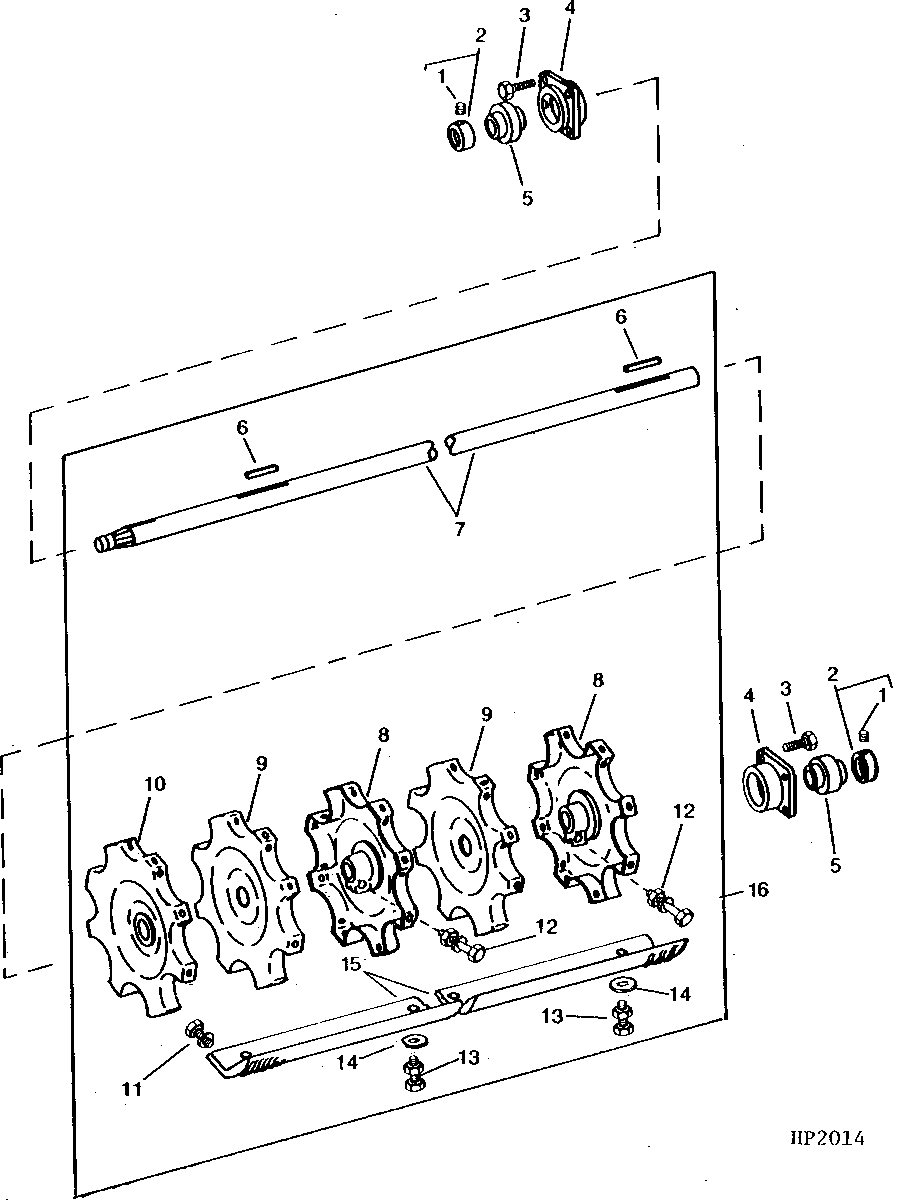

RASP-BAR CYLINDER (DUAL-RANGE CYLINDER DRIVE) (556001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H982	2	Set Screw	7/16" X 7/16"
2	AH108767	2	Eccentric Locking Collar	-
3	19H1732	8	Cap Screw	3/8" X 1-1/4"
3	12H304	8	Lock Washer	3/8"
4	H99149	2	Housing	(SUB H203950)
4	H203950	2	Housing	-
5	AH108768	2	Ball Bearing	-
6	-	2	Part 8	10 MM X 10 MM X 57 MM (3/8" X 3/8" X 2-1/4"), (CUT FROM H64376 IN AH64587) KEY STOCK KIT
7	H110459	1	Drive Shaft	-
8	AH114501	1	Threshing CYL Head (W/HUB)	(RH)
8	AH114502	1	Threshing CYL Head (W/HUB)	(LH)
9	H117614	2	Threshing Cylinder Head	-
10	AH114503	1	Threshing Cylinder Head	-
11	19H2554	40	Cap Screw	3/8" X 5/8", (USE WITH STANDARD RASP BARS)
11	12H304	40	Lock Washer	3/8", (USE WITH STANDARD RASP BARS)
11	19M7402	1	Cap Screw	M10 X 25, (USE WITH METRIC RASP BARS)
12	19H1820	2	Cap Screw	1/2" X 3"
12	14H1040	2	Nut	1/2"
12	12H301	2	Lock Washer	1/2", (SUB FOR P3629H)
13	19H3239	40	Cap Screw	3/8" X 1-1/4", (USE WITH STANDARD RASP BARS)
13	H99923	40	Lock Nut	(USE WITH STANDARD RASP BARS)
13	R42729	40	Washer	(USE WITH STANDARD RASP BARS)
13	19M7783	1	Screw	M10 X 16, (USE WITH METRIC RASP BARS)
13	H135891	1	Lock Nut	M10, (USE WITH METRIC RASP BARS)
14	R42729	40	Washer	-
15	AH161415	2	Rasp Bar	RH (METRIC) (HARDENED) (CONTAINS 2) (SUB FOR AH75104) (ALSO ORDER AH163921) (SUB AH221676)
15	AH161413	2	Rasp Bar	LH (METRIC) (HARDENED) (CONTAINS 2) (ALSO ORDER AH163921) (SUB FOR AH75105) (SUB AH221675)
15	AH161414	2	Rasp Bar	RH (METRIC) (CHROMED) (CONTAINS 2) (ALSO ORDER AH163921) (SUB FOR AH126545) (SUB AH221685)
15	AH126544	2	Rasp Bar	LH (STANDARD) (CHROMES) (CONTAINS 2) (ALSO ORDER AH163921) (SUB FOR AH117650)
15	AH161412	2	Rasp Bar	LH (METRIC) (CHROMED) (CONTAINS 2) (ALSO ORDER AH163921) (SUB AH221684)
16	AH108903	1	Rasp-Bar Cylinder	(HARDENED RASP BARS)
16	AH117624	1	Rasp-Bar Cylinder	(CHROMED RASP BARS)
..	AH163921	3	Hardware Kit	14-PIECE METRIC RASP BAR HARDWARE (INCLUDES (14) 19M7783, (14) 19M4402 AND (14) H135891)

RASP-BAR CYLINDER (DUAL-RANGE CYLINDER DRIVE) (556001 - )

Нет текстового описания
