Открытый узел

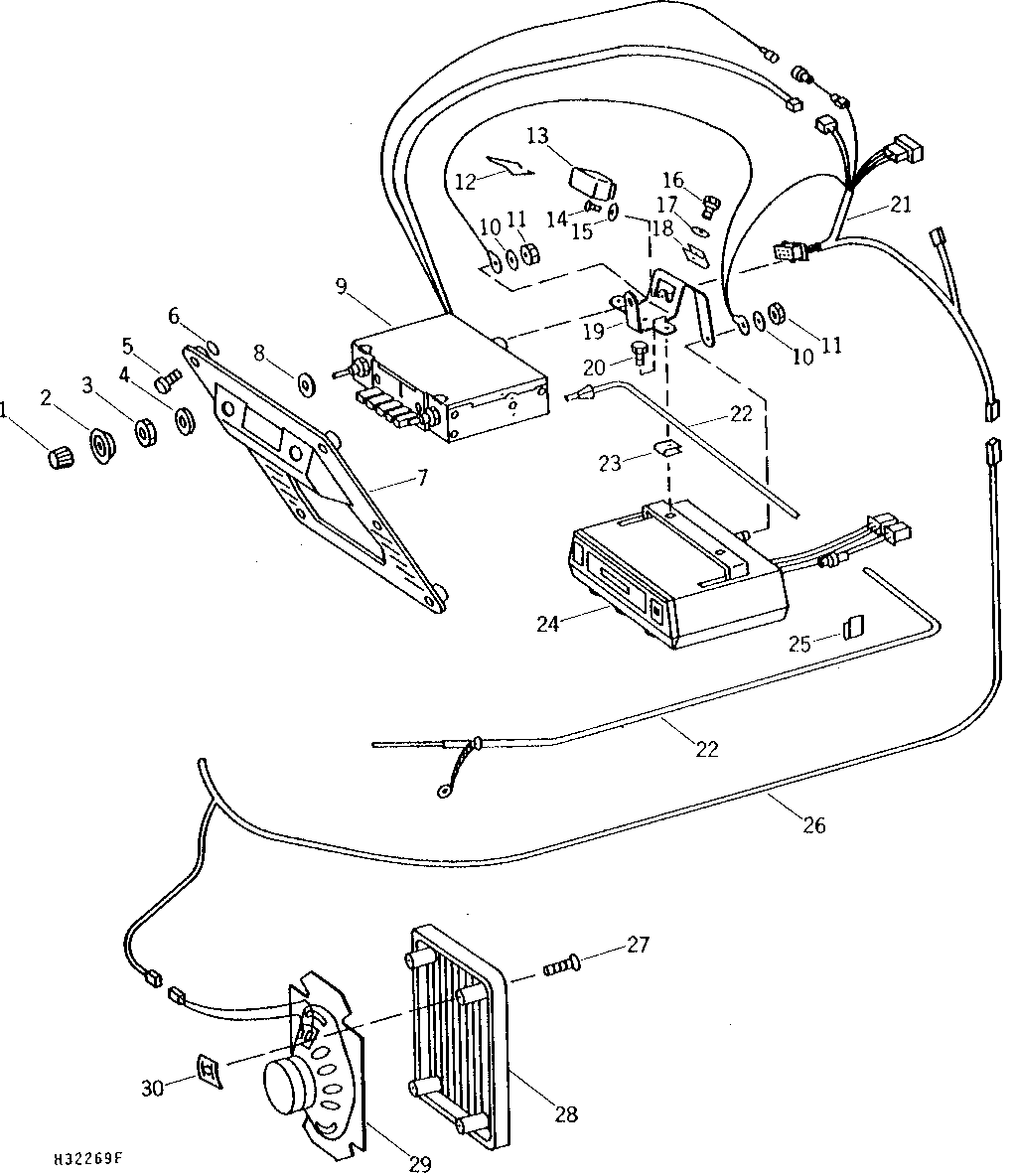

PUSH BUTTON RADIO AND TAPE PLAYER ( - 507050)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR70590	2	KNOB	(KITS AR65050, AR69585, AR69586 AND AR73922) VOLUME AND TUNING (D-SHAFT)
2	R53385	2	KNOB	(KITS AR65050, AR69585, AR69586 AND AR73922) TONE CONTROL
3	R53386	2	Nut	(KITS AR65050, AR69585, AR69586 AND AR73922)
4	24H1227	2	Washer	17/32" X 13/16" X 0.060"
5	37H203	6	Screw	(KITS AR65050, AR69585, AR69586 AND AR73922) (SUB FOR R50499)
6	R34812	6	O-Ring	(KITS AR65050, AR69585, AR69586 AND AR73922)
7	R53398	1	GRILLE	(KITS AR65050, AR66026 AND AR69586) AM-FM RADIO AND TAPE PLAYER
7	R52272	1	GRILLE	AM-FM RADIO (KIT AR69585 AND AR73922)
8	24H1849	2	Washer	(KITS AR65050, AR69585, AR69586 AND AR73922) 17/32" X 1" X 0.036", (SUB FOR D2491R)
9	AR73146	1	RADIO	AM RADIO (KIT AR85833 AND AR73922)
9	AR69588	1	RADIO	AM-FM RADIO (KIT AR85834 AND AR69585)
10	24H1287	2	Washer	9/32" X 5/8" X 0.065"
11	14H786	2	Nut	1/4"
12	R53586	1	Retainer	(KITS AR65050, AR66026 AND AR69586) AM-FM RADIO AND TAPE PLAYER
13	AR60054	1	RELAY	(KITS AR65050, AR66026 AND AR69586) TAPE PLAYER CONTROL
14	21H1176	1	Screw	0.112" X 1/2"
15	14H1000	1	Nut	0.112"
16	19H1948	2	Cap Screw	1/4" X 3/4"
16	19H1227	2	Cap Screw	1/4" X 1/2"
17	24H1288	2	Washer	9/32" X 1" X 1/16"
18	R53677	2	Lock Nut	(KITS AR65050, AR66026, AR69585, AR69586 AND AR73922)
19	R65689	1	BRACKET	AM-FM RADIO (KIT AR69585)
19	R57892	1	BRACKET	AM-FM RADIO AND TAPE PLAYER (KIT AR85834)
19	R53479	1	Bracket	AM RADIO AND TAPE PLAYER (KIT AR85833 AND AR66026)
19	R65690	1	BRACKET	AM RADIO (KIT AR73922)
20	37M7245	2	SCREW	-
21	AR60557	1	Wiring Harness	AM RADIO AND TAPE PLAYER (KIT AR85834 AND AR66026)
21	AR69589	1	Wiring Harness	AM-FM RADIO AND TAPE PLAYER (KIT AR85834)
21	AR73923	1	WIRING HARNESS	AM RADIO (KIT AR73922)
22	AR61608	1	ANTENNA	(KIT AR65636) (INCLUDES R47474 AND 24H1136)
23	R52130	2	Lock Nut	(KITS AR65050, AR66026 AND AR69586)
24	AR96608	1	Kit	(KITS AR65050, AR66026 AND AR69586) (SUB FOR AR60053)
25	R47474	3	Clip	(KIT AR65636 AND AR74832)
26	AR67951	1	WIRING HARNESS	SPEAKERS (KIT AR74832)
27	R81456	8	Screw	(KIT AR74832) (SUB FOR R53678)
28	R61267	2	GRILLE	(KIT AR74832)
29	RE13839	2	SPEAKER	AM-FM RADIO AND TAPE PLAYER (KIT AR74832) (SUB FOR AR74265)
30	R61268	4	LOCK NUT	(KIT AR74832)
..	AR85833	1	Kit	(SUB FOR AR65050) KIT, AM RADIO, PUSH BUTTON, AND TAPE PLAYER
..	AH105035	1	Antenna Kit	KIT, EXTERNAL ANTENNA
..	AR66026	1	Kit	KIT, TAPE PLAYER
..	AR69585	1	KIT	KIT, AM-FM RADIO, PUSH BUTTON
..	AR85834	1	Kit	(SUB FOR AR69586) KIT, AM-FM RADIO, PUSH BUTTON, AND TAPE PLAYER
..	AR73922	1	KIT	KIT, AM RADIO, PUSH BUTTON
..	AR74832	1	KIT	KIT, SPEAKERS RADIO, TAPE PLAYER, AND HARNESS
