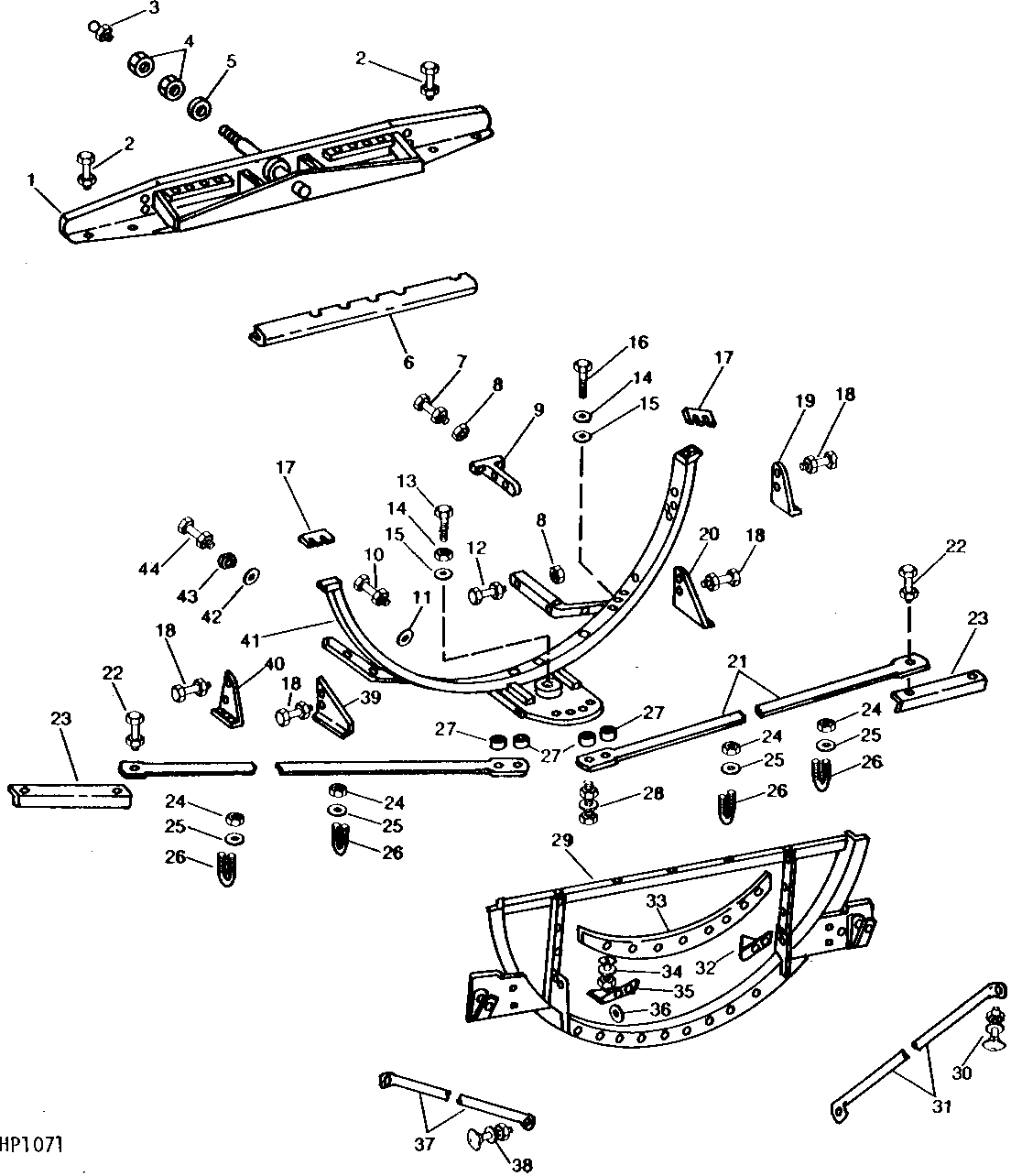

PLATFORM ROCKER, PIVOT PIN, AND BRACES ( - 507050)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH79638	1	Pin	-
2	19H1721	8	CAP SCREW	1/2" X 1-1/2", (USE WITH 12H301 AND 14H1040)
3	JD7759	1	Lubrication Fitting	-
4	14H975	2	Nut	1-1/4"
5	H65322	1	Washer	-
6	H82609	1	Shim	0.76 MM (.030")
7	10H1028	12	Bolt	3/8" X 1-1/2", (USE WITH 12H304 AND 14H812)
8	24H1308	24	Washer	13/32" X 1" X 0.134"
9	H75901	6	Anchor	-
10	19H1914	9	Cap Screw	1/4" X 1", (USE WITH 12H302 AND 14H786)
11	24H1287	9	Washer	9/32" X 5/8" X 0.065"
12	19H1800	12	Cap Screw	3/8" X 1-1/2", (USE WITH 12H304 AND 14H812)
13	19H1708	1	CAP SCREW	5/8" X 1-3/4"
14	AP26398	5	Ball Bearing	-
15	24H1371	5	Washer	21/32" X 1-3/8" X 0.194"
16	19H1734	4	Cap Screw	5/8" X 2", (USE WITH 12H294 AND 14H1039)
17	H83939	1	Strap	1.5 MM (.060")
18	19H1731	8	Cap Screw	3/8" X 1", (USE WITH 12H304 AND 14H812)
19	H65387	1	Bracket	RH, OUTER
20	H81969	1	Bracket	RH, INNER
21	H81968	2	Brace	-
22	19H1721	4	CAP SCREW	1/2" X 1-1/2", (20' PLATFORM) (USE WITH 12H301 AND 14H1040)
23	H84178	2	Brace	END (20' PLATFORM)
24	14H812	8	NUT	3/8"
25	24H1303	8	WASHER	13/32" X 11/16" X 0.065"
26	P41720	4	U-Bolt	-
26	12H304	8	Lock Washer	3/8"
27	28H2531	4	Bushing	0.546" X 0.840" X 7/8"
28	19H1805	4	CAP SCREW	1/2" X 2-1/4", (USE WITH 12H301 AND 14H1040)
29	AH108352	1	Rocker	INNER (SUB FOR AH83778)
30	03H1746	2	Bolt	1/2" X 1-1/4", (USE WITH 12H301 AND 14H1040)
31	H81205	1	Brace	RH
32	H81827	1	Seal	RH
33	H82305	1	Guide	PLATFORM, LOWER
34	21H1024	4	Screw	1/4" X 5/8", (USE WITH 12H302 AND 14H786)
35	H81828	1	Seal	-
36	24H1287	4	Washer	9/32" X 5/8" X 0.065"
37	H81204	1	Brace	LH
38	19H1732	2	Cap Screw	3/8" X 1-1/4", (USE WITH 12H304 AND 14H812)
39	H81970	1	Bracket	LH, INNER
40	H65388	1	Bracket	LH, OUTER
41	AH80037	1	Rocker	OUTER
42	24H1305	6	Washer	13/32" X 13/16" X 0.065"
43	PK641H	6	Washer	-
44	19H1800	6	Cap Screw	3/8" X 1-1/2", (SUB FOR 12H304 AND 14H812)

PLATFORM ROCKER, PIVOT PIN, AND BRACES ( - 507050)
