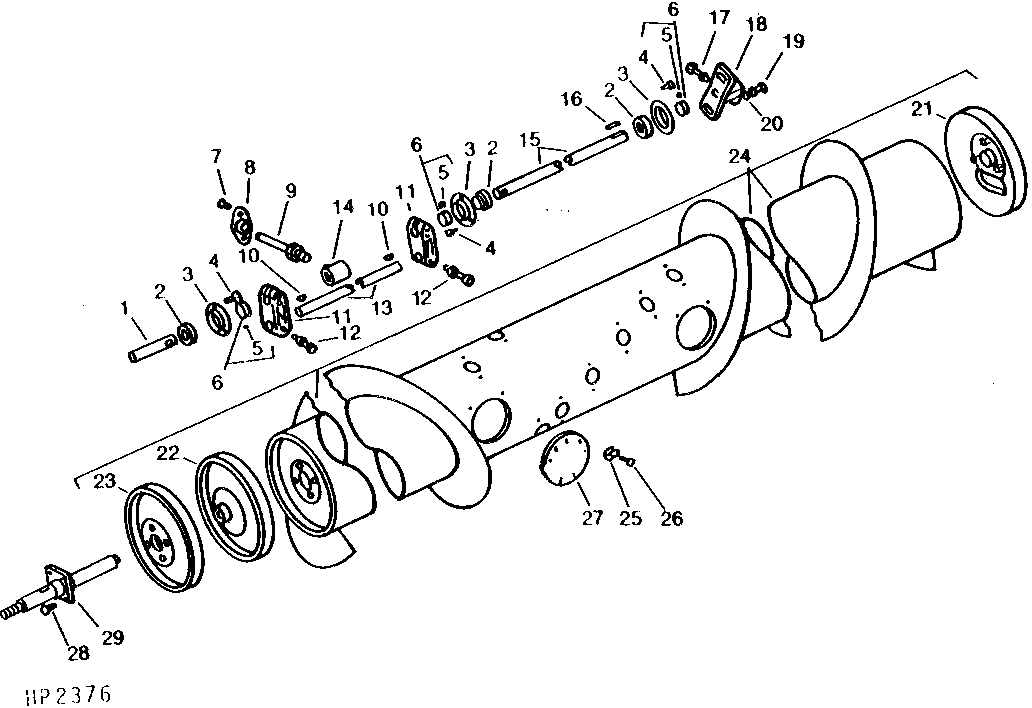

PLATFORM AUGER, SHAFTS, AND FINGERS ( - 507050)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H148930	1	Pin	(SUB FOR P39829)
2	JD8665	3	Ball Bearing	(SUB FOR JD8555)
3	H84555	6	Pressed Flanged Housing	-
4	19H1900	9	Cap Screw	5/16" X 3/4"
4	12H303	9	Lock Washer	5/16"
5	22H897	3	Set Screw	1/4" X 1/4"
6	JD8554	3	Eccentric Locking Collar	-
7	H78354	26	SCREW	SELF-TAPPING
8	H85241	13	Guide	FINGER
9	AH235414	13	Finger	SUB FOR H86054
10	26H77	2	Shaft Key	3/16" X 3/4"
11	H89702	2	Crank	-
12	19H1726	6	Cap Screw	3/8" X 2-1/4"
12	H99923	6	Lock Nut	(SUB FOR H86656)
13	H34592	1	Shaft	-
14	H84549	13	Bearing	-
15	H85234	1	Shaft	18', RH
15	H60200	1	Shaft	20', RH
16	-	1	Part 19	3/16" X 3/16" X 1", (CUT FROM H64373 IN AH64587) KEY STOCK KIT
17	19H1726	1	Cap Screw	3/8" X 2-1/4"
17	14H812	1	NUT	3/8"
17	12H304	1	Lock Washer	3/8"
18	H63076	1	Support	ADJUSTABLE
19	03H1500	2	Bolt	3/8" X 1"
19	12H304	2	Lock Washer	3/8"
19	14H812	2	NUT	3/8"
20	24H1305	2	Washer	13/32" X 13/16" X 0.065"
21	AH87861	1	Hub	RH, OUTER
22	AH83396	1	Hub	LH, INNER
23	AH84326	1	Hub	LH, OUTER
24	AH87853	1	Auger	18', PLATFORM
24	AH87855	1	Auger	20', PLATFORM
25	BP13712	4	Nut	SPEED (SUB FOR P41706)
26	19H1919	4	Cap Screw	1/4" X 5/8"
27	H36018	2	Cover	-
28	19H1815	4	Cap Screw	1/2" X 1-1/4"
28	12H301	4	Lock Washer	1/2"
29	AH63649	1	Drive Shaft	-

PLATFORM AUGER, SHAFTS, AND FINGERS ( - 507050)
