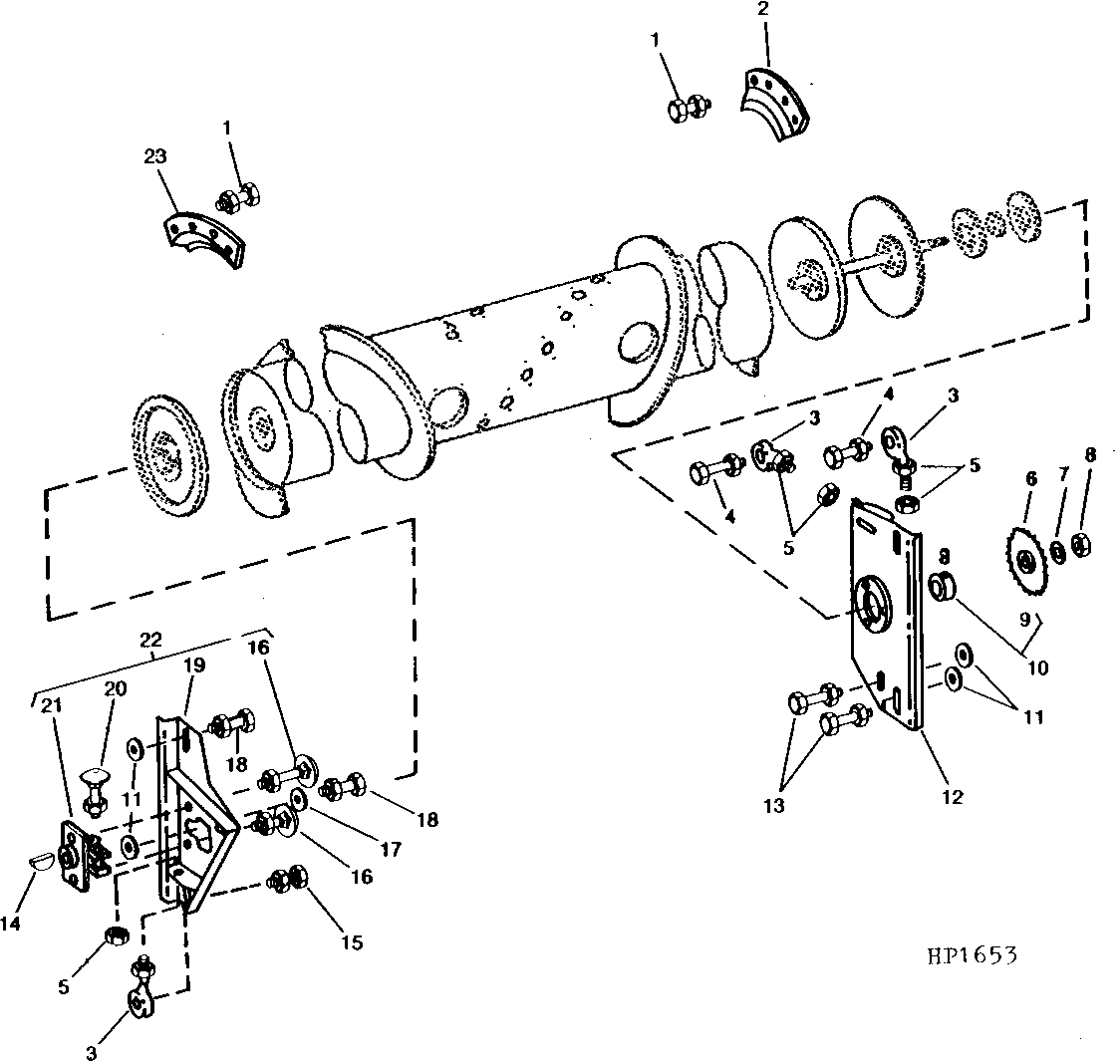

PLATFORM AUGER BRACKETS AND SHIELDS (507051 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N10217	8	Lock Nut	-
1	21H1302	8	SCREW	1/4" X 5/8"
2	Z20384	1	DEFLECTOR	RH (SUB FOR H88554 AND H134763)
3	H87395	3	EYEBOLT	(SUB H147699 AND (2) 14M7275)
4	03H1731	2	Bolt	1/2" X 1-1/2"
4	12H301	2	Lock Washer	1/2"
4	14H1040	2	Nut	1/2"
5	14H1040	6	Nut	1/2"
6	AH87947	1	Chain Sprocket	Z=40, (REGULAR SPEED)
6	AH88802	1	Chain Sprocket	Z=50, (SLOW SPEED)
7	24H1402	1	Washer	25/32" X 1-7/8" X 1/4"
8	14H1086	1	Nut	3/4"
9	22H979	1	Set Screw	3/8" X 3/8"
10	JD8576	1	Eccentric Locking Collar	-
11	24H1111	4	Washer	17/32" X 1-1/16" X 0.090"
12	AH133436	1	Bracket	(SUB FOR AH88838)
13	14H1040	2	Nut	1/2"
13	03H1659	2	Bolt	1/2" X 1"
13	12H301	2	Lock Washer	1/2"
14	26H77	1	Shaft Key	3/16" X 3/4"
15	03H1731	1	Bolt	1/2" X 1-1/2"
15	12H301	1	Lock Washer	1/2"
15	14H1040	1	Nut	1/2"
16	03H1746	2	Bolt	1/2" X 1-1/4"
16	12H301	2	Lock Washer	1/2"
16	14H1040	2	Nut	1/2"
17	H113355	1	Push Nut	(SUB FOR H89623)
18	03H1746	2	Bolt	1/2" X 1-1/4"
18	14H1040	2	Nut	1/2"
18	12H301	2	Lock Washer	1/2"
19	AH153804	1	Bracket	(SUB FOR AH108738)
20	H149440	1	Support	(SUB FOR H96757 OR CM16596)
21	19H1726	1	Cap Screw	3/8" X 2-1/4"
21	12H304	1	Lock Washer	3/8"
21	14H812	1	NUT	3/8"
22	AH97240	1	Bracket	-
23	Z20383	1	DEFLECTOR	LH (SUB FOR H88555 AND H134764)

PLATFORM AUGER BRACKETS AND SHIELDS (507051 - )
