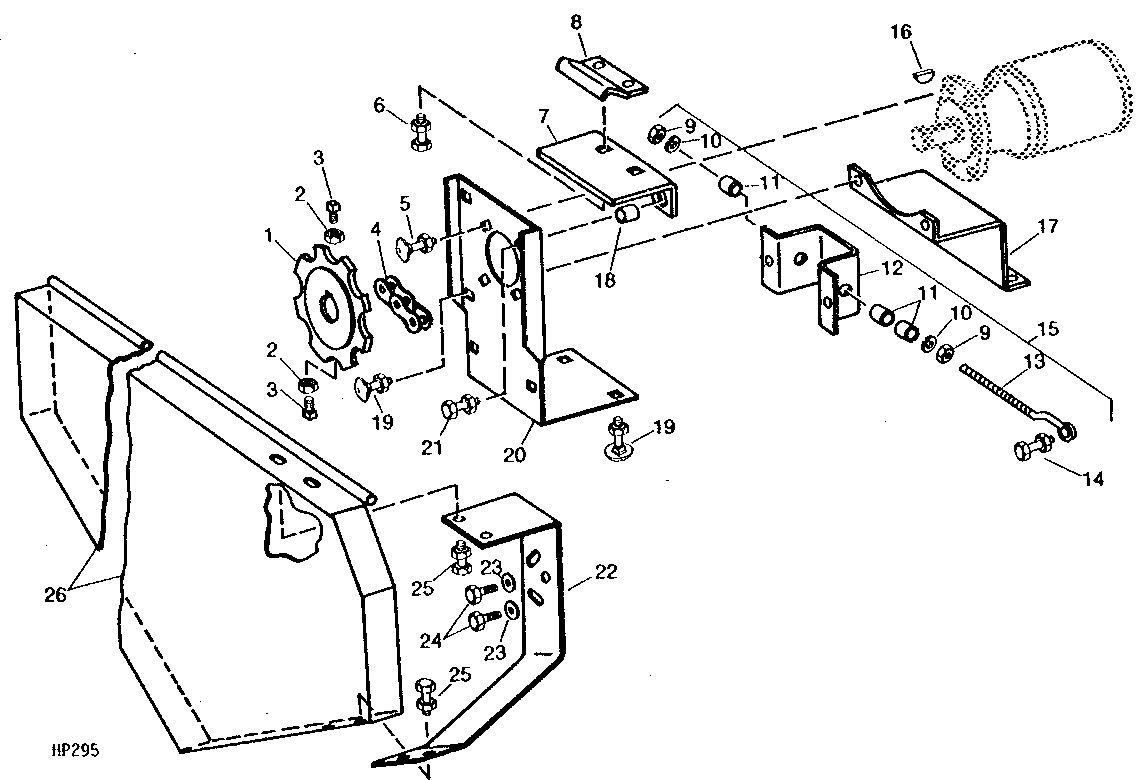

HYDROSTATIC DRIVE REEL MOTOR SUPPORTS, SHIELD, AND SPROCKETS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH77367	1	Chain Sprocket	Z=20, (PICKUP REEL)
1	AH66504	1	Chain Sprocket	Z=30, (SLAT REEL)
2	14H611	2	Nut	5/16"
3	22H834	2	Set Screw	5/16" X 5/8"
4	-	1	Part 5	1-1/4", ROLLER, TYPE A2050, PITCH, 95 LINKS (REEL DRIVE) (ASSEMBLED FROM (2) AP19990, AP19991 AND AP19992)
5	03H1731	4	Bolt	1/2" X 1-1/2"
5	12H301	4	Lock Washer	1/2"
5	14H1040	4	Nut	1/2"
6	03H1524	2	Bolt	5/16" X 1"
6	N10213	2	Lock Nut	-
7	H93569	1	Bracket	-
8	H92600	1	Clip	-
9	14H826	2	Nut	1/2"
10	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
11	H83224	3	Bushing	-
12	H88942	1	Bracket	-
13	H88941	1	Eyebolt	-
14	14H1040	1	Nut	1/2"
14	12H301	1	Lock Washer	1/2"
14	19H3520	1	Cap Screw	1/2" X 3-1/4"
15	H88942	1	Bracket	(ALSO ORDER (3) H83224, H88941, (2) 14H826, 19H3520 AND (2) 24H1111) (SUB FOR AH91498)
16	26H85	1	Shaft Key	1/4" X 1"
17	H83841	1	Bracket	-
18	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
19	03H1500	6	Bolt	3/8" X 1"
19	12H304	6	Lock Washer	3/8"
19	14H812	6	NUT	3/8"
20	H85388	1	Bracket	-
21	03H1495	2	Bolt	3/8" X 1-1/2"
21	N10215	2	Lock Nut	-
22	H93555	1	Bracket	-
23	24H1136	2	Washer	11/32" X 11/16" X 0.065"
24	19H1813	3	CAP SCREW	5/16" X 5/8"
24	12H303	3	Lock Washer	5/16"
25	19H1813	4	CAP SCREW	5/16" X 5/8"
25	N10213	4	Lock Nut	-
26	AH92213	1	Shield	-

HYDROSTATIC DRIVE REEL MOTOR SUPPORTS, SHIELD, AND SPROCKETS
