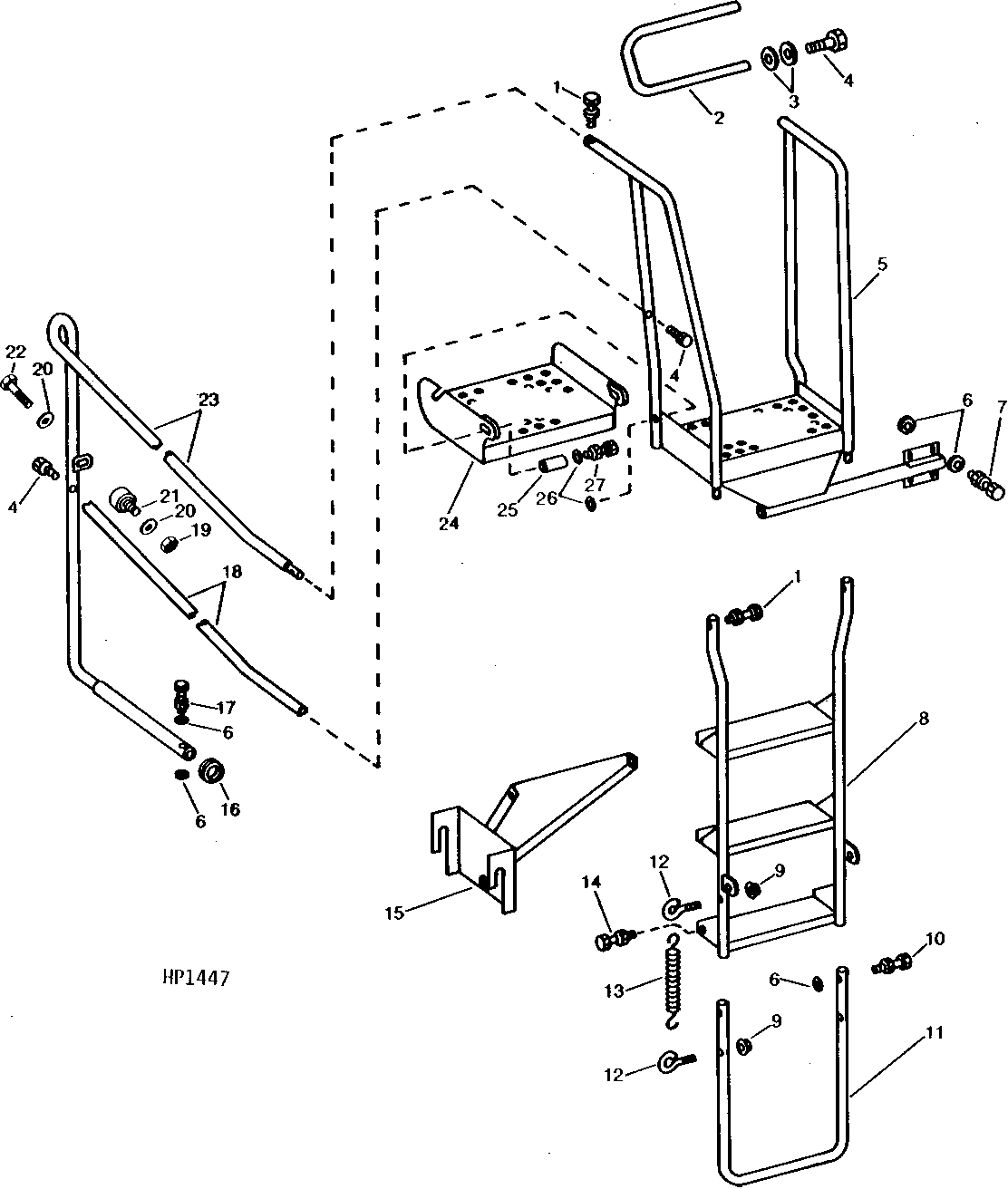

FRONT LADDER, DECK, RAILINGS, AND LEFT-HAND DOOR HANDRAIL

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	3	Lock Washer	3/8"
1	19H1765	3	Cap Screw	3/8" X 1-3/4"
1	14H812	3	NUT	3/8"
2	AH103853	1	Support	(CAB DOOR)
3	24H1313	4	Washer	13/32" X 1-3/4" X 0.065"
4	19H1726	3	Cap Screw	3/8" X 2-1/4"
4	12H304	3	Lock Washer	3/8"
5	AH99271	1	Platform	-
6	24H1305	12	Washer	13/32" X 13/16" X 0.065"
7	14H812	4	NUT	3/8"
7	12H304	4	Lock Washer	3/8"
7	19H1731	4	Cap Screw	3/8" X 1"
8	AH99276	1	Ladder	-
9	H82227	2	Exhaust Cap	-
10	03H2020	2	Bolt	3/8" X 2"
10	H99923	2	Lock Nut	-
11	H84214	1	Tube	-
12	H82226	2	Pivot	-
13	P33389	1	SPRING	-
14	14H812	2	NUT	3/8"
14	12H304	2	Lock Washer	3/8"
14	19H1936	2	Cap Screw	3/8" X 3/4"
15	AH99279	1	Support	-
16	T19254	1	Grommet	-
17	19H1733	1	CAP SCREW	3/8" X 2-1/2"
17	12H304	1	Lock Washer	3/8"
17	14H812	1	NUT	3/8"
18	AH104759	1	Rail	MIDDLE
19	N10213	1	Lock Nut	7.925 mm (5/16")
20	24H1136	2	Washer	11/32" X 11/16" X 0.065"
21	AH96415	1	Support	-
22	19H2020	1	Cap Screw	5/16" X 1/2"
22	12H303	1	Lock Washer	5/16"
23	AH99270	1	Handrail	TOP
24	AH99273	1	Step	-
24	AH107048	1	Step	-
25	28H3117	2	BUSHING	0.546" X 0.840" X 1-5/16"
26	24H1111	4	Washer	17/32" X 1-1/16" X 0.090"
27	19H1974	2	Cap Screw	1/2" X 2-3/4"
27	BP12214	2	Lock Nut	(SUB FOR U12622)

FRONT LADDER, DECK, RAILINGS, AND LEFT-HAND DOOR HANDRAIL
