CYLINDER DRIVE INTERMEDIATE SHAFT (556001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7797	1	Lubrication Fitting	-
2	H96228	1	Screw	-
3	R20135	2	Washer	(SUB FOR P46993)
4	JD7759	1	Lubrication Fitting	-
5	H203974	2	Bearing Housing W/O Bearing	(SUB FOR H119210 OR H110290)
6	AH108813	2	Ball Bearing	-
7	E18993	2	Washer	-
8	H96051	1	Half Sheave	413 MM (16-1/4") DIA
9	19H3239	3	Cap Screw	3/8" X 1-1/4"
9	12H304	3	Lock Washer	3/8"
10	H113749	1	V-Belt	-
11	JD7819	1	Lubrication Fitting	-
12	H110112	1	Pulley	413 MM (16-1/4") DIA
13	AH106296	1	Breather	-
14	JD7806	1	Lubrication Fitting	-
15	AH94850	2	Seal	-
16	H106866	2	Bushing	-
17	H107390	1	Hub	(USE WITH (2) AH94850 AND (2) H106866) (SUB FOR AH111135)
18	H93637	2	Cam	-
19	H96227	1	Washer	-
20	H96232	1	Washer	-
21	AH110307	1	Spring	-
22	AH136497	1	Seal	(SUB FOR AH94854)
23	H107389	1	Ring	-
24	H105359	1	Hub	-
25	26H104	2	Shaft Key	5/16" X 2-1/8"
26	H93655	1	Shaft	-
27	H93641	1	Pulley	229 MM (9-19/64") DIA, (4 GROOVE) OPTIONAL
27	H110253	1	Pulley	295 MM (11-21/32") DIA, (4 GROOVE)
28	19H2458	3	Cap Screw	3/8" X 3"
28	12H304	3	Lock Washer	3/8"
29	JD7839	1	Lubrication Fitting	-
30	19H1756	1	Cap Screw	5/8" X 1-1/2"
31	H96422	1	V-Belt	(4 BANDED) OPTIONAL
31	H110375	1	V-Belt	(4 BANDED)
32	T20217	2	Washer	-
33	T29342	2	Washer	-
34	19H3520	2	Cap Screw	1/2" X 3-1/4", (USE WITH H110290 OR H119210)
34	19M7818	2	Screw	M12 X 80, (USE WITH H203974)
35	19H2644	2	Cap Screw	1/2" X 2-1/2", (USE WITH H110290 OR H119210)
35	19M7815	2	Screw	M12 X 60, (USE WITH H203974)

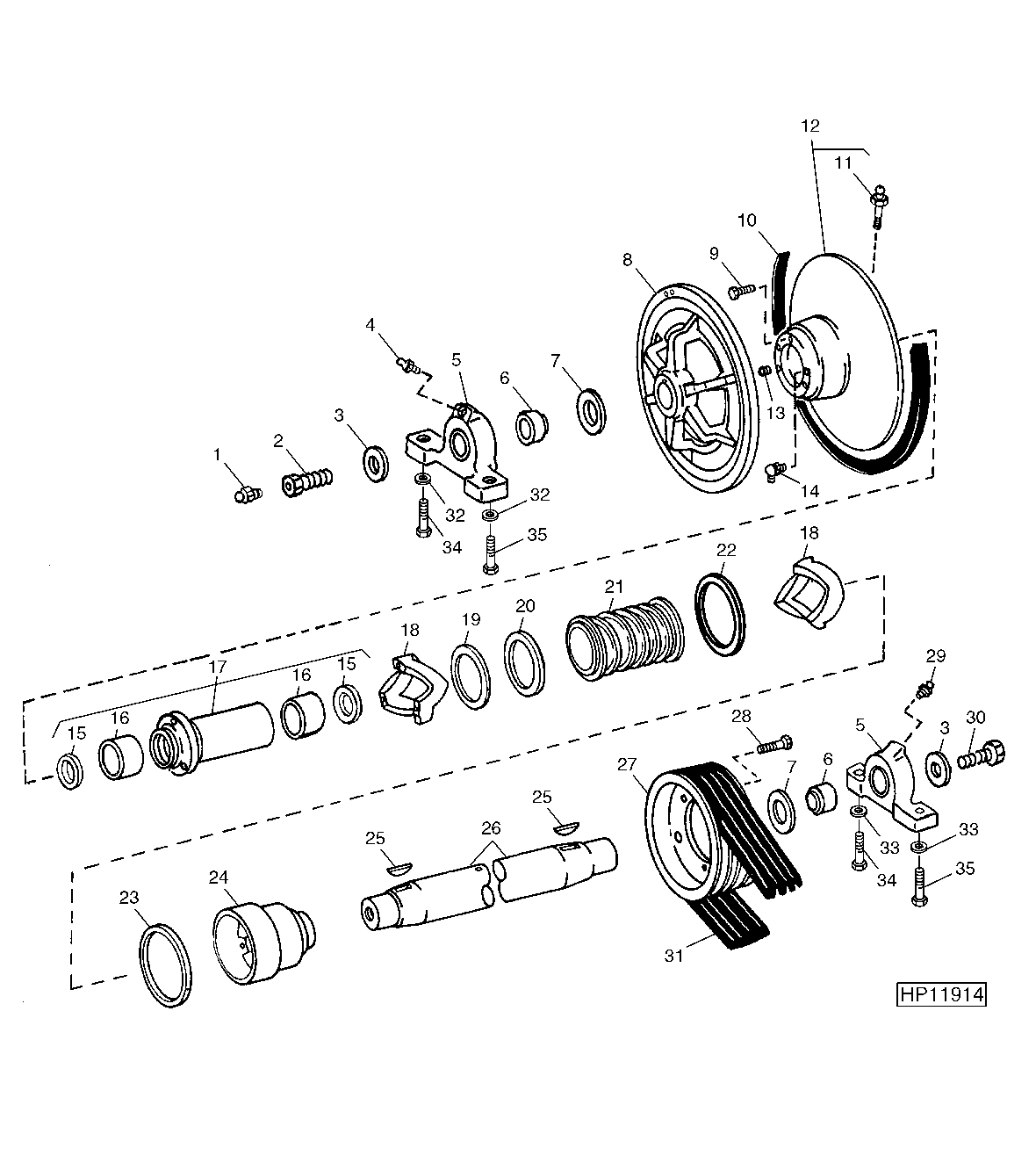

CYLINDER DRIVE INTERMEDIATE SHAFT (556001 - )
