Открытый узел

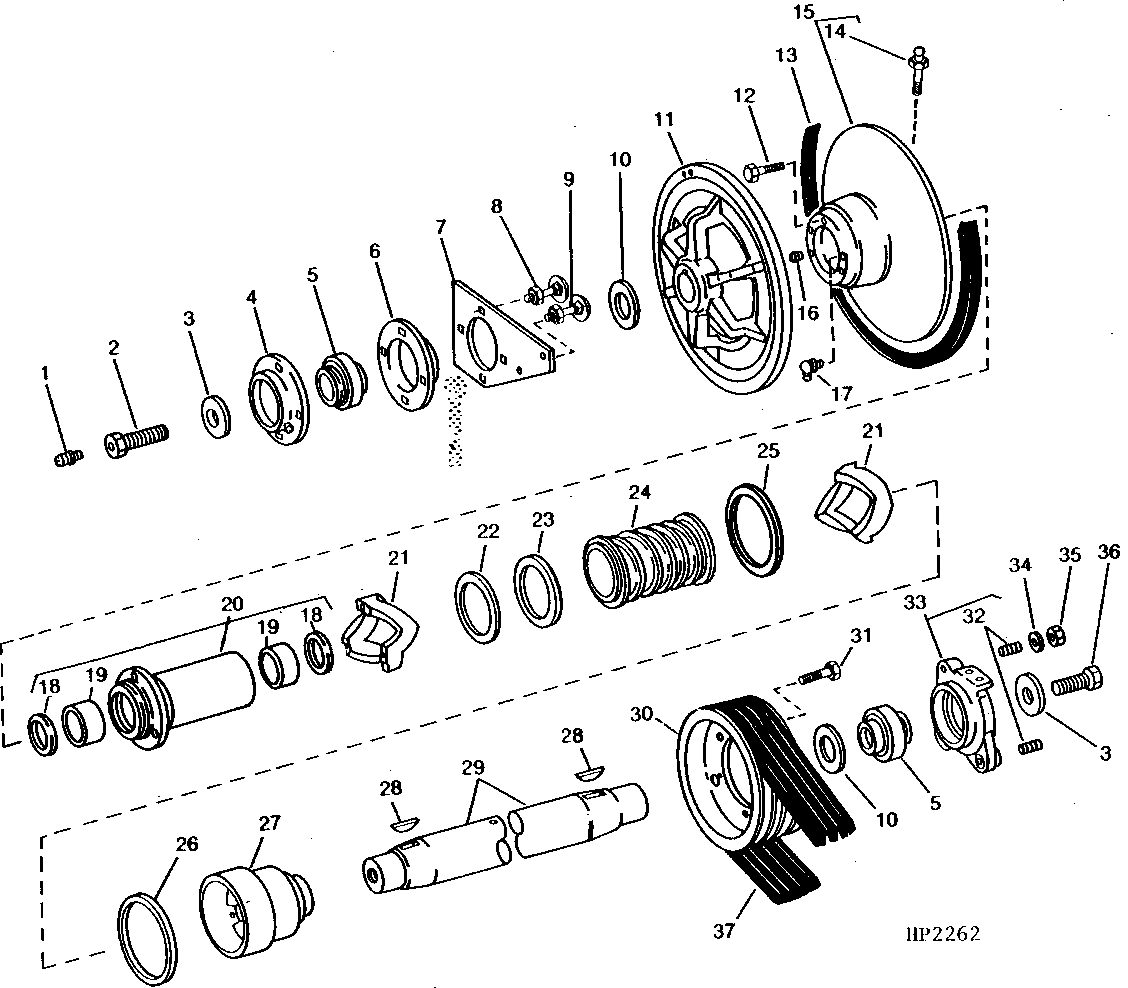

CYLINDER DRIVE INTERMEDIATE SHAFT ( - 556000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7797	1	Lubrication Fitting	-
2	H96228	1	Screw	HOLLOW
3	R20135	2	Washer	THRUST (SUB FOR P46993)
4	AE30794	1	PRESSED FLANGED HOUSING	-
5	JD9434	2	Ball Bearing	SELF-ALIGNING
6	E50822	1	PRESSED FLANGED HOUSING	-
7	H94243	1	Plate	-
8	03H1746	3	Bolt	1/2" X 1-1/4"
8	12H301	3	Lock Washer	1/2"
8	14H1040	3	Nut	1/2"
9	03H1764	1	Bolt	1/2" X 1-3/4"
9	12H301	1	Lock Washer	1/2"
9	14H1040	1	Nut	1/2"
10	E18993	2	Washer	-
11	H96051	1	Half Sheave	413 MM (16-1/4") DIA, FIXED
12	19H3239	3	Cap Screw	3/8" X 1-1/4"
12	12H304	3	Lock Washer	3/8"
13	H113749	1	V-Belt	-
14	JD7819	1	Lubrication Fitting	-
15	H110112	1	Pulley	(SUB FOR H107391 OR H107689)
16	AH106296	1	Breather	-
17	JD7806	1	Lubrication Fitting	-
18	AH94850	2	Seal	-
19	H75777	2	Bushing	-
20	H107390	1	Hub	(SUB FOR AH106431 OR AH111135) (ALSO ORDER (2) AH94850 AND (2) H106866)
21	H93637	2	Cam	-
22	H96227	1	Washer	-
23	H96232	1	Washer	-
24	AH110307	1	Spring	(SUB FOR AH101632 OR AH105371)
25	AH136497	1	Seal	(SUB FOR AH94854)
26	H107389	1	Ring	-
27	H105359	1	Hub	(SUB FOR H93635)
28	26H104	2	Shaft Key	5/16" X 2-1/8"
29	H93655	1	Shaft	-
30	H93641	1	Pulley	237 MM (9-5/16") DIA, (4-GROOVE) (390 TO 1030 RPM)
30	H93646	1	Pulley	191 MM (7-1/2") DIA, (4-GROOVE) (315 TO 830 RPM) (SLOW SPEED)
30	H93643	1	Pulley	191 MM (7-1/2") DIA, (4-GROOVE) (450 TO 1200 RPM)
31	19H2458	3	Cap Screw	3/8" X 3"
31	12H304	3	Lock Washer	3/8"
32	H93639	3	Stud	-
33	AH90589	1	Housing	-
34	24H1850	2	Washer	17/32" X 1-1/4" X 0.180"
35	14H1040	3	Nut	1/2"
35	12H301	3	Lock Washer	1/2"
36	19H1756	1	Cap Screw	5/8" X 1-1/2"
37	H96422	1	V-Belt	CYLINDER, 4-BANDED (390 TO 1030 RPM OR 450 TO 1200 RPM)
37	H96423	1	V-Belt	CYLINDER, 3-BANDED (315 TO 830 RPM) (SLOW SPEED)

CYLINDER DRIVE INTERMEDIATE SHAFT ( - 556000)
