CUTTING PLATFORM ANGLES AND TOP BEAM ( - 507050)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H826	2	Nut	1/2"
1	19H1777	2	Cap Screw	1/2" X 1-3/4"
2	H65716	2	Bushing	-
3	AH66439	1	Structural Tube	18'
3	AH84597	1	Structural Tube	20'
4	24H1111	12	Washer	17/32" X 1-1/16" X 0.090"
5	19H1815	17	Cap Screw	1/2" X 1-1/4"
5	12H301	17	Lock Washer	1/2"
5	14H1040	17	Nut	1/2"
6	H65445	2	Strap	-
7	14H1040	4	Nut	1/2"
7	12H301	4	Lock Washer	1/2"
7	19H1831	4	Cap Screw	1/2" X 2"
8	10H1027	2	Bolt	3/8" X 1-1/4"
8	12H304	2	Lock Washer	3/8"
8	14H812	2	NUT	3/8"
9	24H1308	1	Washer	13/32" X 1" X 0.134"
10	10H1028	1	Bolt	3/8" X 1-1/2", (8 USED, 18'; 12 USED, 20')
10	12H304	1	Lock Washer	3/8"
10	14H812	1	NUT	3/8"
11	H75902	1	Anchor	18', 20', (1 USED, 2 USED)
12	AH66445	1	Angle	18', 20', (1 USED, 2 USED)
13	H65361	2	Angle	-
14	H75901	4	Anchor	-
15	19H1800	8	Cap Screw	3/8" X 1-1/2"
15	12H304	8	Lock Washer	3/8"
15	14H812	8	NUT	3/8"
16	H65374	1	Sill	18'
16	H84182	1	Sill	20'
17	H65362	2	Angle	-
18	14H812	1	NUT	3/8"
18	12H304	1	Lock Washer	3/8"
18	19H1732	1	Cap Screw	3/8" X 1-1/4"
19	19H1731	3	Cap Screw	3/8" X 1"
19	12H304	3	Lock Washer	3/8"
19	14H812	3	NUT	3/8"
20	AH66446	1	Angle	18', 20', (1 USED, 2 USED)
21	H76815	1	Anchor	18', 20', (1 USED, 2 USED)
22	19H1721	2	CAP SCREW	1/2" X 1-1/2"
22	12H301	2	Lock Washer	1/2"
22	14H1040	2	Nut	1/2"
23	E82514	2	Safety Sign	"DANGER" (DRIVESHAFT) (SUB FOR E74026)

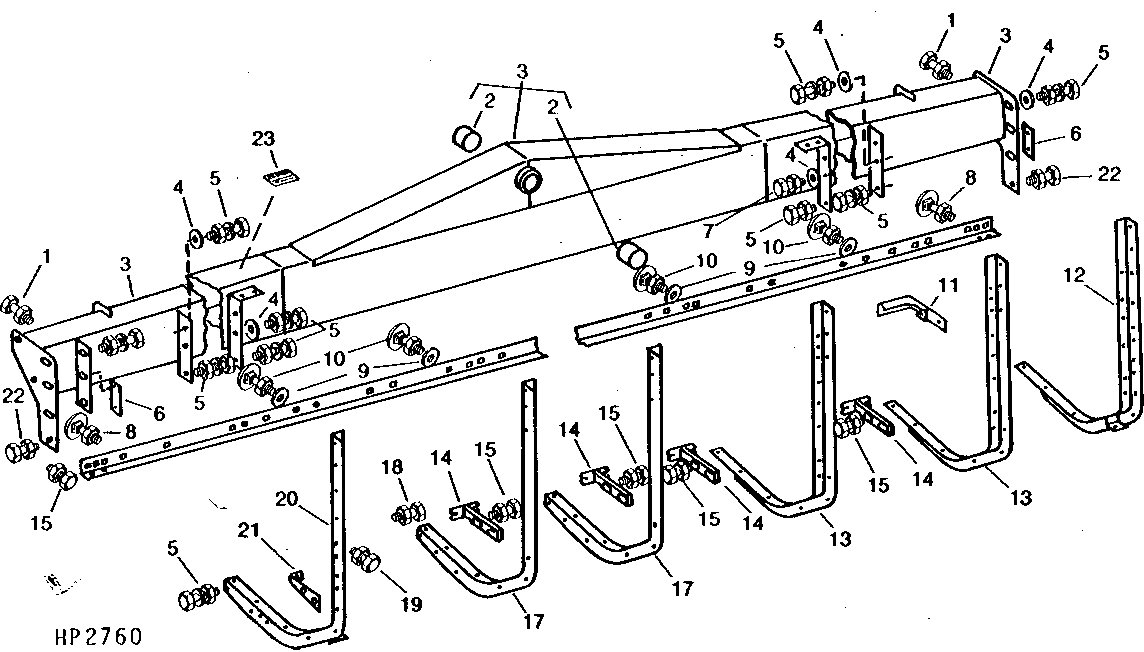

CUTTING PLATFORM ANGLES AND TOP BEAM ( - 507050)
