CORNER FRAME, FAN SHROUD, ENGINE COMPARTMENT REAR SHEET, AND FIREWALL

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH101522	1	Firewall	-
2	AH95353	1	Sheet	REAR
3	AH112179	1	Shroud	-
3	AH89666	1	Shroud	-
4	N10214	12	Self-Locking Screw	-
5	24H1307	2	Washer	13/32" X 1" X 1/16"
6	AH91277	1	Frame	CORNER
7	24H1308	2	Washer	13/32" X 1" X 0.134"
8	H88461	1	Cover	-
9	24H1136	1	Washer	11/32" X 11/16" X 0.065"
10	N10213	3	Lock Nut	-
10	T16464	3	Lock Nut	-
11	AH90893	1	Panel	-
12	14H786	1	Nut	1/4"
12	12H302	1	Lock Washer	1/4"
12	21H1045	1	Screw	1/4" X 2"
13	28H1955	1	Bushing	0.269" X 0.405" X 1-15/32"
14	34H270	1	Spring Pin	5/32" X 1-1/2"
15	-	1	Part 19	(A)
16	H89313	1	Bracket	-
17	19H1813	3	CAP SCREW	5/16" X 5/8"
17	N10213	3	Lock Nut	-
18	24H1136	7	Washer	11/32" X 11/16" X 0.065"
19	24H1287	1	Washer	9/32" X 5/8" X 0.065"
20	03H1268	1	Bolt	5/16" X 3/4"
20	N10213	1	Lock Nut	-
21	AH139345	1	Handle Kit	(SUB FOR H89312)
22	H101017	1	Cover	UPPER FRONT (WITHOUT AIR CONDITIONER)
23	24H1136	2	Washer	11/32" X 11/16" X 0.065"
24	-	1	Part 30	(B) HINGE
25	AH139346	1	Kit	(SUB FOR AH99676 OR AH110420)
26	N71292	2	SELF-LOCKING SCREW	-
27	H99937	1	Bracket	-
28	21H1347	2	Screw	5/16" X 5/8"
28	N10213	2	Lock Nut	-
29	-	4	Part 36	1-1/16" X 1-1/16" X 3", (CUT FROM H88770)
30	-	1	Part 37	29-5/8", (CUT FROM H88769)
31	N71292	2	SELF-LOCKING SCREW	-
31	N10212	2	Self-Locking Screw	-
32	H94605	2	Hinge	-
33	AH92118	2	Plate	-
34	H86523	2	Strap	-
35	24H1305	8	Washer	13/32" X 13/16" X 0.065"
36	AH138218	1	Kit	(SUB FOR H85345)
37	R72659	1	Clamp	(SUB FOR AH83545)
38	AH97077	1	Tube	-
39	H76139	8	Screw	SELF-TAPPING
40	H96673	1	Strap	-
41	24H1685	2	Washer	11/32" X 47/64" X 0.083"
42	N10212	2	Self-Locking Screw	-
43	H101519	1	Angle	-
44	N10213	2	Lock Nut	-
45	T12191	3	Washer	-
..	AH139345	1	Handle Kit	-
..	AH139346	1	Kit	-

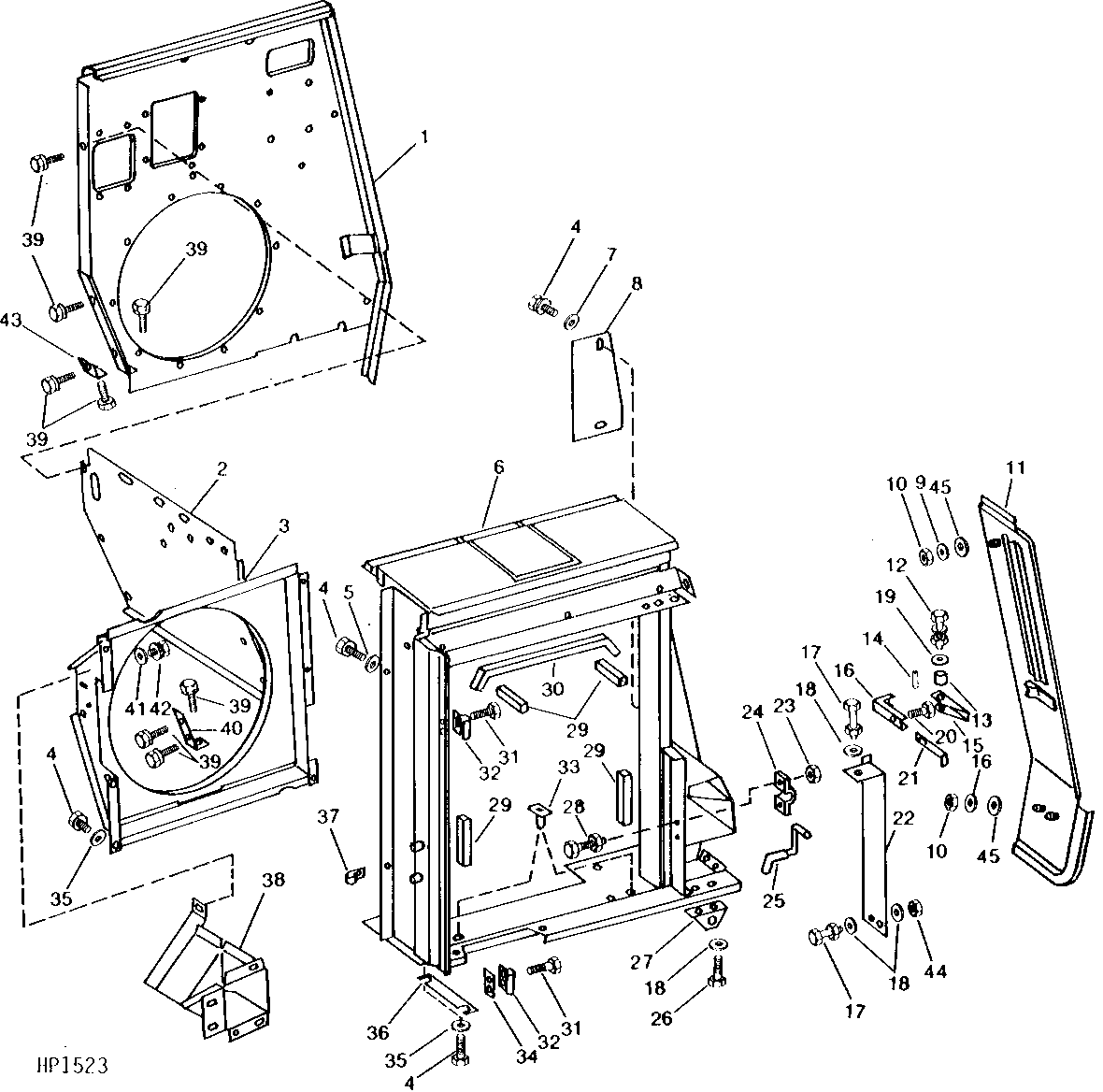

CORNER FRAME, FAN SHROUD, ENGINE COMPARTMENT REAR SHEET, AND FIREWALL
