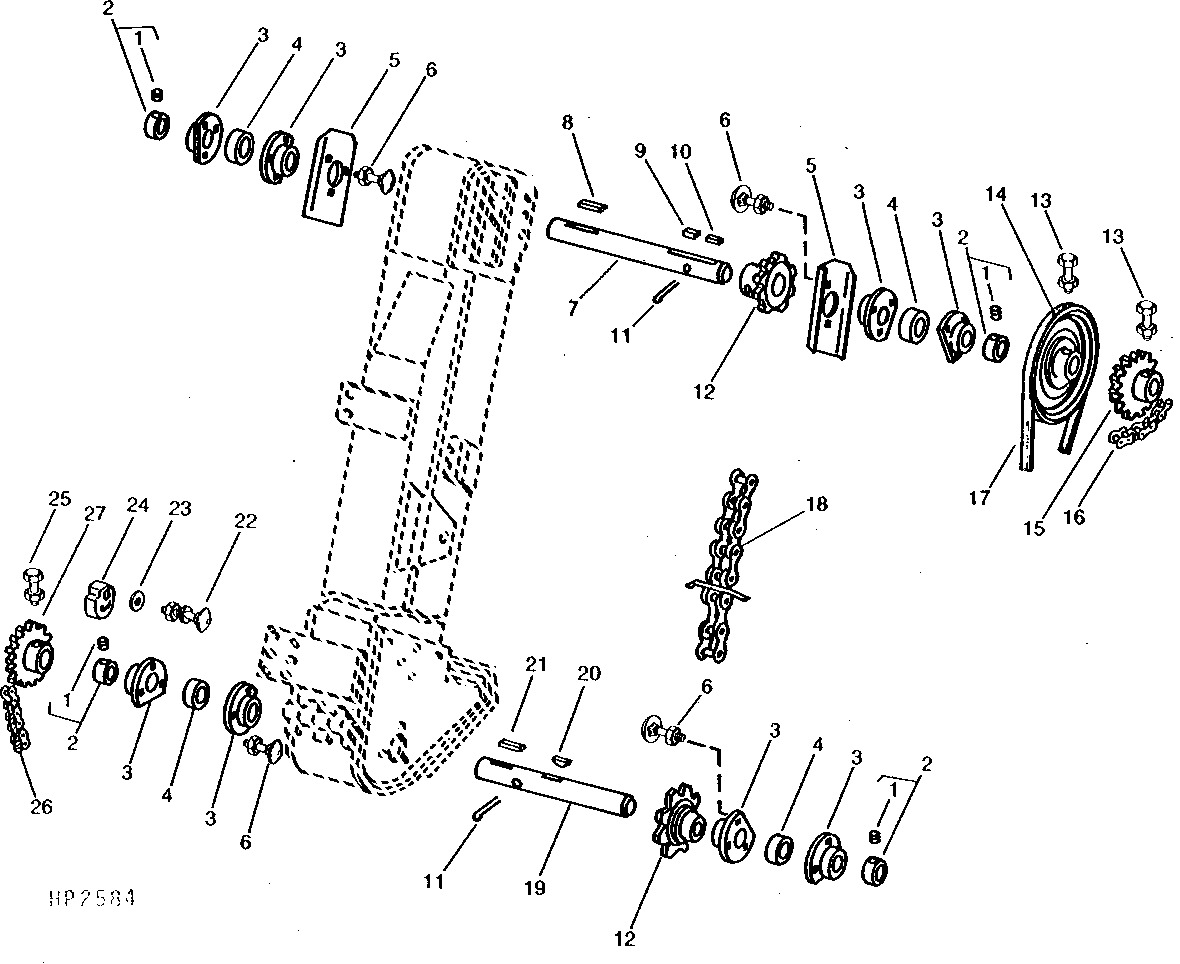

CLEAN GRAIN UPPER ELEVATOR SHAFTS, SHEAVE, AND SPROCKETS ( - 610400)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H897	4	Set Screw	1/4" X 1/4"
2	JD8554	4	Eccentric Locking Collar	-
3	H103264	8	Pressed Flanged Housing	(SUB FOR H87472) THIS APPLICATION
4	JD8665	4	Ball Bearing	-
5	AH80508	2	Bracket	-
6	03H1540	12	Bolt	5/16" X 3/4"
6	12H303	6	Lock Washer	5/16"
6	14H785	12	Nut	5/16"
7	H82948	1	Shaft	-
8	-	1	Part 10	5/16" X 5/16" X 1-1/2", (CUT FROM H64375 IN AH64587) KEY STOCK KIT)
9	-	1	Part 11	1/4" X 1/4" X 1-1/4", (CUT FROM H64374 IN AH64587) KEY STOCK KIT
10	-	2	Part 12	1/4" X 1/4" X 1-3/8", (CUT FROM H64374 IN AH64587) KEY STOCK KIT
11	11H244	2	Cotter Pin	3/16" X 2-1/2"
12	H11340	2	Chain Sprocket	(SUB H108576) THIS APPLICATION
12	H108576	2	Chain Sprocket	Z=8
13	22H853	6	Set Screw	3/8" X 7/8"
13	14H732	6	Nut	3/8"
14	AH75986	1	Pulley	267 MM (10-1/2") DIA
15	AH87146	1	Chain Sprocket	-
16	-	1	Part 20	16 MM (5/8"), DRIVE, ROLLER, TYPE 50, PITCH, 58 LINKS (LOADING AUGER) (ASSEMBLED FROM AP6094H, (3) AP6095H, SW50RLUS, SW50COUS AND SW50OLUS)
17	H23950	1	V-Belt	DRIVE, CLEAN GRAIN ELEVATOR AND LOADING AUGER DRIVE
18	AH87765	25	Chain Link	-
18	C10232	1	Link	(ROLLER)
18	14H786	1	Nut	1/4"
18	19H1948	2	Cap Screw	1/4" X 3/4", (STEEL CLEANING PADDLE)
18	AH86897	50	Bolt	(PADDLE) (REPLACES RIVETS)
18	H86760	1	Paddle	(STEEL CLEANING)
18	AC14974	1	Pin Fastener	-
18	AH137630	1	Chain Link	(SUB FOR C10263) (FOR OFFSET LINK)
18	AC11779	1	Pin Fastener	-
18	C10233	1	Chain Link	(OFFSET) (WITH PIN)
18	AH87757	1	Link Chain	(CA-550 ROLLER CHAIN) (25 PADDLES)
18	H86758	25	Paddle	(RUBBER)
19	H81143	1	Shaft	LOWER
20	26H31	1	Shaft Key	5/16" X 1-1/4"
21	-	1	Part 36	1/4" X 1/4" X 1-1/2", (CUT FROM H64374 IN AH64587) KEY STOCK KIT
22	03H1549	1	Bolt	5/16" X 2-1/4"
22	14H785	1	Nut	5/16"
22	12H303	1	Lock Washer	5/16"
23	24H1136	1	Washer	11/32" X 11/16" X 0.065"
24	H109736	1	Tightener	(SUB FOR H98970)
25	22H836	2	Set Screw	3/8" X 1"
25	14H732	2	Nut	3/8"
26	-	1	Part 44	16 MM (5/8"), DRIVE, ROLLER, TYPE 50, PITCH, 47 LINKS (CLEAN GRAIN LOWER ELEVATOR AND LOWER AUGER) (ASSEMBLED FROM AP6094H, (2) AP6095H, SW50RLUS AND SW50COUS)
27	AH84244	1	Drive Sprocket	-

CLEAN GRAIN UPPER ELEVATOR SHAFTS, SHEAVE, AND SPROCKETS ( - 610400)
