CLEAN GRAIN LOWER ELEVATOR SHAFTS, SPROCKETS, AND CONVEYOR CHAIN ( - 610400)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H897	4	Set Screw	1/4" X 1/4"
2	JD8554	2	Eccentric Locking Collar	-
3	H103264	4	Pressed Flanged Housing	(SUB FOR H87472) THIS APPLICATION
4	JD8665	2	Ball Bearing	-
5	AH80508	2	Bracket	ADJUSTING (SUB FOR AH78549)
6	03H1540	6	Bolt	5/16" X 3/4"
6	12H303	6	Lock Washer	5/16"
6	14H785	6	Nut	5/16"
7	H81113	1	Shaft	UPPER
8	11H244	2	Cotter Pin	3/16" X 2-1/2"
9	H108576	1	Chain Sprocket	(SUB FOR H11340)
10	AH137630	1	Chain Link	(SUB FOR C10263)
10	AH87765	10	Chain Link	-
10	14H786	2	Nut	1/4"
10	19H1948	2	Cap Screw	1/4" X 3/4", (STEEL CLEANING PADDLE)
10	AH86897	20	Bolt	(PADDLE) (REPLACES RIVETS)
10	H86760	1	Paddle	STEEL CLEANING
10	H86758	10	Paddle	RUBBER
10	AC14974	1	Pin Fastener	(SUB FOR C10234)
10	AC11779	1	Pin Fastener	-
10	C10233	1	Chain Link	OFFSET
10	C10232	1	Link	ROLLER
10	AH87755	1	Link Chain	(CA-550 ROLLER CHAIN) (10 PADDLES)
11	19H2334	1	Cap Screw	1/4" X 2-1/2"
11	M40333	1	Lock Nut	-
12	AH84244	1	Drive Sprocket	(SUB AH108799) THIS APPLICATION
12	AH108799	1	Chain Sprocket	Z=18
13	JD8594	2	Eccentric Locking Collar	-
14	H103265	4	Pressed Flanged Housing	-
14	C3994E	4	Pressed Flanged Housing	(SUB H103265) THIS APPLICATION
15	JD8593	2	Ball Bearing	-
16	03H1500	6	Bolt	3/8" X 1"
16	12H304	6	Lock Washer	3/8"
16	14H812	6	NUT	3/8"
17	03H1268	2	Bolt	5/16" X 3/4"
17	12H303	2	Lock Washer	5/16"
18	14H819	2	Wing Nut	5/16"
19	H104060	1	Guard	-
20	H91334	1	Chain Sprocket	Z=8
21	-	1	Part 40	(CUT FROM H64374 IN AH64587) KEY STOCK KIT
22	26H31	1	Shaft Key	5/16" X 1-1/4"
23	AH103594	1	Auger	-
23	AH108800	1	Auger	BOTTOM
24	H81154	2	Fitting	(SOLID)
25	19H1900	4	Cap Screw	5/16" X 3/4"
25	12H303	4	Lock Washer	5/16"
25	14H785	4	Nut	5/16"
26	H125875	1	Cover	(SUB FOR H97961 OR H113839)
27	-	1	Part 49	5/8", ROLLER, TYPE 50, PITCH, 58 LINKS (CLEAN GRAIN LOWER ELEVATOR AND LOWER AUGER) (ASSEMBLED FROM AP6094H, (3) AP6095H, SW50RLUS, SW50COUS AND SW50OLUS)
28	H109736	1	Tightener	(SUB FOR H98970)
29	24H1136	1	Washer	11/32" X 11/16" X 0.065"
30	03H1549	1	Bolt	5/16" X 2-1/4"
30	12H303	1	Lock Washer	5/16"
30	14H785	1	Nut	5/16"

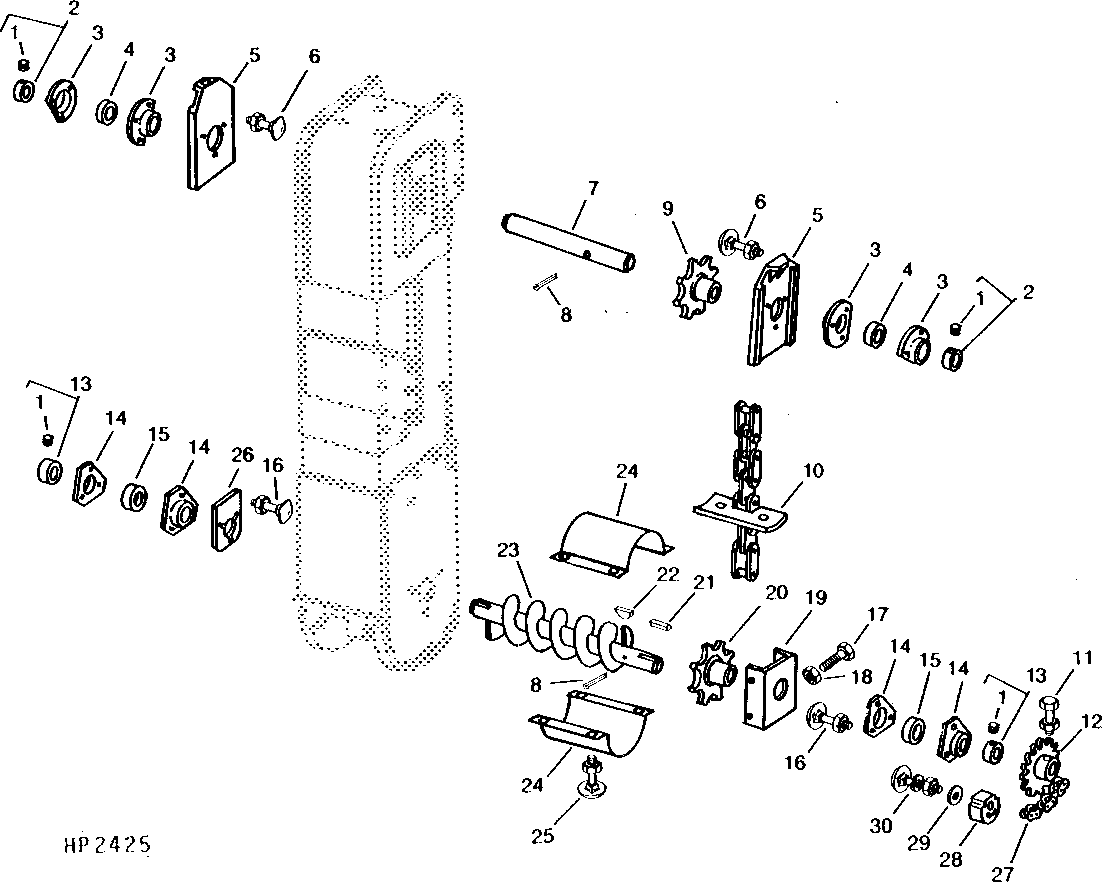

CLEAN GRAIN LOWER ELEVATOR SHAFTS, SPROCKETS, AND CONVEYOR CHAIN ( - 610400)
