CLEAN GRAIN LOWER ELEVATOR HOUSING AND CHUTE ( - 610400)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H303	2	Lock Washer	5/16"
1	14H785	2	Nut	5/16"
1	19H2127	2	Cap Screw	5/16" X 7/8"
2	24H1136	4	Washer	11/32" X 11/16" X 0.065"
3	H82271	1	Strap	-
4	19H2462	2	Cap Screw	3/8" X 3-1/4"
5	24H1305	6	Washer	13/32" X 13/16" X 0.065"
6	14H732	2	Nut	3/8"
7	14H819	1	Wing Nut	5/16"
8	P47159	1	Clip	-
9	03H1524	1	Bolt	5/16" X 1"
10	H77055	1	Door	-
11	19H1919	22	Cap Screw	1/4" X 5/8"
11	14H786	22	Nut	1/4"
11	12H302	22	Lock Washer	1/4"
12	24H1287	28	Washer	9/32" X 5/8" X 0.065"
13	AH103591	1	Hood	-
14	19H1949	3	Cap Screw	5/16" X 2-1/2"
14	12H302	3	Lock Washer	1/4"
14	14H786	3	Nut	1/4"
15	H100745	1	Support	-
16	AH103589	1	Spout	-
16	AH108678	1	Spout	-
17	19H1919	6	Cap Screw	1/4" X 5/8"
17	14H786	6	Nut	1/4"
17	12H302	6	Lock Washer	1/4"
18	03H1893	10	Bolt	1/4" X 1/2"
18	12H302	10	Lock Washer	1/4"
18	14H786	10	Nut	1/4"
19	AH103593	1	Boot	-
20	H101297	1	Lever	-
21	RV810A	1	Pin Fastener	-
22	11H211	1	COTTER PIN	1/8" X 3/4"
23	H35688	1	U-Bolt	-
24	T16464	2	Lock Nut	(SUB FOR M40699)
25	H82713	1	Pin Fastener	-
26	AH77062	1	Door	(SOLID)
26	AH77069	1	Door	(PERFORATED)
27	19H1781	2	CAP SCREW	1/2" X 3-1/2"
27	12H301	2	Lock Washer	1/2"
27	14H1040	2	Nut	1/2"
28	24H1790	2	Washer	17/32" X 1-1/2" X 0.164"
29	H104061	2	Brace	-
30	19H1732	2	Cap Screw	3/8" X 1-1/4"
30	12H304	2	Lock Washer	3/8"
30	14H812	2	NUT	3/8"
31	AH79549	1	Elevator	-

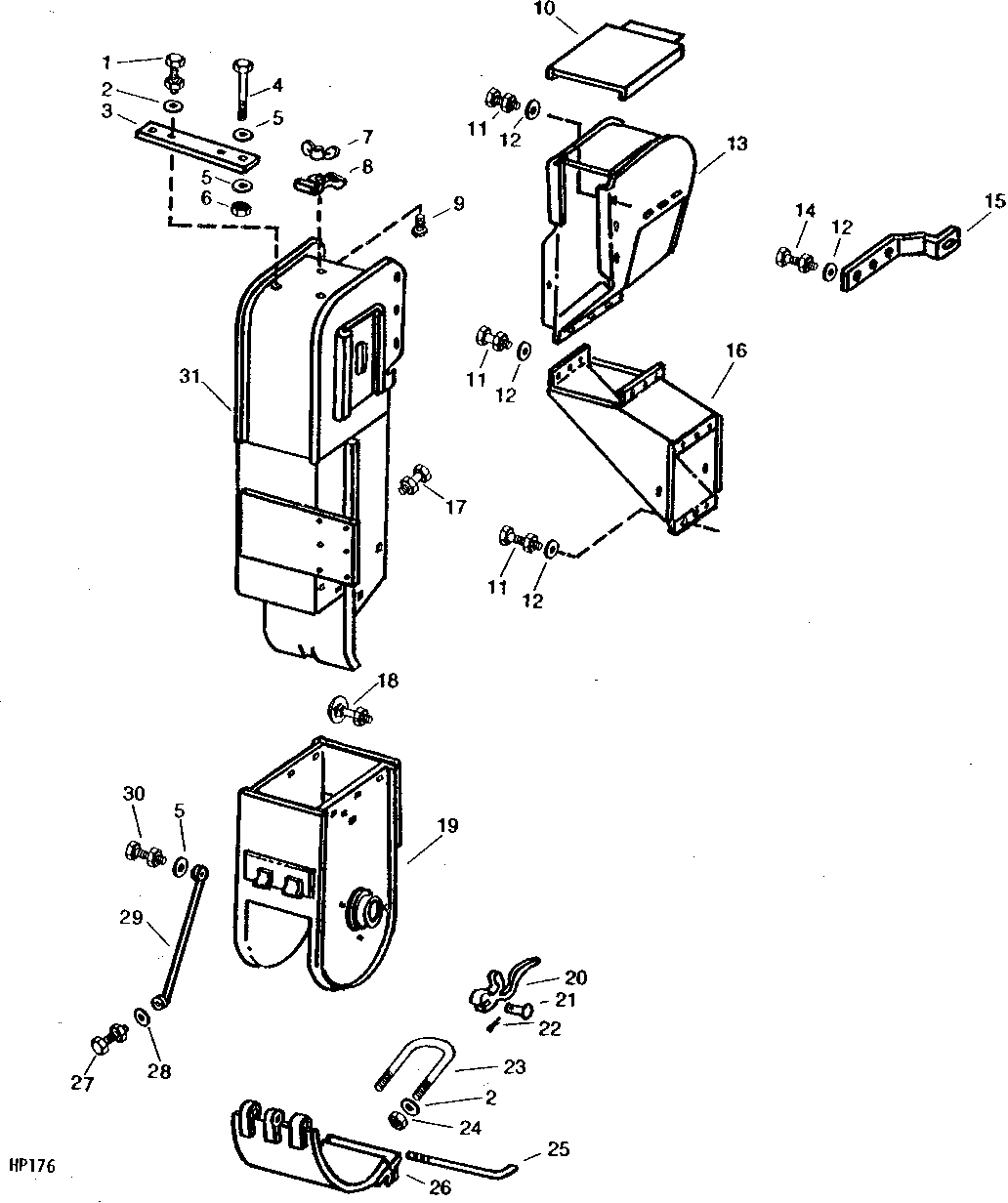

CLEAN GRAIN LOWER ELEVATOR HOUSING AND CHUTE ( - 610400)
